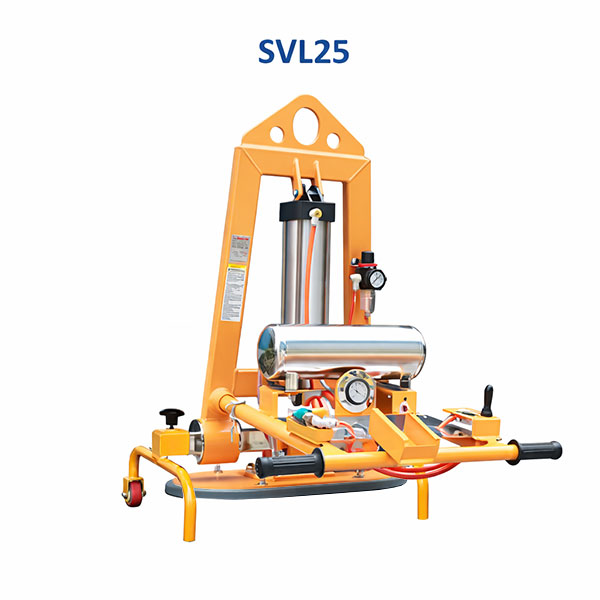

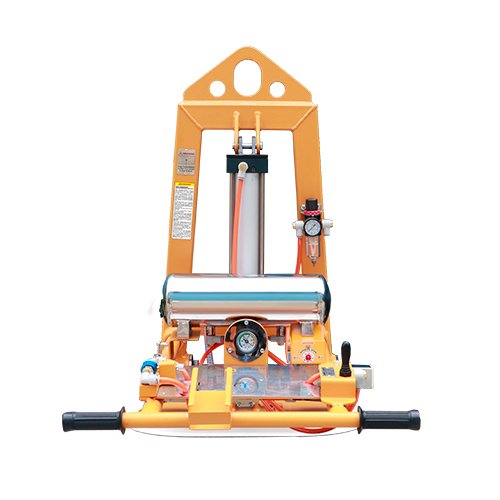

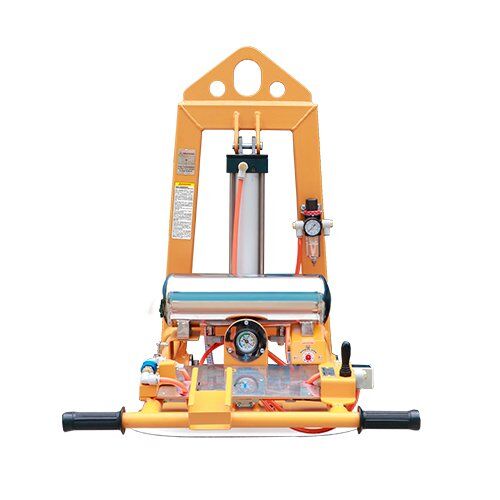

ABACO Stone Vacuum Lifter 25

$1,737.97

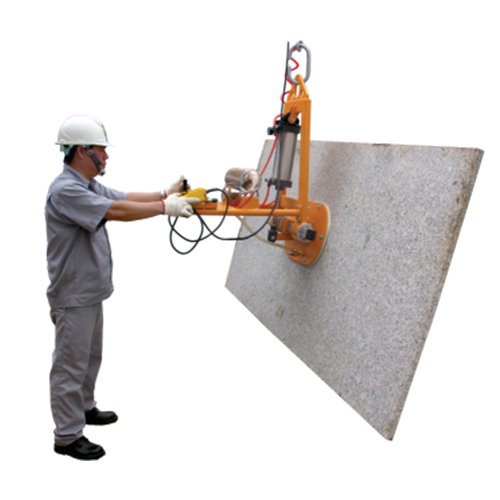

ABACO Stone Vacuum Lifter 25 is designed for lifting, moving, and/or installing a large-size Slab. Two rubber vacuum suction pads protect a slab from scratching during being handled

ABACO Stone Vacuum Lifter 25

ABACO Stone Vacuum Lifter 25 is designed for lifting, moving, and/or installing a large-size Slab. Two rubber vacuum suction pads protect a slab from scratching during being handled.

Among the ABACO Stone Vacuum Lifter 25 main features, we find:

  • Designed for lifting, moving, installing a large-size slab.
  • Superior vacuum lifter will satisfy requirements of customers.
  • The two rubber vacuum suction pads protect a slab from scratching during being handled.
  • The suction pressure maintaining stably ensues a slab not fallen down during working process.
  • It is able to incline vertical from 0o – 90o
  • The minimum dimensions of the stone that are required are 24-3/8″ x 16-3/8″
  • Maximum Lifting Capacity: 550 lbs
  • Smallest lifter with 1 Vacuum Cup
  • Safe
  • Efficient
  • Simple
  • Easy to use

ABACO Stone Vacuum Lifter 25 Technical Specifications

SKUVaccum PadsNet Weight Pounds (kg)Stone Minimum Dimensions Inches (mm)Slab InclinationPSIW.L.L. Pounds (kg)
SVL25195 (43)24 3/8 x 16 3/8 ( 1,320 x 720)0o – 90o0.7 – 0.8 bar551 (250)
Weight95 lbs
Dimensions25 × 50 × 25 in
