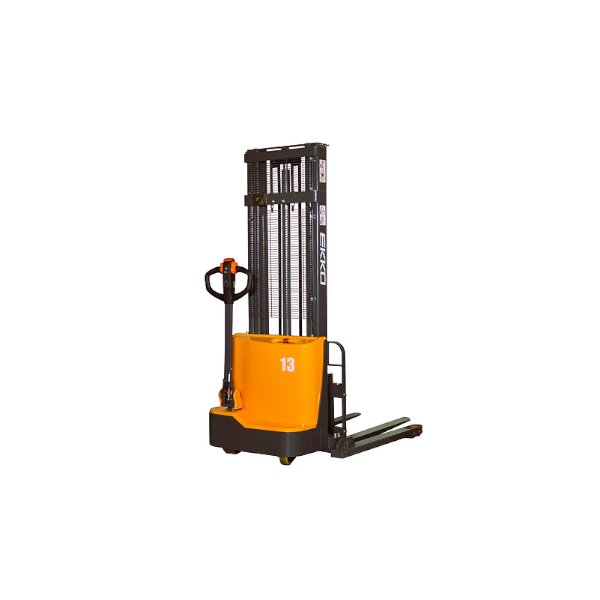

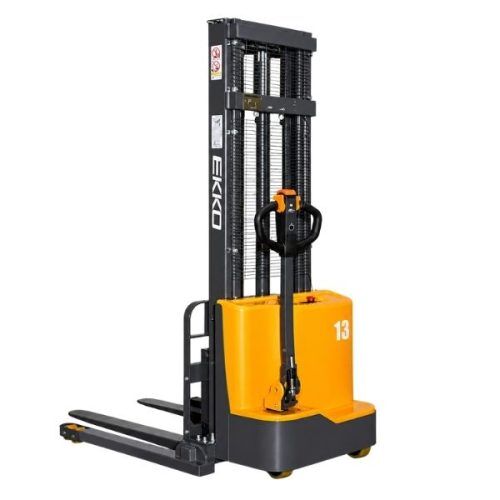

EKKO EB13C-118 Electric Straddle Stacker
The EKKO EB13C-118 Electric Straddle Stacker is engineered to combine the flexibility of a forklift, reach truck, and walkie stacker into one powerful machine. Ideal for loading and unloading trucks, navigating loading docks, organizing stock rooms, and operating across manufacturing floors and warehouses, this unit is built for maximum versatility and performance.
Constructed with high-quality steel and robust components, the EB13C-118 features durable drive systems that can handle demanding terrains, intensive usage, impacts, and sudden directional changes. With the reliability and efficiency you need, this lithium-powered straddle stacker delivers consistent performance across all your material handling operations.
EB13C-118 Electric Straddle Stacker Main Features
- Load Capacity 2800 lb
- Raised Height 118”
- Adjustable Forks 8.6-32.1“
- Adjustable Legs 35.4-51.2”
- Fork Length 45.3“
- Curtis Instrument Controller
- DC Drive Motor
- Battery 24V/85Ah
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
Electric Straddle Stacker Specifications
| Specification | Unit | Value |
|---|---|---|
| Model | EB13C-118 | |
| Load Capacity | lbs | 2800 |
| Maximum Lifting Height | in | 118 |
| Load Center Distance | in | 24 |
| Fork Length | in | 45.3 |
| Single Fork Width | in | 4 |
| Fork Adjustment Width | in | 8.6 32.1 |
| Lowered Fork Height | in | 2.56 |
| Adjustable Leg Width | in | 35.4 51.2 |
| Turning Radius | in | 56.1 |
| Overall Length | in | 73.4 |
| Maximum Overall Width | in | 61 |
| Extended Mast Height | in | 127.6 |
| Lowered Mast Height | in | 75.2 |
| Battery Voltage / Capacity | V / Ah | 24V / 85Ah |
| Internal Charger | V / A | 24V / 10A |
| Lifting Motor | kW | 2.2 |
| Driving Motor | kW | 0.75 |
| Service Weight | lbs | 1345 |
