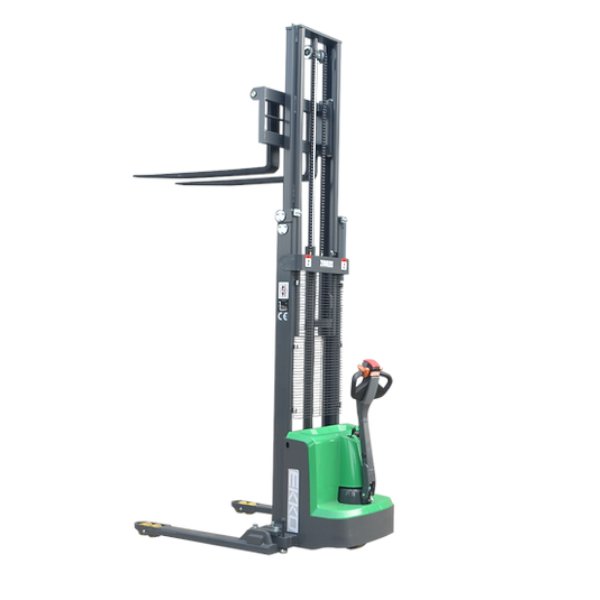

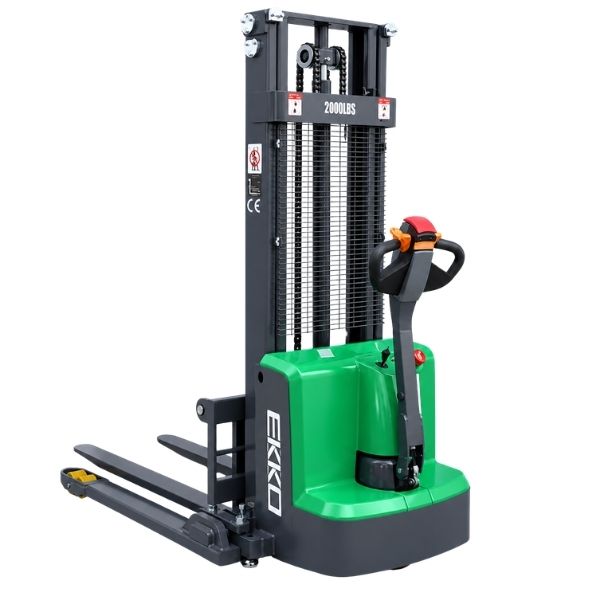

EKKO EB13-138Li Lithium Electric Straddle Stacker
The EKKO EB13-138Li Lithium Electric Straddle Stacker is engineered to combine the flexibility of a forklift, reach truck, and walkie stacker into one powerful machine. Ideal for loading and unloading trucks, navigating loading docks, organizing stock rooms, and operating across manufacturing floors and warehouses, this unit is built for maximum versatility and performance.
Constructed with high-quality steel and robust components, the EB13-138Li features durable drive systems that can handle demanding terrains, intensive usage, impacts, and sudden directional changes. With the reliability and efficiency you need, this lithium-powered straddle stacker delivers consistent performance across all your material handling operations.
EB13-138Li Lithium Electric Straddle Stacker Main Features
- Load Capacity 2800 lb
- Raised Height 138”
- Adjustable Forks 8.3-33.5“
- Adjustable Legs 45.7-59.1”
- Fork Length 45.3“
- Curtis Instrument Controller
- 24V Center Drive Motor
- 24V Lift Motor
- Battery 24V/50Ah Lithium
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- 3 Year Limited Warranty
Lithium Electric Straddle Stacker Specifications
| Specification | Unit | Value |
|---|---|---|
| Model | EB13E-138LI | |
| Load Capacity | lbs | 2800 |
| Maximum Lifting Height | in | 138 |
| Load Center Distance | in | 24 |
| Fork Length | in | 45.3 |
| Single Fork Width | in | 4 |
| Overall Fork Width | in | 8.3 33.5 |
| Lowered Fork Height | in | 2.35 |
| Fixed Leg Length | in | 36.5 |
| Adjustable Leg Width | in | 45.5 59.1 |
| Turning Radius | in | 52.6 |
| Overall Length | in | 70 |
| Maximum Overall Width | in | 61 |
| Extended Mast Height | in | 159.4 |
| Lowered Mast Height | in | 91.7 |
| Battery Voltage / Capacity | V / Ah | 24V / 50Ah (Lithium) |
| Internal Charger | V / A | 24V / 15A |
| Lifting Motor | kW | 2.2 |
| Lift speed (laden/unladen) | mm/s | 92 / 136 |
| Lowering speed (laden/unladen) | mm/s | 112 / 98 |
| Driving Motor | kW | 0.75 |
| Driving speed (laden/unladen) | km/h | 4.0 / 4.2 |
| Service Weight | lbs | 1365 |
