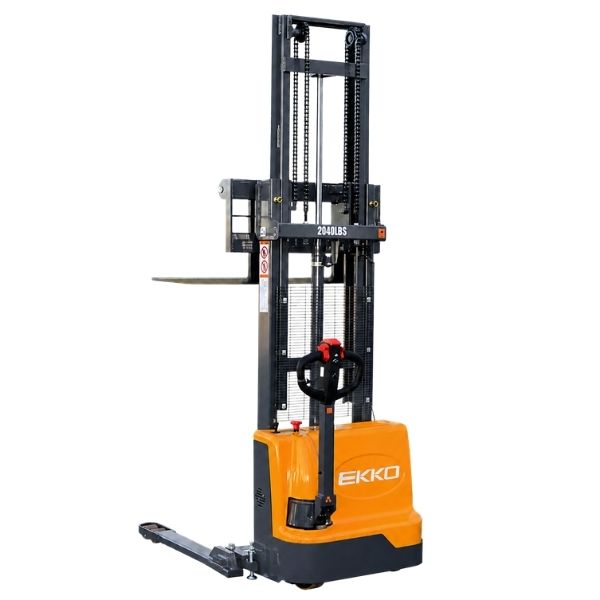

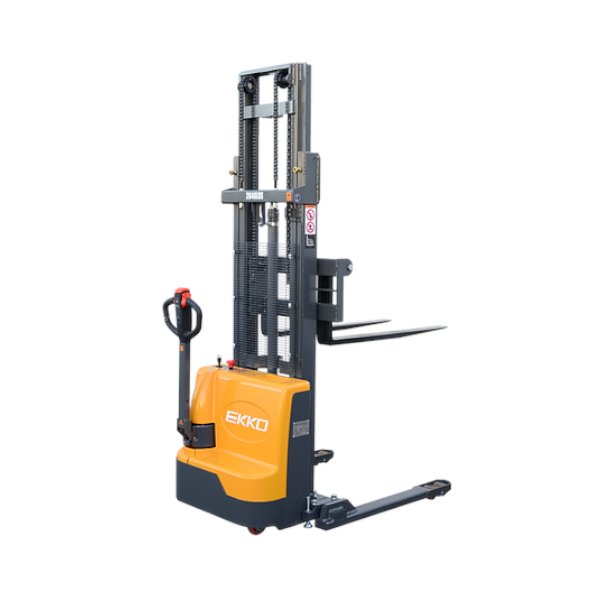

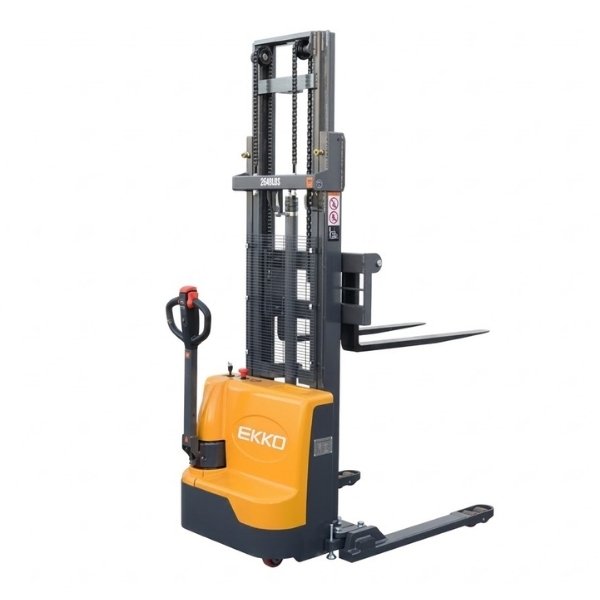

EKKO EB12EA Electric Straddle Stacker
The EKKO EB12EA Electric Straddle Stacker combines the versatility of a forklift, reach truck, and walkie stacker, delivering an all-in-one solution for your material handling needs. Perfect for loading and unloading trucks, navigating loading docks, organizing stock rooms, and operating on manufacturing floors and in warehouses, this stacker ensures optimal efficiency across all environments.
Built with high-quality steel and precision-engineered components, the EB12EA is equipped with robust, durable drives that can withstand varied terrains, heavy usage, impacts, and directional changes. This electric straddle stacker provides reliable and confident performance for any application, day in and day out.
EB12EA Electric Straddle Stacker Main Features
- Load Capacity 3000 lb
- Raised Height 145.67″ (12.13ft)
- Adjustable Forks 8.3-33.5″
- Adjustable Legs 45.7-59.1″
- Fork Length 45.3″
- Curtis Controller
- 24V AC Drive Motor 1500W
- 24V Lift Motor
- Internal Charger
- Battery 2*12V/120Ah Included
- Polyurethane Wheels

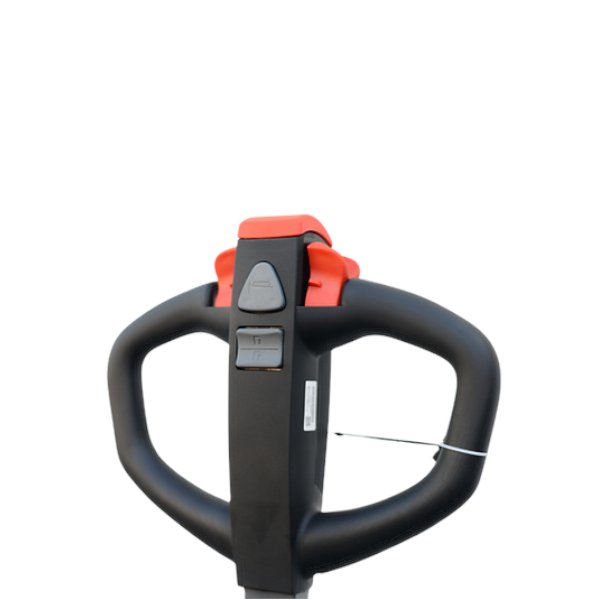

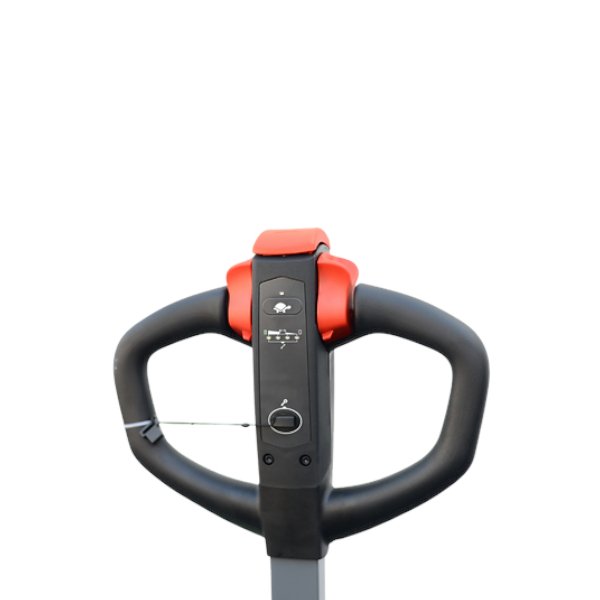

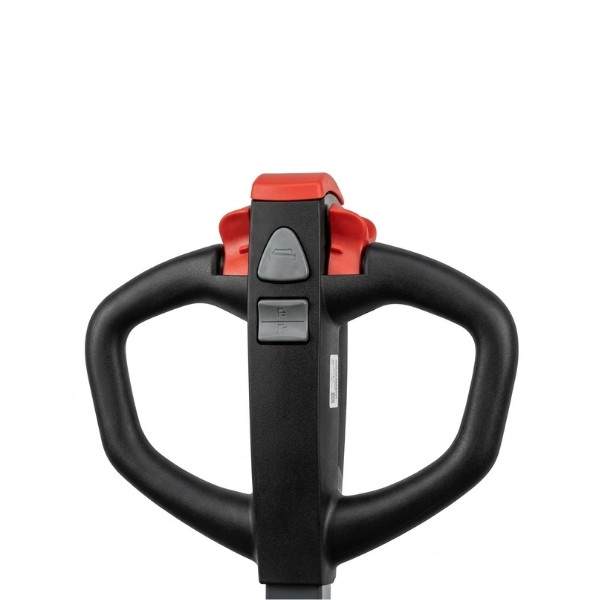

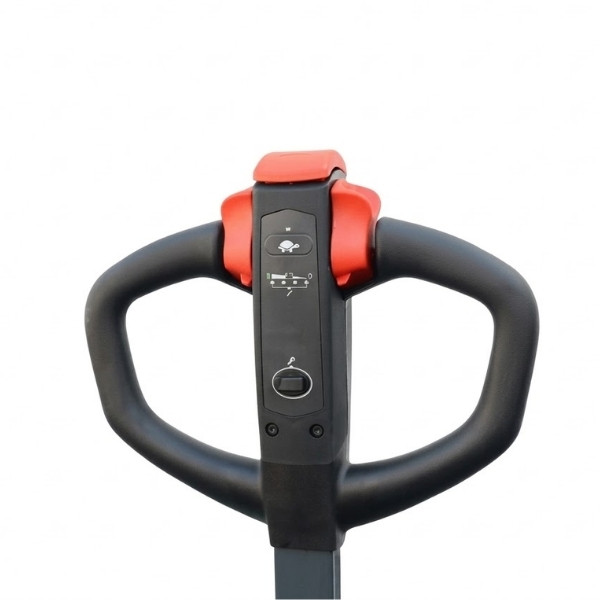

- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger Included
- 3 Years Limited Warranty
Electric Straddle Stacker Specifications
| Specification | Unit | Value |
|---|---|---|
| Model | EB12EA | |
| Load Capacity | lbs | 3000 |
| Maximum Lifting Height | in | 145.67 |
| Load Center Distance | in | 24 |
| Fork Length | in | 45.3 |
| Single Fork Width | in | 4 |
| Overall Fork Width (Adjustable) | in | 8.3 33.5 |
| Lowered Fork Height | in | 2.35 |
| Fixed Leg Length | in | 36.5 |
| Adjustable Leg Width | in | 45.5 59.1 |
| Turning Radius | in | 52.6 |
| Overall Length | in | 70 |
| Maximum Overall Width | in | 61 |
| Extended Mast Height | in | 167.28 |
| Lowered Mast Height | in | 95.67 |
| Battery Voltage / Capacity | V / Ah | 2 12V / 120Ah (10/6.6/8.5)* |
| Internal Charger | V / A | 24V / 15A |
| Lifting Motor | V / W | 2200 W |
| Lift Speed (Laden / Unladen) | mm/s | 92 / 136 |
| Lowering Speed (Laden / Unladen) | mm/s | 112 / 98 |
| Driving Motor | W | 1500 W |
| Driving Speed (Laden / Unladen) | km/h | 4.0 / 4.2 |
| Service Weight | lbs | 1584 |
