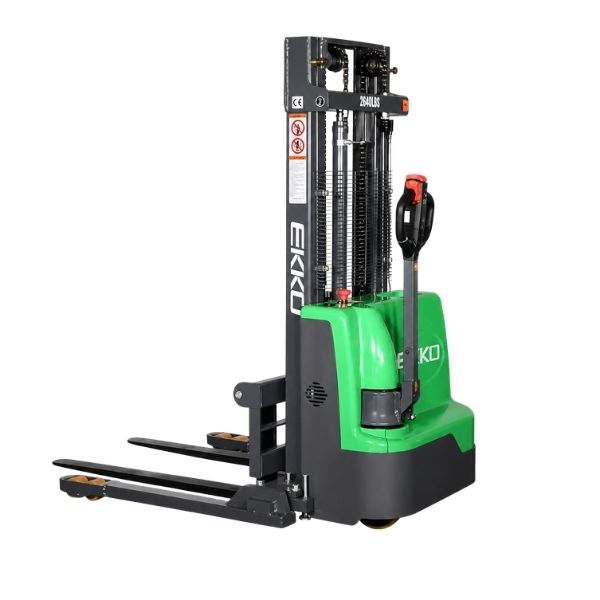

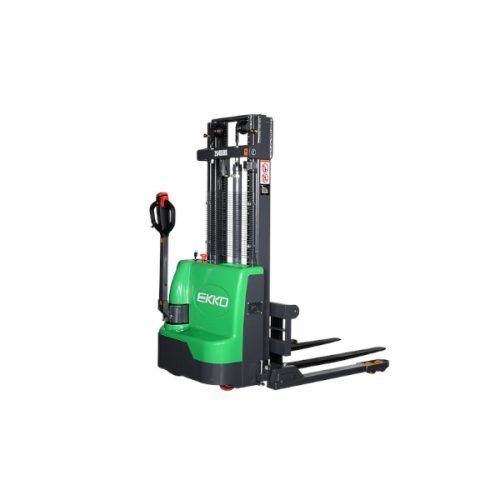

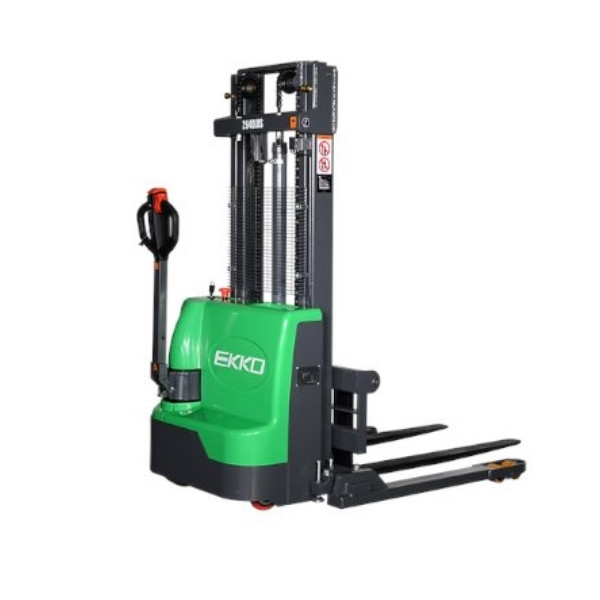

EKKO EB12E-98Li Lithium Straddle Stacker
The EKKO EB12E-98Li Lithium Straddle Stacker, featuring a 72″ lowered mast for seamless access under standard doorways, combines the versatility of a forklift, reach truck, and walkie stacker in one powerful machine. It’s perfect for efficiently handling tasks such as loading and unloading trucks, managing loading docks, and operating within stock rooms, manufacturing floors, and warehouses.
Crafted from high-quality steel and components, the EB12E-98Li is equipped with durable, high-performance drives that confidently handle a variety of terrains, heavy usage, impacts, and directional changes. This stacker delivers dependable, smooth operation for every application, ensuring both performance and peace of mind.
EB12E-98Li Lithium Straddle Stacker Main Features
- Load Capacity 2640 lb
- Lowered Mast 72″
- Raised Height 98”
- Adjustable Forks 8.3-33.5“
- Adjustable Legs 45.7-59.1”
- Fork Length 45.3“
- Curtis Instrument Controller
- 24V Drive Motor
- 24V Lift Motor
- Battery 24V/50Ah Lithium
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- 3 Year Limited Warranty
Lithium Straddle Stacker Specifications
| Specification | Unit | Value |
|---|---|---|
| Model | EB12E-98Li | |
| Power Unit | Walkie | |
| Operation Type | Electric | |
| Rated Load Capacity | lbs | 2640 |
| Load Center Distance | in | 24 |
| Axle Center to Fork Face | in | 28 |
| Wheelbase | in | 45.4 |
| Service Weight | lbs | 1300 |
| Tyres | Polyurethane Wheels | |
| Front Wheel Size / Quantity | in | F3.1 x 2.7 (4 units) |
| Rear Wheel Size / Quantity | in | F8.3 x 2.7 (1 unit) |
| Balance Wheel Size / Quantity | in | F6 x 2.3 (1 unit) |
| Lowered Mast Height | in | 72.05 |
| Maximum Lift Height | in | 98.42 |
| Extended Mast Height | in | 119.96 |
| Operating Handle Height (min/max) | in | 34.25 / 47.24 |
| Lower Fork Height | in | 2.56 |
| Overall Length | in | 71 |
| Length to Fork Face | in | 23.82 |
| Fork Dimensions (Thick/Width/Length) | in | 1.38 / 3.94 / 45.28 |
| Fork Width (Adjustable) | in | 8.27 33.47 |
| Min Ground Clearance | in | 0.95 |
| Turning Radius | in | 52.6 |
| Travel Speed (Laden/Unladen) | km/h | 4.0 / 4.2 |
| Lift Speed (Laden/Unladen) | mm/s | 92 / 136 |
| Lowering Speed (Laden/Unladen) | mm/s | 112 / 98 |
| Max Gradeability (Laden/Unladen) | % | 6 / 8 |
| Service Brake | Electromagnetic | |
| Lift Motor Power | kW | 2.2 |
| Drive Motor Power | kW | 0.75 |
| Steering Motor Power | / | |
| Battery Type (DIN 43531/35/36) | No | |
| Battery Voltage / Capacity | V / Ah | 24 / 50 (Lithium) |
| Battery Weight | lbs | 29 |
| Control Type | DC | |
| Noise Level at Operator s Ear | dB | |
| Steering Type | Mechanical |
