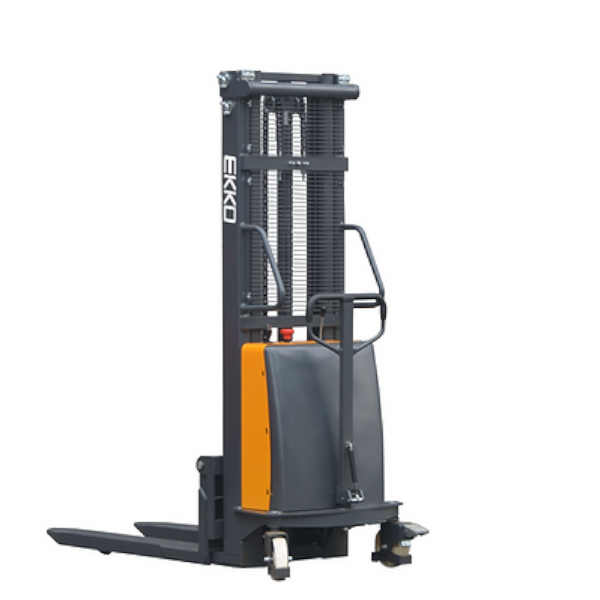

EKKO EA15E Semi-Electric Fork-Over Stacker
EKKO EA15E Semi-Electric Fork-Over Stacker combines the versatility of a forklift and a pallet stacker in a compact, efficient design built for warehouses, loading docks, stock rooms, manufacturing facilities, and truck loading applications. Constructed from high-quality steel with durable components and robotic welding, this stacker is engineered to withstand demanding daily use, impacts, directional changes, and a wide range of material handling environments. With a 3,300 lb load capacity and a maximum lift height of 138 inches, it delivers reliable performance for lifting and stacking operations while maintaining exceptional durability and stability.
Featuring power lifting with a DC 12V/1500W lift motor and manual drive operation, the EA15E offers an ideal balance between efficiency and cost-effectiveness. It comes equipped with adjustable forks, a 12V/120Ah battery, and an integrated 12V/20A charger for convenient charging and dependable operation. The ergonomic handle improves operator comfort, while its fork-over design, rugged steel construction, and compact 53.2-inch turning radius make it easy to maneuver in busy work environments. Backed by a 3-year limited warranty, the EA15E is a dependable solution for a wide range of material-handling applications.
EA15E Semi-Electric Fork-Over Stacker Main Features
- 3,300 lb load capacity
- 138″ maximum lift height
- Semi-electric design
- Power lifting system
- Manual drive operation
- Adjustable forks
- 12V/120Ah battery included
- Internal 12V/20A charger included
- DC 12V/1500W lift motor
- Ergonomic handle
- Heavy-duty steel construction
- Robotic-welded frame
- Compact 53.2″ turning radius
- Ideal for warehouses, stock rooms, loading docks, and manufacturing facilities
- 3-year limited warranty

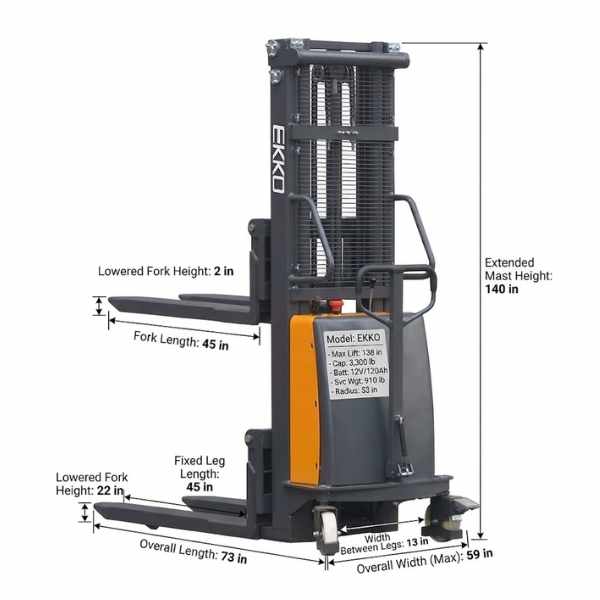

EKKO EA15E Semi-Electric Fork-Over Stacker Specifications
| Property | Value |
|---|---|
| Load Capacity | 3,300 lbs |
| Maximum Lift Height | 138″ |
| Load Center Distance | 24″ |
| Fork Length | 45.3″ |
| Single Fork Width | 5.9″ |
| Overall Fork Width | 24.5″ |
| Lowered Fork Height | 2.4″ |
| Fixed Leg Length | 45.3″ |
| Fixed Leg Width (Single) | 5.9″ |
| Width Between Legs | 12.75″ |
| Turning Radius | 53.2″ |
| Overall Length | 73″ |
| Maximum Overall Width | 59″ |
| Extended Mast Height | 140.5″ |
| Lowered Mast Height | 81.8″ |
| Battery | 12V/120Ah |
| Charger | 12V/20A |
| Lift Motor | DC 12V/1500W |
| Drive Type | Manual |
| Lift Type | Electric |
| Construction | Steel Construction with Robotic Welding |
| Service Weight | 910 lbs |
| Warranty | 3-Year Limited Warranty |
