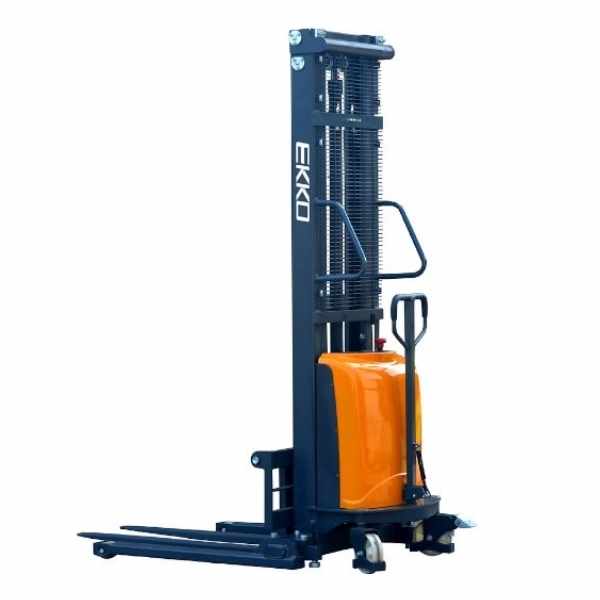

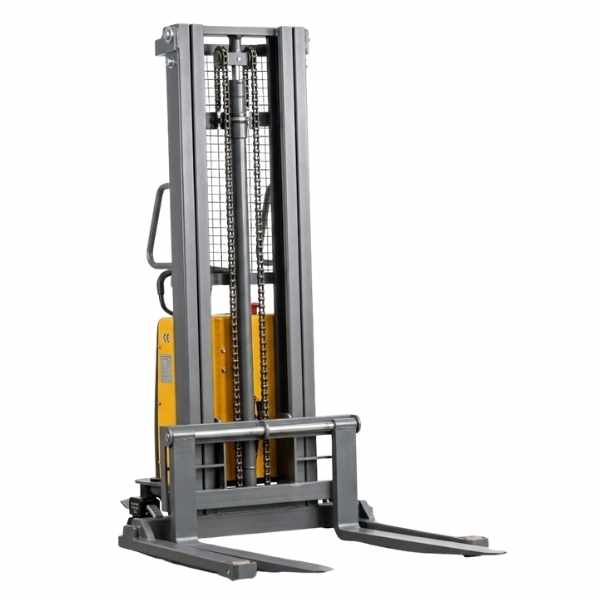

EKKO EA15D Semi-Electric Straddle Stacker
The EKKO EA15D Semi-Electric Straddle Stacker combines the versatility of a forklift and a pallet stacker, delivering efficient and adaptable material handling. Perfect for loading and unloading trucks, navigating loading docks, managing stock rooms, and optimizing workflow on manufacturing floors and in warehouses.
Crafted from high-quality steel and equipped with robust drive components, this stacker is engineered to endure diverse terrains, demanding usage, impacts, and quick directional changes. Its reliable semi-electric operation provides the performance and confidence you need for a wide range of industrial applications.
EA15D Semi-Electric Straddle Stacker Main Features
- Load Capacity 3300lbs.
- Raised Height 138″ (11.5ft)
- Adjustable Forks 8.3-33.5”

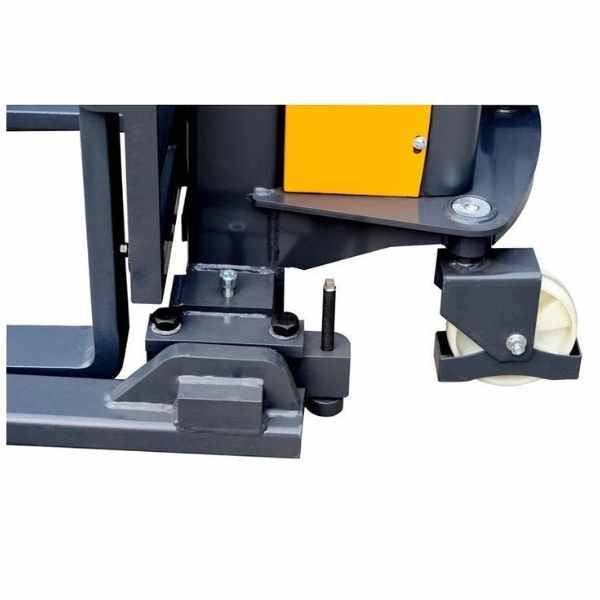

- Adjustable Legs 43.5-59.1”
- Fork Length 45.3″
- Power Lifting
- Manual Drive
- Adjustable Forks
- Built-in Charger 12v 120Ah
- Batteries Included
- Ergonomic Handle
- Steel Construction
- Robotic Welding
- 3 Years Limited Warrantyy
Semi-Electric Straddle Stacker Specifications
| Specification | Unit | Value |
|---|---|---|
| Model | EA15C | |
| Load Capacity | lbs | 3300 |
| Maximum Lifting Height | in | 138 |
| Load Center Distance | in | 24 |
| Fork Length | in | 45.3 |
| Single Fork Width | in | 4 |
| Overall Fork Width | in | 8-32.7 |
| Lowered Fork Height | in | 2.35 |
| Fixed Leg Length | in | 36.5 |
| Fixed Leg Width (Single) | in | 3.94 |
| Width Between Legs | in | 44.5-59.1 |
| Turning Radius | in | 52.6 |
| Overall Length | in | 70 |
| Overall Width | in | 61 |
| Extended Mast Height | in | 154 |
| Lowered Mast Height | in | 92 |
| Battery Voltage / Capacity | V / Ah | 12V / 120Ah |
| Charger | V / A | 12V / 15A |
| Lifting Motor | V / W | 12V / 1500W (DC) |
| Service Weight | lbs | 1450 |
