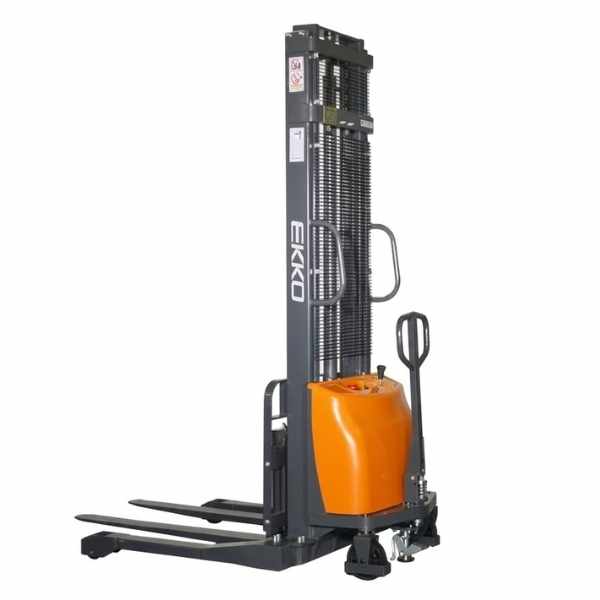

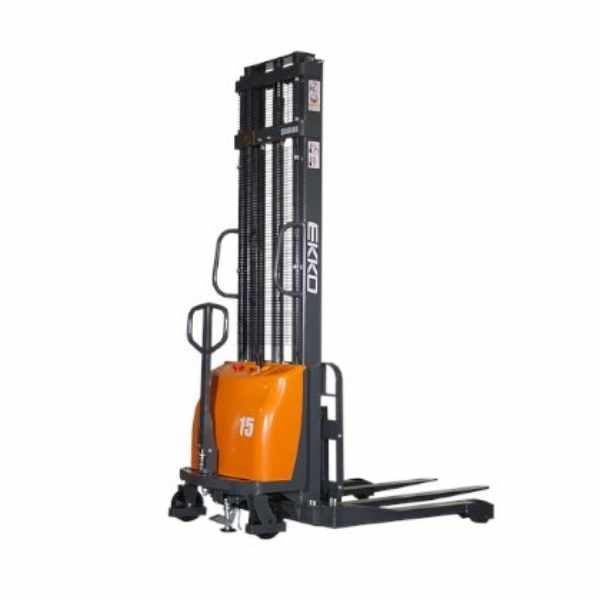

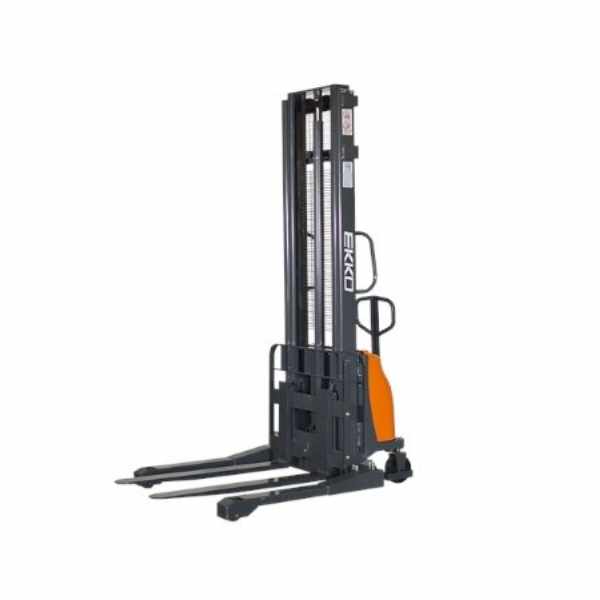

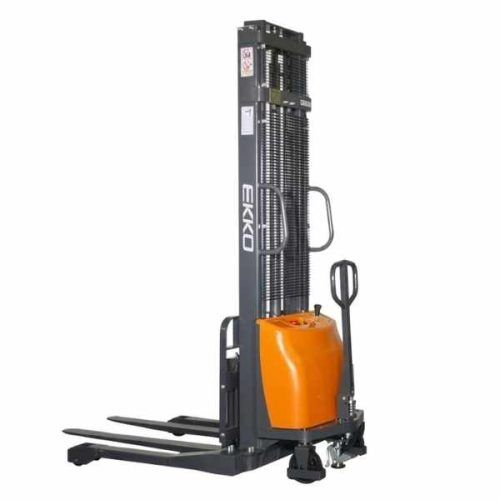

EKKO EA15A-138 Semi-Electric Straddle Stacker
The EKKO EA15A-138 Semi-Electric Straddle Stacker combines the versatility of a forklift and a pallet stacker to deliver dependable performance for a variety of material handling tasks. Ideal for loading and unloading trucks, navigating loading docks, managing stock rooms, and operating across manufacturing floors and warehouses.
Built with high-quality steel and durable components, this stacker is engineered to handle diverse terrains, heavy usage, impacts, and directional changes with ease. Its semi-electric functionality ensures efficient operation and provides the confidence and reliability required for industrial applications.
EA15A-138 Semi-Electric Straddle Stacker Main Features
- Load Capacity: 3,300 lbs
- Raised Height: 138 in (11.5ft)
- Adjustable Forks: 8.66-32 in
- Adjustable Legs: 35-51 in
- Fork Length: 45 in
- Power lifting
- Manual drive
- 12V/15A Internal Charger included
- 12V/120AH Lead Acid battery included
- Ergonomic comfort handle
- Steel construction with robotic welding
Semi-Electric Straddle Stacker Specifications
| Specification | Unit | Value |
|---|---|---|
| Model | EA15A-138 | |
| Load Capacity | lbs | 3300 |
| Maximum Lifting Height | in | 138 |
| Load Center Distance | in | 20 |
| Fork Length | in | 45 |
| Single Fork Width | in | 4 |
| Overall Fork Width (Adjustable) | in | 8.66 32 |
| Lowered Fork Height | in | 2.6 |
| Adjustable Legs | in | 35 51 |
| Turning Radius | in | 59 |
| Overall Length | in | 70 |
| Overall Width | in | 59 |
| Extended Mast Height | in | 167 |
| Lowered Mast Height | in | 95 |
| Battery Voltage / Capacity | V / Ah | 12V / 120Ah |
| On-board Charger | V / A | 12V / 15A |
| Lifting Motor | KW | 2.2 |
| Service Weight | lbs | 1234 |
