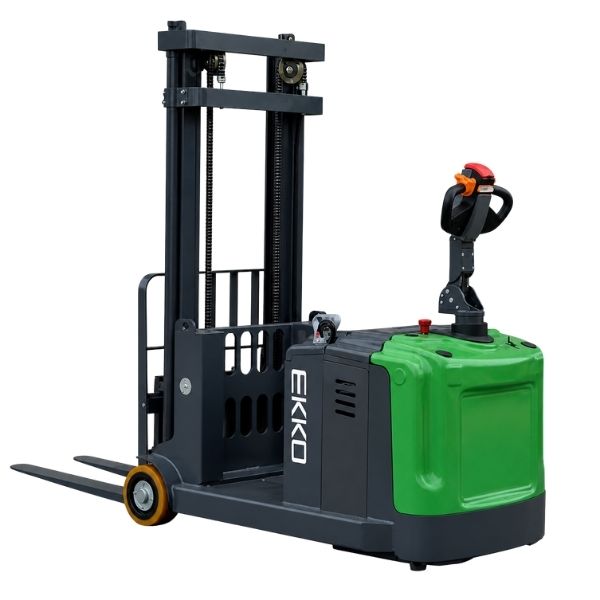

EKKO Lift EK14-130Li Electric Counterbalanced Walkie Stacker
The EKKO Lift EK14-130Li Electric Counterbalanced Walkie Stacker combines the strength of a forklift with the agility of a walkie stacker, delivering exceptional performance for all your material handling needs. Perfect for loading and unloading trucks, managing loading docks, and operating within stock rooms, manufacturing floors, and warehouses.
Built with high-quality steel and durable components, this lithium-powered unit is engineered to endure diverse terrains, rigorous usage, impacts, and directional changes. The EK14-130Li ensures reliable, confident operation across a wide range of industrial applications.
Lift EK14-130Li Electric Counterbalanced Walkie Stacker Main Features
- Load Capacity 3300 lbs
- Raised Height 130″ (10.83ft)
- Adjustable Forks 8.6-28.3″
- Fork Length 45.3″
- Tilt 2/5 Degree
- Curtis Controller
- 24V Center Drive Motor
- 24V Lift Motor
- Battery 24V/150Ah Lithium
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger Included
- Battery Included
- 3 Years Limited Warranty
EK14-130Li Electric Counterbalanced Walkie Stacker Specifications
| Specification | Unit | Value |
|---|---|---|
| Model | EK14-130Li | |
| Drive Type | Electric | |
| Operation Type | Stand-on / Walkie Type | |
| Rated Load Capacity | lbs | 3300 |
| Load Center Distance | in | 24 |
| Distance Fork Backrest to Front Wheel | in | 6 |
| Wheelbase | in | 47 |
| Service Weight (with battery) | lbs | 3750 |
| Tire Material | PU | |
| Drive Wheel Size (F w) | in | 9.8 3.1 |
| Front Wheel Size (F w) | in | 9.84 4.71 |
| Wheels (Drive / Balance / Load) | – | 2 / 1X |
| Mast/Fork Tilt (Forward/Backward) | 2 / 5 | |
| Lowered Mast Height (h1) | in | 84 |
| Free Lift Height (h2) | in | 4 |
| Lifting Height (h3) | in | 130 |
| Extended Mast Height (h4) | in | 155 |
| Seat/Platform Height (h7) | mm | 5 |
| Fork Carriage Width | in | 3.5 |
| Overall Length (l1) | in | 105 |
| Overall Width (b1) | in | 39 |
| Fork Size (s/e/l) | in | 1.4 / 4 / 37 |
| Adjustable Fork Width (b5) | in | 8.7 28 |
| Ground Clearance under Mast (m1) | in | 2.4 |
| Turning Radius (Wa) | in | 62 |
| Aisle Width (1000 1200 pallet crossways) | in | 119 |
| Aisle Width (800 1200 pallet lengthways) | in | 123 |
| Max Driving Speed (Laden/Unladen) | in/h | 16850 / 204724 |
| Max Gradeability (Laden/Unladen) | % | 6 / 10 |
| Lifting Speed (Laden/Unladen) | in/s | 4 / 5.5 |
| Lowering Speed (Laden/Unladen) | in/s | 5.3 / 4.7 |
| Steering Motor | V / kW | 24 / 0.2 |
| Drive Motor | kW | 2.5 |
| Lift Motor | kW | 3.0 |
| Charger | V / A | 24 / 50 |
| Battery (Voltage / Capacity) | V / Ah | 24 / 150 (Lithium) |
