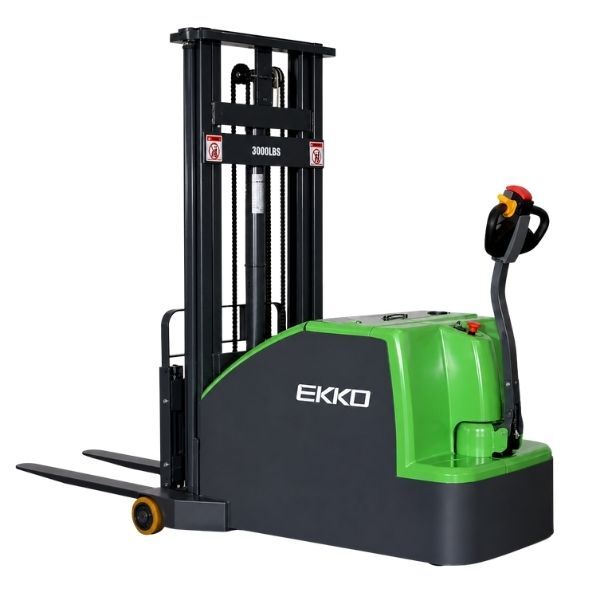

EKKO EK14CS-130Li Lithium Counterbalanced Walkie Stacker
The EKKO EK14CS-130Li Lithium Counterbalanced Walkie Stacker combines the strength of a forklift with the agility of a walkie stacker, delivering exceptional performance for all your material handling needs. Perfect for loading and unloading trucks, managing loading docks, and operating within stock rooms, manufacturing floors, and warehouses.
Built with high-quality steel and durable components, this lithium-powered unit is engineered to endure diverse terrains, rigorous usage, impacts, and directional changes. The EK14CS-130Li ensures reliable, confident operation across a wide range of industrial applications.
EK14CS-130Li Lithium Counterbalanced Walkie Stacker Main Features
- Load Capacity: 3,000 lbs
- Raised Height: 130″ (10.83 ft)
- Side-Shifting: Yes
- Adjustable Forks: 8.6″ – 26″
- Fork Length: 42.1″
- Curtis® Controller
- 24V AC Drive Motor
- 2.2 kW Lift Motor
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction with Robotic Welding
- Charger Included
- Battery Included
- 3-Year Limited Warranty
Lithium Counterbalanced Walkie Stacker Specifications
| Specification | Unit | Value |
|---|---|---|
| Model | EK14CS-130Li | |
| Drive Type | Lithium Walkie Stacker | |
| Operation Type | Lithium Battery | |
| Rated Load Capacity | lbs | 3000 |
| Load Center Distance | in | 24 |
| Wheelbase | in | 47 |
| Service Weight | lbs | 4330 |
| Lifting Height | in | 130 |
| Side Shifting | in | 4 |
| Extended Mast Height | in | 158.7 |
| Mast/Fork Tilt (Forward/Backward) | 2 / 5 | |
| Overall Length | in | 109 |
| Overall Width | in | 42.1 |
| Fork Size (Thick/Width/Length) | in | 1.4 / 4 / 42.1 |
| Adjustable Fork Width | in | 8.6 26 |
| Turning Radius | in | 57 |
| Max Gradeability (Laden/Unladen) | % | 6 / 10 |
| Lifting Speed (Laden/Unladen) | in/s | 2.95 / 3.94 |
| Lowering Speed (Laden/Unladen) | in/s | 5.3 / 4.7 |
| Charger | V / A | 24 / 50 |
| Driving Motor | V / W | AC 24 / 2500 |
| Lifting Motor | V / W | 24 / 2500 |
| EPS Steering Motor | V / W | 24 / 200 |
| Battery | V / Ah | 24 / 150 (Lithium) |
