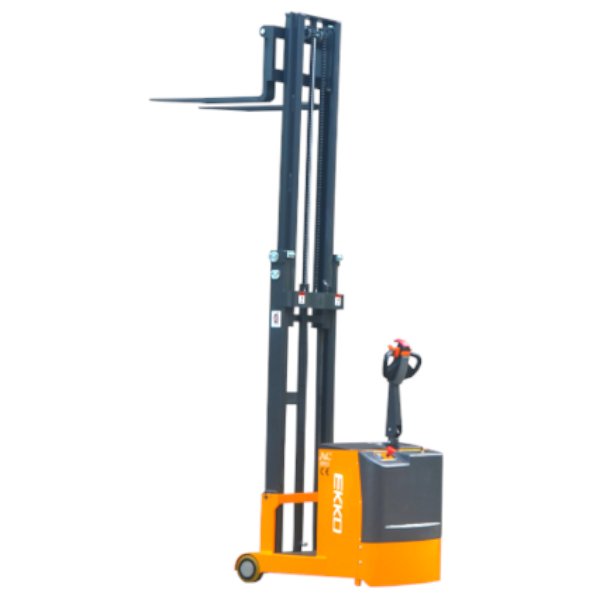

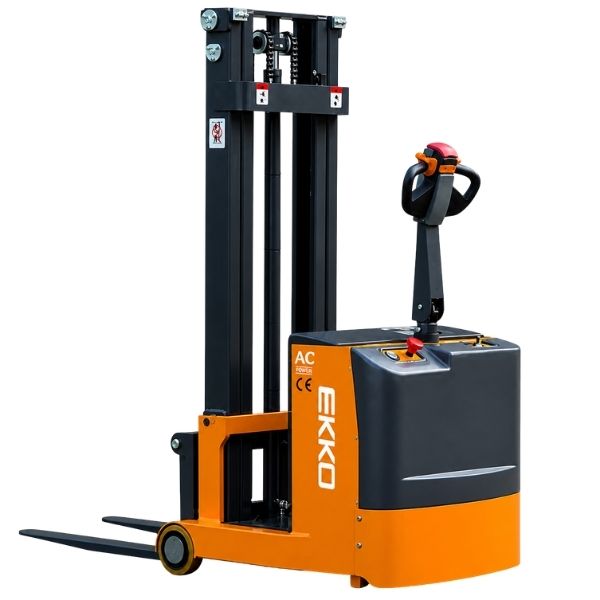

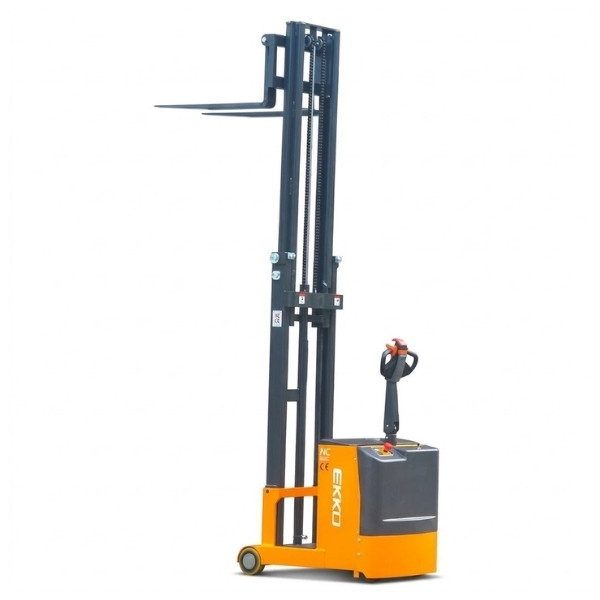

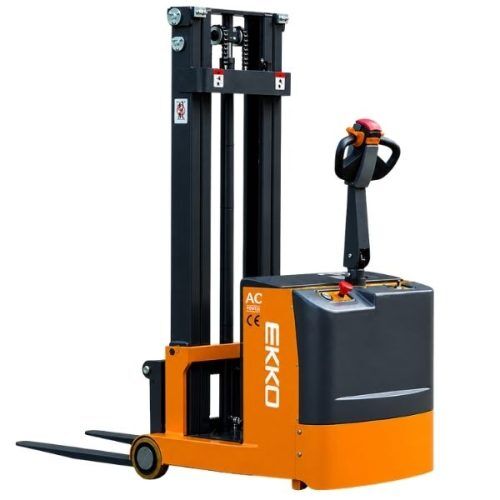

EKKO EK07S Fully Powered Counterbalance Walkie Stacker
The EKKO EK07S Fully Powered Counterbalance Walkie Stacker combines the maneuverability of a walkie stacker with the strength and versatility of a forklift. Ideal for loading and unloading trucks, navigating loading docks, and operating efficiently in stock rooms, manufacturing floors, and warehouses.
Built with high-quality steel and durable components, the EK07S features robust drive systems engineered to withstand diverse terrains, heavy usage, impacts, and directional changes. Designed for reliable performance and ease of operation, this walkie stacker delivers confident handling for any material handling application.
EK07S Fully Powered Counterbalance Walkie Stacker Main Features
- Load Capacity 1550lbs.
- Raised Height 118″ (9.83ft)
- Adjustable Forks 8.3-25.2″
- Fork Length 42″
- Curtis Controller
- 24V AC Drive Motor
- 24V Lift Motor
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- On-Board Charger Included
- BatterY Included
- 3 Years Limited Warranty
Fully Powered Counterbalance Walkie Stacker Specifications
| Specification | Unit | Value |
|---|---|---|
| Model | EK07S | |
| Lift Type | Electric | |
| Drive Type | Electric | |
| Rated Load Capacity | lbs | 1550 |
| Load Center Distance | in | 20 |
| Lifting Height | in | 118.0 |
| Lowered Mast Height | in | 81.1 |
| Overall Length | in | 84.7 |
| Overall Width | in | 34.5 |
| Fork Size (Thickness / Width / Length) | in | 1.4 / 2.9 / 42 |
| Adjustable Fork Width | in | 8.3-25.2 |
| Turning Radius | in | 51.0 |
| Internal Charger | 24V / 20A | |
| Driving Motor | AC 24V / 0.75kW | |
| Lifting Motor | 24V / 1.5kW | |
| Battery Voltage / Capacity | V / Ah | 24V / 120Ah |
| Service Weight | lbs | 2090 |
