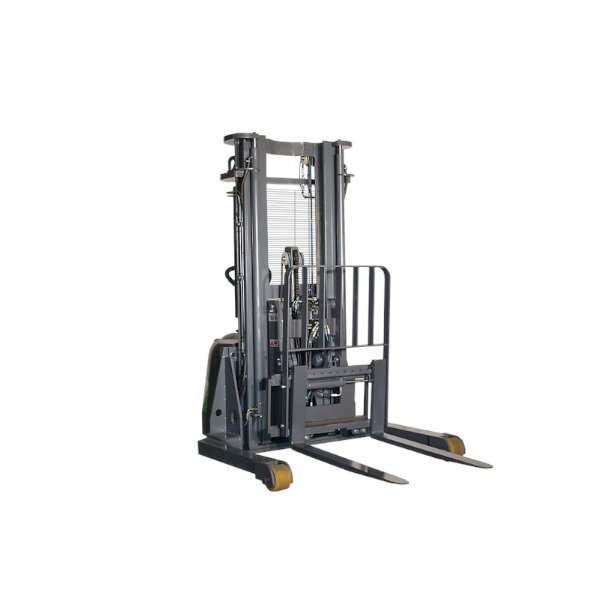

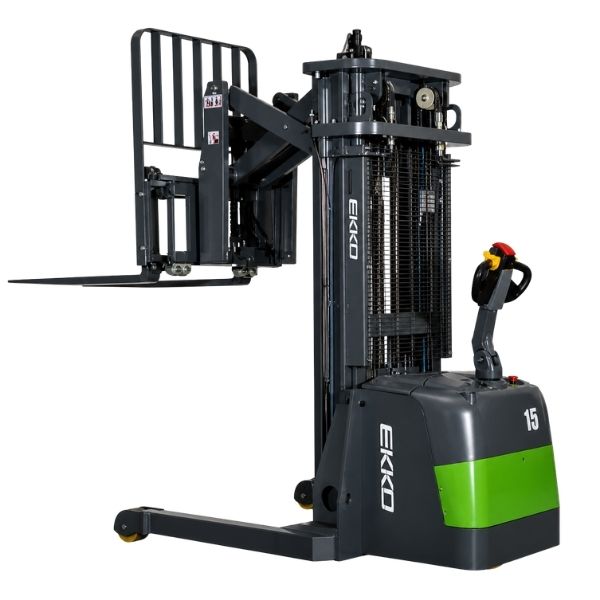

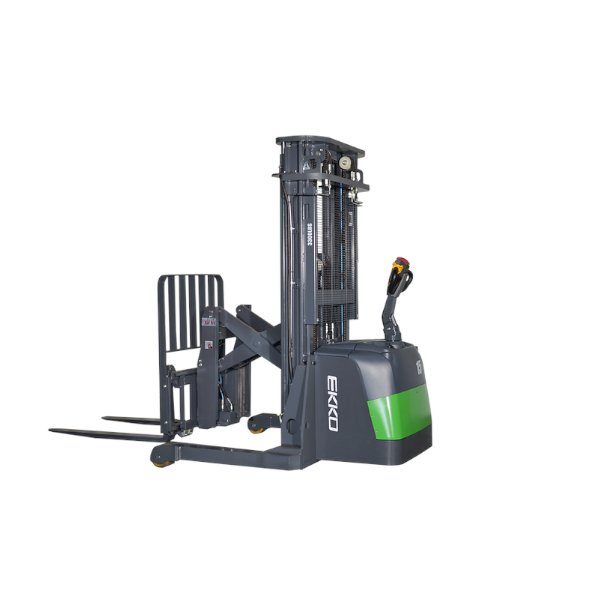

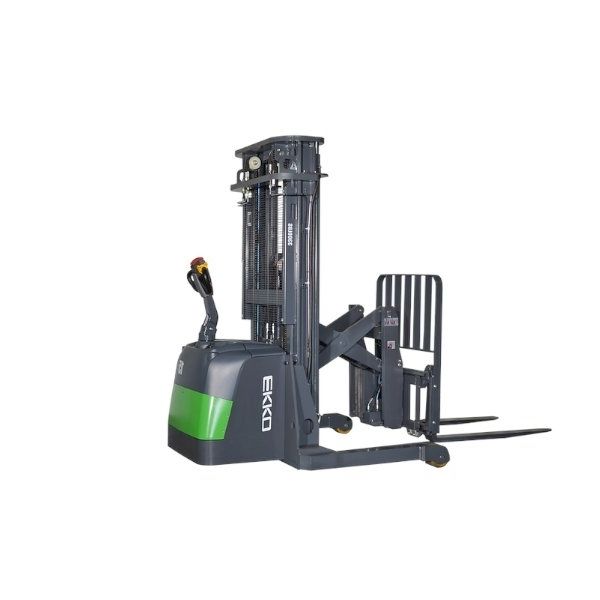

EKKO ER15-216Li Walkie Reach Truck
The EKKO ER15-216Li Walkie Reach Truck is engineered to combine the versatility of a forklift, reach truck, and walkie stacker in one powerful, compact unit. Designed for efficiency in loading and unloading trucks, handling loading docks, stocking rooms, managing manufacturing floors, and navigating warehouse spaces, this truck offers unmatched adaptability and performance.
Built from high-quality steel and equipped with robust, long-lasting components, the ER15-216Li delivers durable drive performance that can endure heavy usage, impacts, rough terrain, and directional changes. Confidently tackle any application with a reach truck that brings precision, strength, and assurance to every task.
ER15-216Li Walkie Reach Truck Main Features
- Load Capacity 3300 lb
- Raised Height 216″ (18ft)
- Reach Distance of 19.7″
- Side Shift
- Tilt
- Free Lift 66.9″
- Fork Length 45.3″
- Curtis Instrument Controller
- EPS (Electronic Power Steering)
- 24V AC Drive Motor
- 24V Lift Motor
- Battery 24V/200Ah Lithium
- Polyurethane Wheels

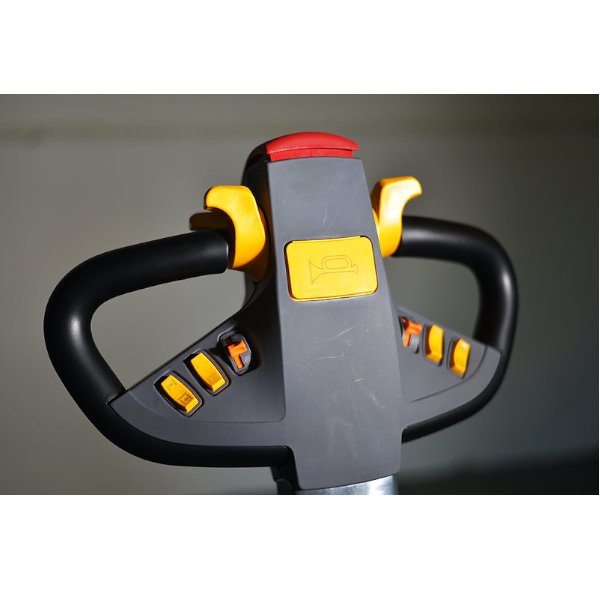

- Ergonomic Handle and Controls
- Lift Control Valve
- Steel Construction
- Robotic Welding
- Charger Included
- Batteries Included
Walkie Reach Truck Specifications
| Specification | Unit | Value |
|---|---|---|
| Model | ER15-216Li | |
| Lift | Electric | |
| Drive | Electric | |
| Load Capacity | lb | 3300 |
| Load Center Distance | in | 24 |
| Lifting Height | in | 216 |
| Side Shift | Yes | |
| Lowered Mast Height | in | 95 |
| Overall Length | in | 86.6 |
| Overall Width (Body/Legs) | in | 32.3 / 59.1 |
| Fork Size (Thick/Width/Length) | in | 1.38 / 3.9 / 45.3 |
| Fork Width | in | 32.2 |
| Reach Distance | in | 19.7 |
| Turning Radius | in | 63.4 |
| Charger | V/A | 24V / 50A |
| Driving Motor | kW | AC 1.5 |
| EPS Steering Motor | AC Speed Control | |
| Lifting Motor | kW | 4.5 |
| Battery Voltage/Capacity | V/Ah | 24V / 200Ah Lithium |
| Service Weight | lb | 4700 |
