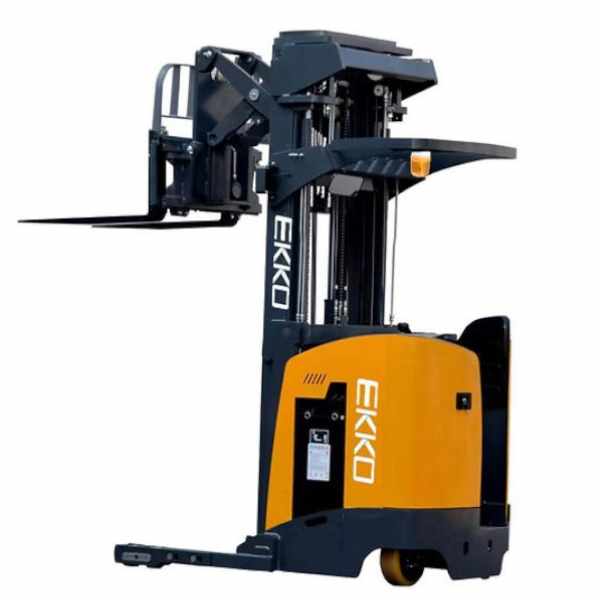

EKKO EK18RRL Stand-up Narrow Aisle Reach Truck
The EKKO EK18RRL Stand-up Narrow Aisle Reach Truck is engineered to combine the versatility of a forklift, reach truck, and walkie stacker in one powerful, compact unit. Designed for efficiency in loading and unloading trucks, handling loading docks, stocking rooms, managing manufacturing floors, and navigating warehouse spaces, this truck offers unmatched adaptability and performance.
Built from high-quality steel and equipped with robust, long-lasting components, the EK18RRL delivers durable drive performance that can endure heavy usage, impacts, rough terrain, and directional changes. Confidently tackle any application with a reach truck that brings precision, strength, and assurance to every task.

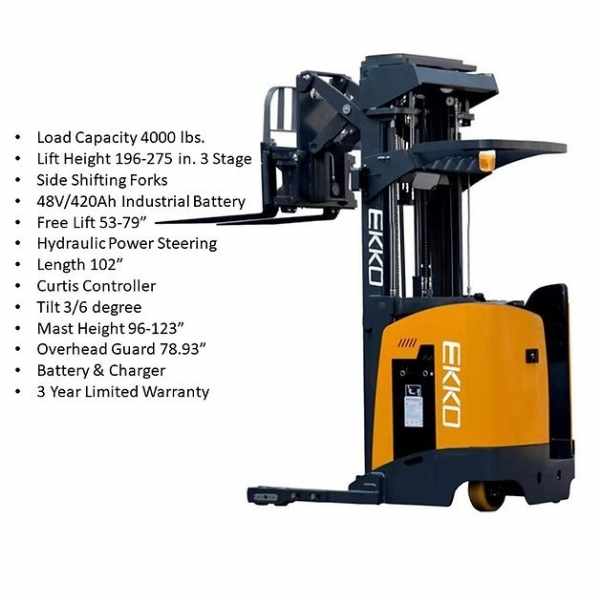

EK18RRL Stand-up Narrow Aisle Reach Truck Main Features
- Load Capacity 4000 lb
- Raised Height 196″ (16.33ft)
- Reach Distance of 22.44″
- Side Shifting Forks
- Free Lift
- Tilt
- Adjustable Forks 7.9-35.04″
- Fork Length 45.3″
- Triple Mast
- Curtis Instrument Controller
- EPS (Electronic Power Steering)
- German AC Drive Motor
- Battery 48V/420Ah
- 48V/65A 480V
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger Included
- Batteries Included
- 3 Years Limited Warranty

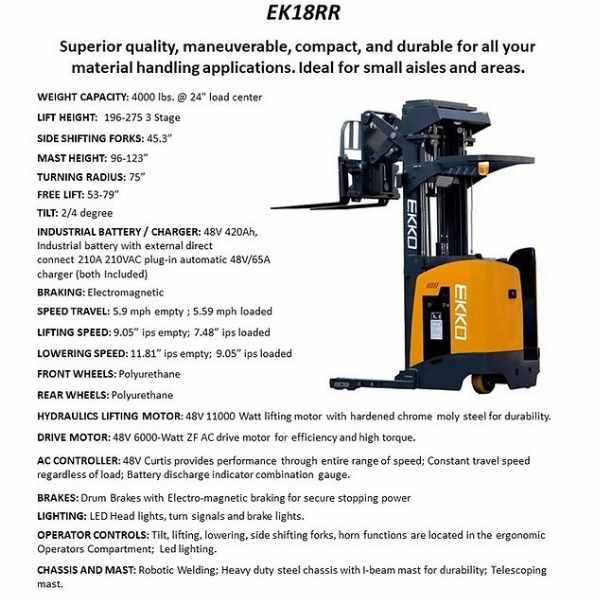

Stand-up Narrow Aisle Reach Truck Specifications
| Specification | Unit | Value |
|---|---|---|
| Model | EK18RRL | |
| Lift | Electric | |
| Drive | Electric | |
| Load Capacity | lbs | 4000 |
| Load Center Distance | in | 24 |
| Lifting Height | in | 196 |
| Side Shifting Forks | 3 Way Valve | |
| Free Lift | in | 53.15 |
| Lowered Mast Height | in | 96.42 |
| Overall Length / Extended | in | 102.28 |
| Overall Width | in | 54.72 |
| Fork Size (Thick/Width/Length) | in | 1.58 / 4.72 / 45 |
| Fork Adjust Width | in | 35.04 |
| Reach Distance | in | 22.44 |
| Turning Radius | in | 75 |
| Charger | V/A | 48V / 65A |
| Driving Motor | V/W | 48V / 6000 |
| EPS Steering Motor | – | Yes |
| Lifting Motor | V/W | 48V / 11000 |
| Battery Voltage / Capacity | V/Ah | 48V / 420Ah |
| Service Weight | lbs | 9000 |
