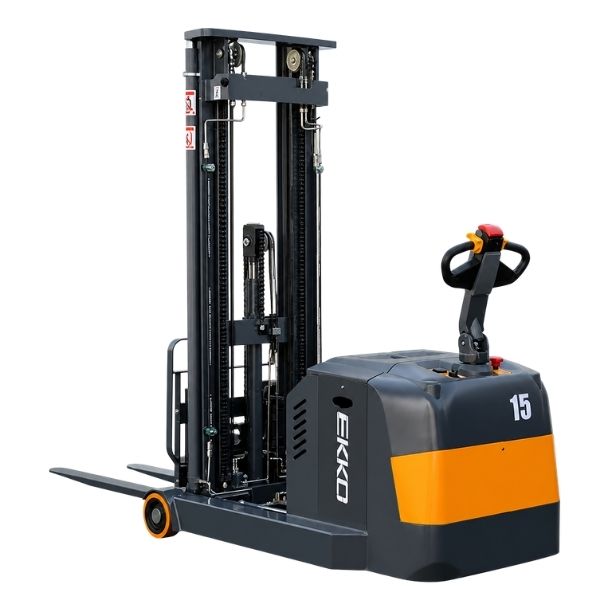

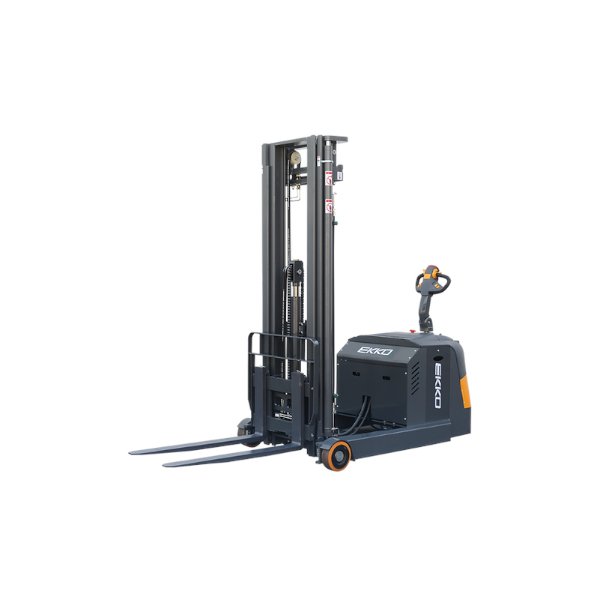

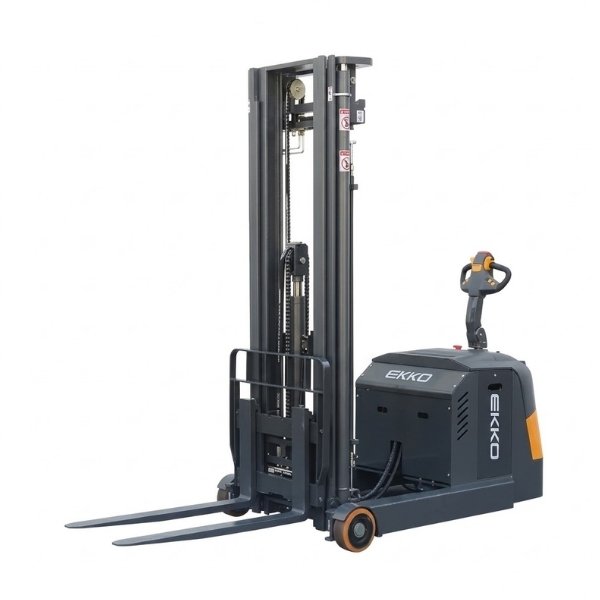

EKKO EH15TH Moving Mast Walkie Reach Truck
The EKKO EH15TH Moving Mast Walkie Reach Truck is engineered to combine the versatility of a forklift, reach truck, and walkie stacker in one powerful, compact unit. Designed for efficiency in loading and unloading trucks, handling loading docks, stocking rooms, managing manufacturing floors, and navigating warehouse spaces, this truck offers unmatched adaptability and performance.
Built from high-quality steel and equipped with robust, long-lasting components, the EH15TH delivers durable drive performance that can endure heavy usage, impacts, rough terrain, and directional changes. Confidently tackle any application with a reach truck that brings precision, strength, and assurance to every task.
EH15TH Moving Mast Walkie Reach Truck Main Features
- Load Capacity 3300 lb
- Raised Height 216″ (18’ft)
- Reach Distance of 19.7″
- Free Lift 68″
- Adjustable Forks 8.7-29.1″
- Fork Length 45.2″
- Triple Mast
- Curtis Instrument Controller
- EPS (Electronic Power Steering)
- 24V AC Drive Motor
- 24V Lift Motor
- Battery 24V/270Ah
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger Included
- Batteries Included
- 3 Years Limited Warranty
Moving Mast Walkie Reach Truck Specifications
| Specification | Unit | Value |
|---|---|---|
| Model | EH15TH | |
| Lift | Electric | |
| Drive | Electric | |
| Load Capacity | lbs | 3300 |
| Load Center Distance | in | 24 |
| Lifting Height | in | 216 |
| Lowered Mast Height | in | 97.3 |
| Overall Length | in | 111.6 |
| Overall Width | in | 41 |
| Fork Size (Thick/Width/Length) | in | 1.4 / 4 / 45.2 |
| Fork Adjust Width | in | 8.7 – 28 |
| Reach Distance | in | 19.7 |
| Turning Radius | in | 67 |
| Charger | V/A | 24V / 50A |
| Driving Motor | kW | AC 24V / 2.5 |
| Steering Motor | kW | 24V / 200 |
| Lifting Motor | kW | 24V / 3000 |
| Battery Voltage/Capacity | V/Ah | 24V / 270Ah |
| Service Weight | lbs | 4915 |
