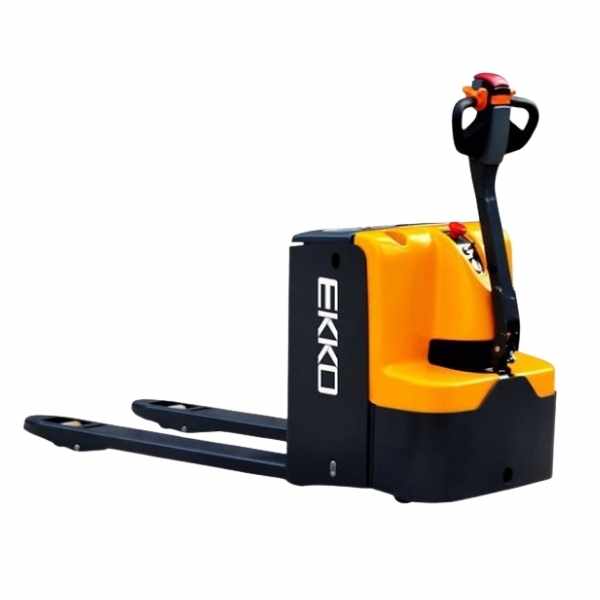

EKKO EP20E Electric Walkie Pallet Jack
The EKKO EP20E Electric Walkie Pallet Jack combines the versatility of a traditional pallet jack with the advanced power of full electric lifting and driving capabilities. Perfect for loading and unloading trucks, managing loading docks, navigating stock rooms, manufacturing floors, and warehouse operations, it ensures efficiency and reliability in every task.
Constructed from high-quality steel and precision-engineered components, the EP20E is built to withstand various terrains, heavy usage, impacts, and directional changes. Its durable drive system and rugged design deliver the confidence and assurance needed for demanding applications, making it a dependable solution for any industrial environment.
EP20E Electric Walkie Pallet Jack Main Features
- Load Capacity 4400lbs.
- Fork Size 27×48
- Raised Height 7.9″
- Lowered Height 3.3″
- Curtis Controller
- Polyurethane Wheels
- Steel Entry Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Built-in Charger Included
- Battery Included
- Optional Backrest
- 3 Years Limited Warranty

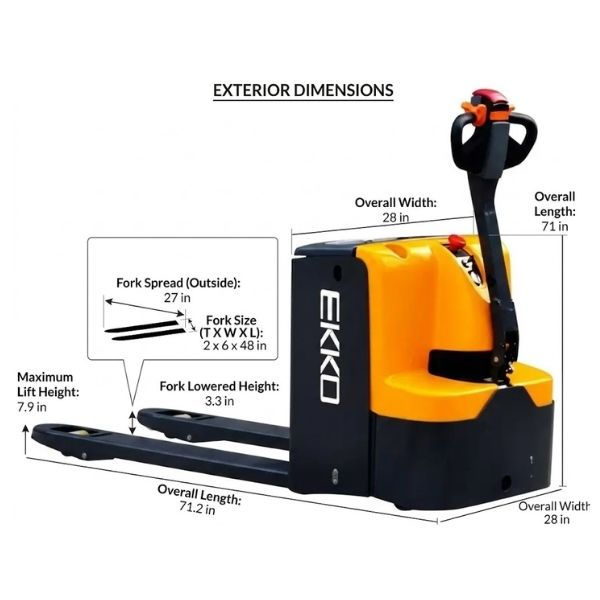

Electric Walkie Pallet Jack Specifications
| Specification | Unit | Value |
|---|---|---|
| Model | – | EP20E |
| Lift | – | Electric |
| Drive | – | Electric |
| Load Capacity | lb | 4400 |
| Load Center | in | 24 |
| Wheelbase | in | 53 |
| Lowered Fork Height | in | 3.3 |
| Lifting Height | in | 7.9 |
| Overall Length | in | 71.2 |
| Overall Width | in | 28 |
| Fork Size (s/e/l) | in | 2/6/48 |
| Outside Distance of Fork | in | 27 |
| Turning Radius | in | 60 |
| Lifting Speed Laden/Unladen | in/s | 0.8 / 1.1 |
| Lowering Speed Laden/Unladen | in/s | 1.5 / 1.5 |
| Max Gradient Performance Laden/Unladen | % | 8/15 |
| Brake Type | – | Electromagnetic |
| Drive Motor Power | W | 1.3 |
| Lift Motor Power | W | 0.8 |
| Battery Type | – | Lithium LiFePO4 |
| Charge | V/A | 24V/15A |
| Battery Voltage/Rate Capacity | V/Ah | 24/160 |
| Drive Motor Type | – | AC |
| Drive Motor Control | – | Motor Speed Control |
| Noise Level at Operator Seat | dB(A) | 68 |
| Service Weight (with battery) | lb | 860 |
