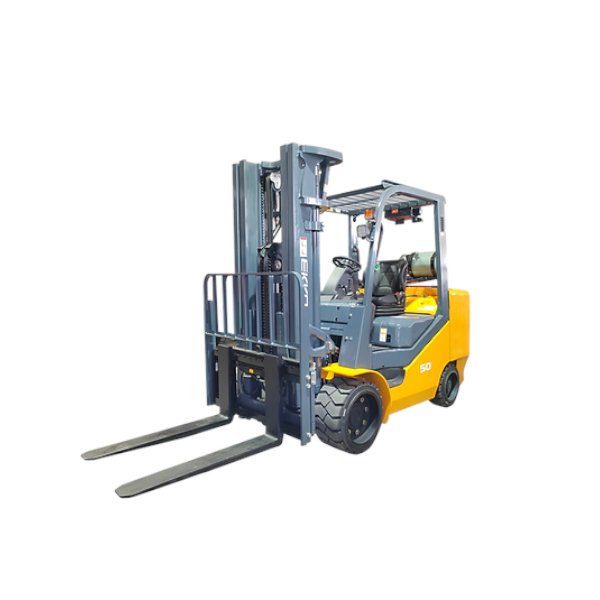

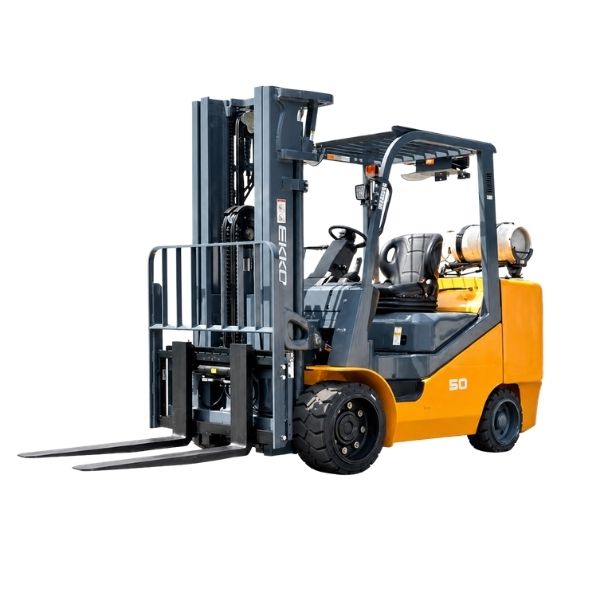

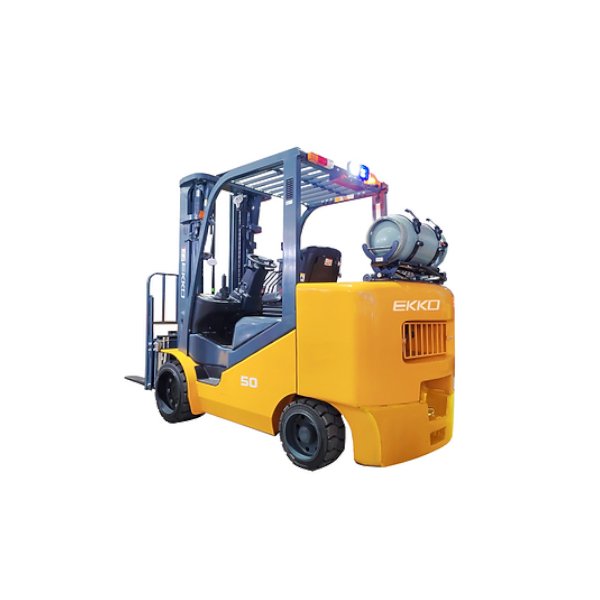

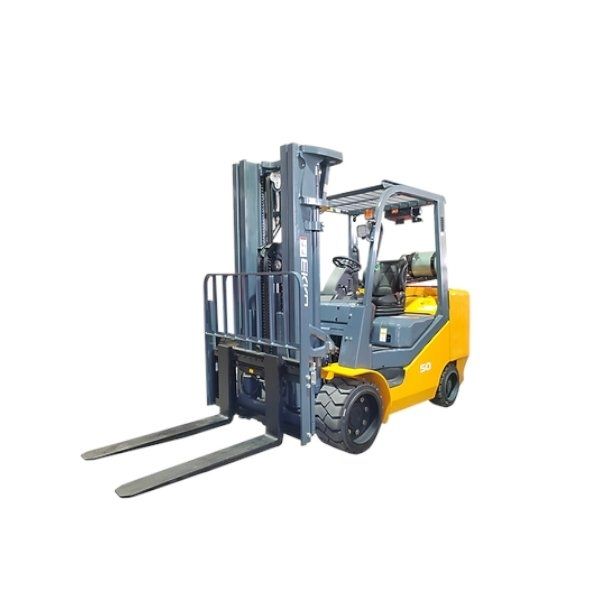

EKKO EK50LP Liquid Propane 4 Wheel Forklift
The EKKO EK50LP Liquid Propane 4 Wheel Forklift is engineered to meet all your material handling, warehousing, and distribution needs with exceptional strength and reliability. Built with high-durability components and powered by a dependable Kubota engine, this unit is Tier 4 EPA compliant, ensuring efficient and environmentally responsible performance. Offering a perfect balance of power, performance, and competitive pricing, the EK50LP is an ideal solution for heavy-duty industrial applications.
EK50LP Liquid Propane 4 Wheel Forklift Main Features
- Multifunction instrument panel – motoring for Safety and efficient operation
- Operator compartment- nonslip entrance step, wider access & leg room.
- Adjustable steering column limiting operator arm and shoulder fatigue.
- Excellent Operator visibility.
- Integral Heavy-Duty Chassis- ensuring driver protection
- Steer axle pivots to 80 degrees for tighter turning radius.

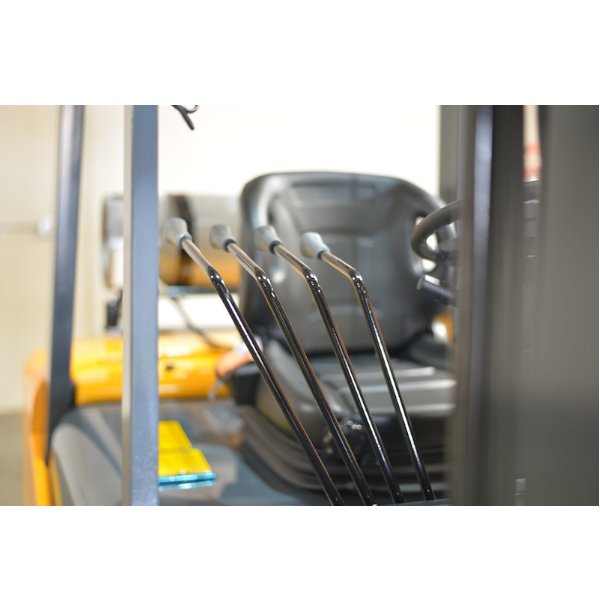

- Hydraulic controls
Liquid Propane 4 Wheel Forklift Specifications
| Specification | Unit | Value |
|---|---|---|
| Model | EK50LP | |
| Drive type | LPG | |
| Type of operation | Propane | |
| Load Capacity | LBS | 10000 |
| Load Center | in | 24 |
| Lift height | in | 185 |
| Wheelbase | in | 61.8 |
| Service Weight | LBS | 16250 |
| Tire material | Pattern Cush. Tire | |
| Traction Pin Height | in | 11.2 |
| Service Brake | Hydraulic Foot Pedal | |
| Parking Brake | Mechanicl Hand Lever | |
| Overall width | in | 55.9 |
| Overall length with forks | in | 157 |
| Overall length without forks | in | 109 |
| Min ground clearance (mast) | in | 4.3 |
| Max traveling speed (loaded/unloaded) | mph | 10.5 / 11.2 |
| Mast Overall height | in | 91.9 |
| Free lifting height | in | 44.3 |
| Backrest height (from the surface of the forks) | in | 47.6 |
| Fork Size | in | 48 x 5.9 x 1.97 |

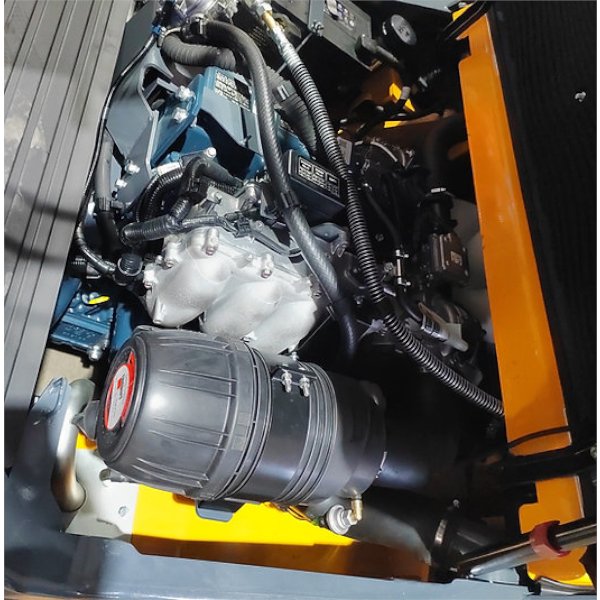

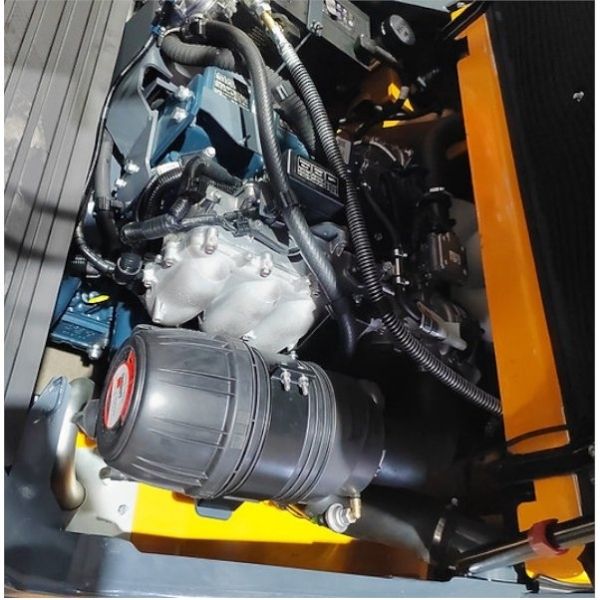

| Engine Model | Kubota WG3800 | |
| Engine rated power | HP / rpm | 63.2 / – |
