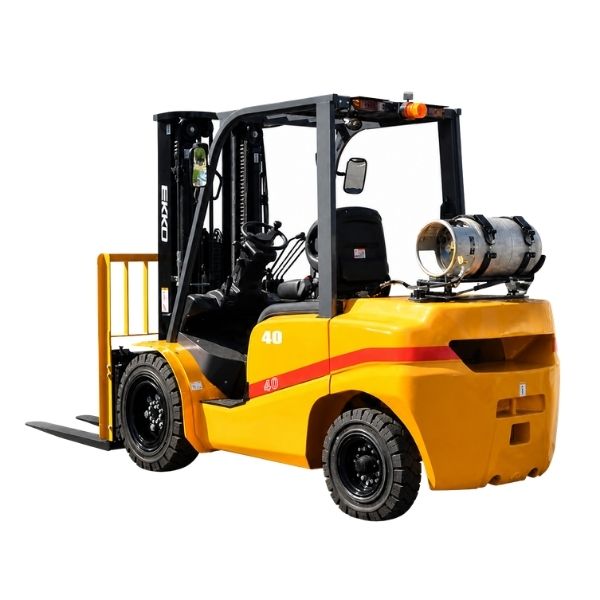

EKKO EK40TLP Liquid Propane 4 Wheel Forklift

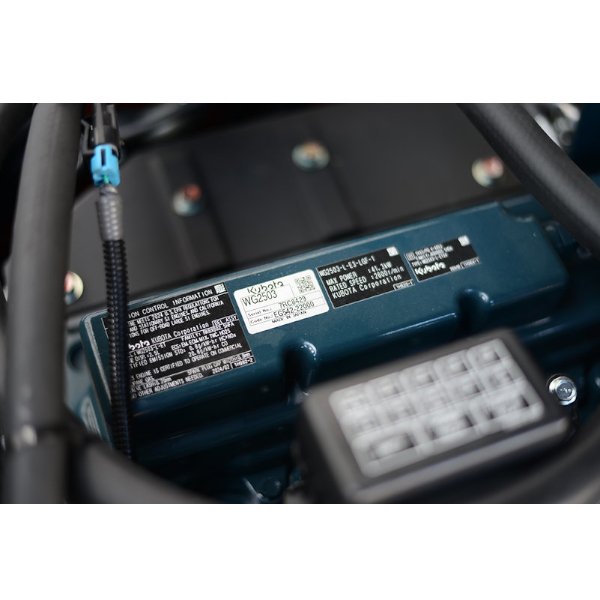

The EKKO EK40TLP Liquid Propane 4 Wheel Forklift is built to handle all your material handling needs across warehousing, distribution, and industrial operations. Engineered with high durability and reliability, this unit features a powerful Kubota or PSI 2.4L engine and meets Tier 4 EPA compliance standards. With its robust construction, efficient performance, and competitive pricing, the EK40TLP provides a cost-effective solution that does not compromise on quality.
EK40TLP Liquid Propane 4 Wheel Forklift Main Features
- The operating space is enlarged and features a heightened overhead guard, utilizing a large arc-shaped front leg.
- A semi-suspension seat, a small steering wheel, electro-hydraulic direction-changing, and an automobile-type double combined switch effectively enhance the driving comfort level.
- The cushion connection and the entire suspension cab can effectively absorb the vibrations of the truck.
- Lowering a damping device inside the lifting system reduces the mast’s shock and vibration, avoiding noise caused by goods falling to the ground.
- Small turning radius makes steering flexible and easy.
- With an optimized hydraulic system, the truck is more energy-efficient and has lower fuel consumption.
- The engine satisfies the CARB 4 regulation
- Cascade® Side Shift
- Shimadzu® 4-Way Valve (Pre-Plumbed)
Liquid Propane 4 Wheel Forklift Specifications
| Specification | Unit | Value |
|---|---|---|
| Model | EK40TLP | |
| Drive type | LPG | |
| Type of operation | Propane | |
| Load Capacity | LBS | 8500 |
| Load Center | in | 24 |
| Lift height | in | 185 |
| Wheelbase | in | 70.8 |
| Service Weight | LBS | 11,519 |
| Tire material | Solid Pneumatic Tire | |
| Wheel | 250-15-16PR/6.50-10-10PR | |
| Service Brake | Hydraulic Floor Pedal | |
| Overall width | in | 52.9 |
| Overall length with forks | in | 157 |
| Overall length without forks | in | 112 |
| Min ground clearance (mast) | in | 4.7 |
| Max traveling speed (loaded/unloaded) | mph | 10.3/11.2 |
| Mast Overall height | in | 86.2 |
| Free lifting height | in | 37.9 |
| Overall Height with forks lifted | in | 234 |
| Fork Size | in | 42 x 5.9 x 1.9 |
| Battery | V / Ah | 12/60 |
| Engine Model | PSI 2.4 | |
| Engine rated power | HP / rpm | LPG 63 / 2700 |
