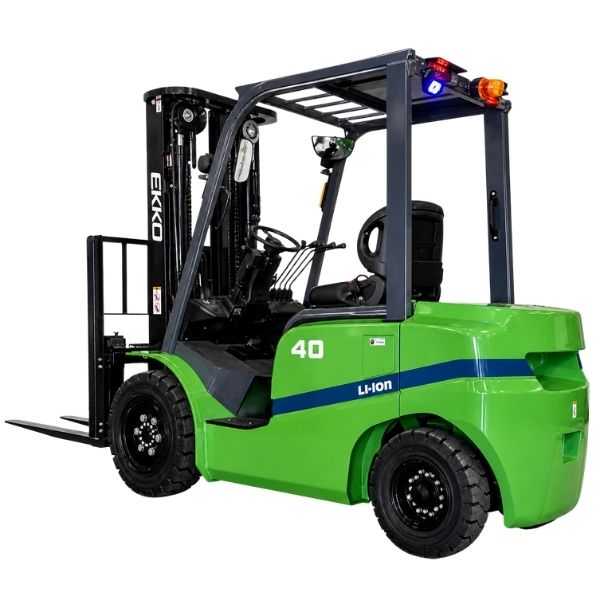

EKKO EK40GT-Li 4-Wheel Electric Forklift
The EKKO EK40GT-Li 4-Wheel Electric Forklift is engineered to meet all your material handling needs with power, precision, and reliability. Ideal for a wide range of applications—including loading and unloading trucks, managing loading docks, organizing stock rooms, and operating on manufacturing floors and in warehouses—this forklift delivers consistent and efficient performance in demanding environments.
Built with high-quality steel and durable components, the EK40GT-Li is equipped with robust drive systems designed to withstand tough terrain, intensive usage, impacts, and frequent directional changes. With its solid 4-wheel design and electric power, it offers enhanced stability, maneuverability, and confidence for any application.
EK40GT-Li 4-Wheel Electric Forklift Main Features
- Load Capacity: 8,500 lbs
- Raised Height: 185″ (15.4′)
- Free Lift: 37.9″
- Fork Length: 42.1″
- Solid Pneumatic Tires

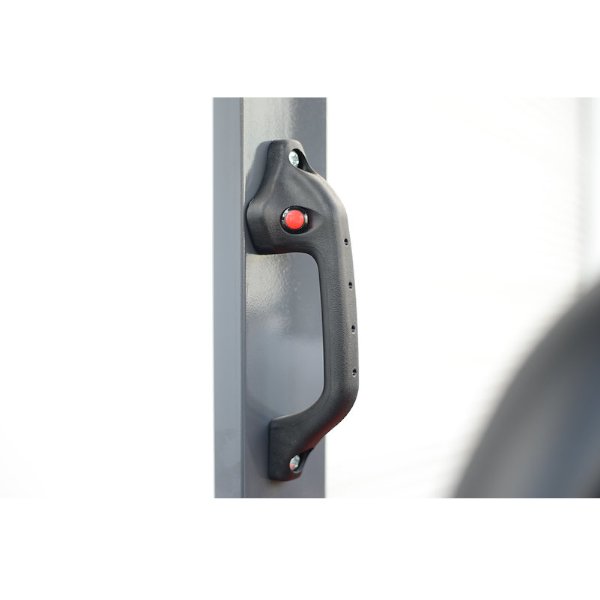

- Ergonomic Handle and Controls
- Steel Construction with Robotic Welding
- 115/173 Ah Lithium Battery
- 3-Phase 480V Charger (Optional 220V & 110V)
- InMotion® Controller
- Cascade® Side Shift

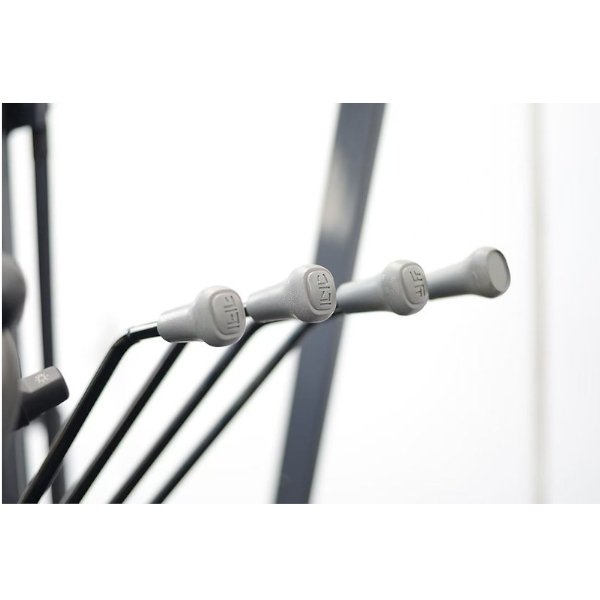

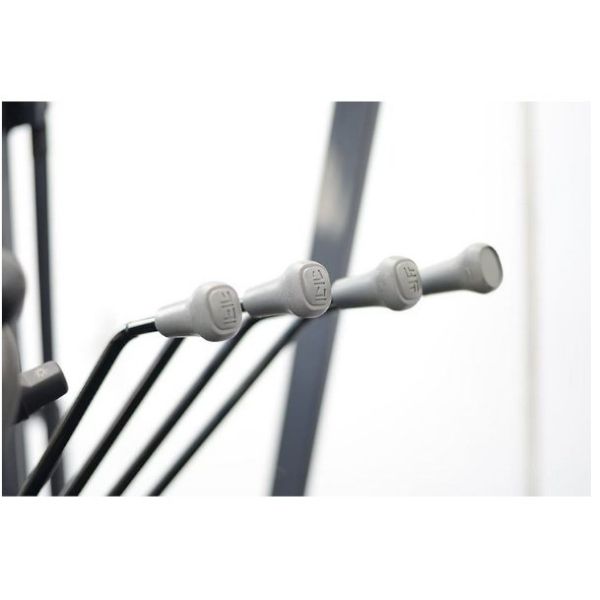

- Shimadzu® 4-Way Valve (Pre-Plumbed)
- 3 Year Limited Warranty
4-Wheel Electric Forklift Specifications
| Specification | Unit | Value |
|---|---|---|
| Model | EK40GT-LI | |
| Drive Type | Lithium Forklift | |
| Type of Operation | Lithium Battery | |
| Load Capacity | lbs | 8500 |
| Load Center Distance | in | 24 |
| Lift Height | in | 185 |
| Wheelbase | in | 70.8 |
| Service Weight | lbs | 11364 |
| Tire Material | Solid Pneumatic Tire | |
| Driving Mode | Seated | |
| Service Brake | Hydraulic Foot Pedal | |
| Overall Width | in | 53.7 |
| Length with Forks | in | 154 |
| Length without Forks | in | 112 |
| Min Outside Turning Radius | in | 99.6 |
| Traveling Speed (Laden/Unladen) | mph | 9.3 / 9.3 |
| Ground Clearance (at Mast) | in | 4.7 |
| Lowered Mast Height | in | 86.2 |
| Free Lift | in | 37.9 |
| Tilt (Forward/Backward) | 6/6 | |
| Side Shift | Cascade | |
| Engine Mode | InMotion Controller | |
| Battery | V / Ah | 115 / 173 (Lithium) |
