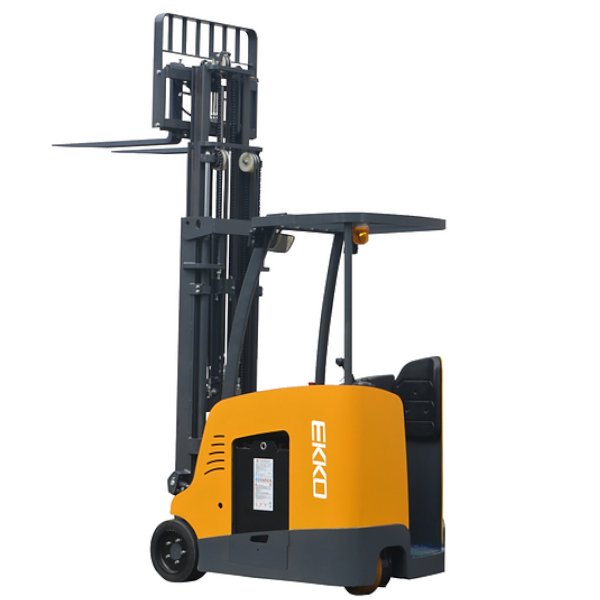

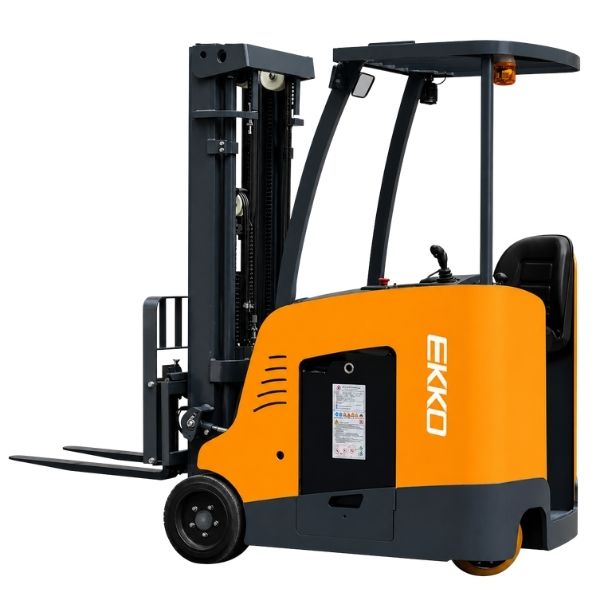

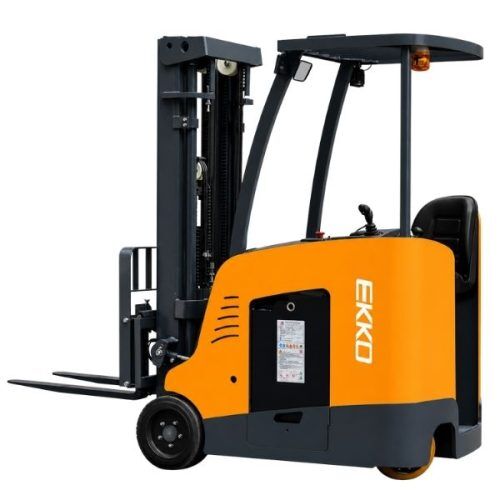

EKKO EK18RFL Stand-up Rider Forklift
The EKKO EK18RFL Stand-up Rider Forklift is built to handle all your material handling needs with strength, precision, and efficiency. Ideal for loading and unloading trucks, managing loading docks, stocking rooms, operating on manufacturing floors, and optimizing warehouse logistics, this forklift delivers reliable performance across a wide range of industrial settings.
Constructed with high-quality steel and engineered with durable components, the EK18RFL features rugged drive systems designed to withstand tough terrain, heavy usage, impacts, and frequent directional changes. This forklift offers confident, dependable operation for any application, ensuring productivity, safety, and durability every step of the way.

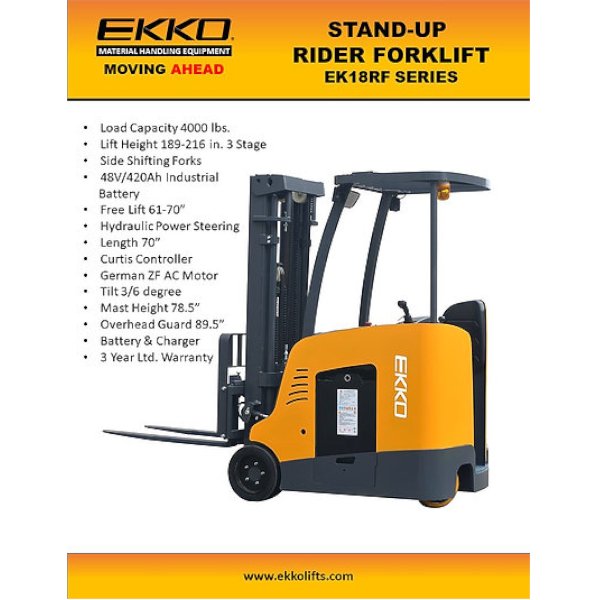

EK18RFL Stand-up Rider Forklift Main Features
- Load Capacity 4000 lb
- Raised Height 189″ (15.75ft)
- Side Shifting Forks
- Adjustable Forks 9.4-35.6″
- Fork Length 45.3“
- Hydraulic Steering
- Curtis Instrument Controller
- German AC Drive Motor
- Battery 48V/420Ah (included)
- Charger 48V/65A 480V
- Solid Cushion Load Tires
- Polyeurathane Drive Tires
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger 48V/65A
- 3 Year Limited Warranty
Stand-up Rider Forklift Specifications
| Specification | Unit | Value |
|---|---|---|
| Model | EK18RFL | |
| Power Unit | Electric | |
| Operation Type | Rider | |
| Loading Capacity (Q) | lbs | 4000 |
| Load Center (c) | in | 24 |
| Axle Centre to Fork Face (x) | in | 11.5 |
| Wheelbase (y) | in | 48.8 |
| Service Weight with Battery | lbs | 7870 |
| Wheels Type | Solid wheel | |
| Driving Wheel Size (F w) | in | 16 7-10.5 (15.98 7.01 10.51) |
| Bearing Wheel Size (F w) | in | 13.5 5.2 |
| Wheels, Number (Front/Rear) | 1 / 2 | |
| Track Width (b10) | in | 35.04 |
| Mast/Fork Tilt (Fwd/Bwd, a/b) | 3 / 5 | |
| Lowered Mast Height (h1) | in | 82.6 |
| Free Lift Height (h2) | in | 52.17 |
| Lift Height (h3) | in | 188.98 |
| Extended Mast Height (h4) | in | 220.87 |
| Height of Overhead Guard (h6) | in | 90.08 |
| Height of Seat/Platform (h7) | in | 9.06 |
| Overall Length (l1) | in | 117.78 |
| Length to Fork Face (l2) | in | 72.52 |
| Overall Width (b1/b2) | in | 42.52 / 42.13 |
| Fork Dimensions (s/e/l) | in | 1.58 / 4.72 / 45.28 |
| Width of Forks (b3) | in | 36.22 |
| Ground Clearance under Mast (m1) | in | 2.95 |
| Min. Ground Clearance (m2) | in | 3.86 |
| Aisle Width Requirement (Ast) | ft | 10.5 |
| Min. Turning Radius (Wa) | in | 58.5 |
| Travel Speed (Laden/Unladen) | km/h | 12 / 13 |
| Lifting Speed (With/Without Load) | mm/s | 250 / 400 |
| Lowering Speed (With/Without Load) | mm/s | 240 / 258 |
| Climbing Ability (With/Without Load) | % | 6 / 10 |
| Service Brake | Hydraulic | |
| Drive Motor (60 min rating) | kW | 6 |
| Lift Motor Rating (S3 15%) | kW | 7.7 |
| Battery DIN Std. | No | |
| Battery Voltage/Capacity | V/Ah | 48 / 420 |
| Battery Weight ( 5%) | lbs | 1570 |
| Power Consumption (VDI) | mm | 38 18.1 29.53 |
| Drive Control Type | AC | |
| Noise Level at Operator’s Ear | dB(A) | ≤70 |
| Steering Type | Hydraulic |
