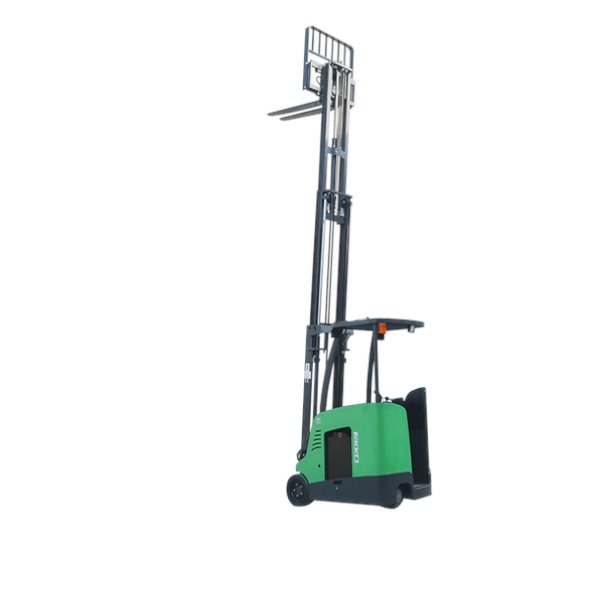

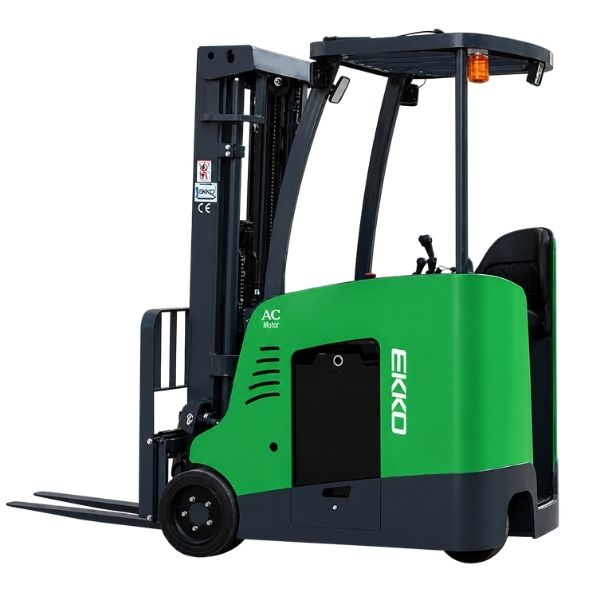

EKKO EK18RF-Li Stand-up Rider Forklift
The EKKO EK18RF-Li Stand-up Rider Forklift is engineered to meet all your material handling demands with precision, efficiency, and ease. Perfect for loading and unloading trucks, navigating loading docks, organizing stock rooms, and managing workflows on manufacturing floors and in warehouses, this forklift is ideal for fast-paced environments where agility and performance are key.
Crafted from high-quality steel and equipped with durable components, the EK18RF-Li features robust drive systems built to endure rough terrain, heavy usage, impacts, and frequent directional changes. Its stand-up rider design offers improved operator visibility and control, delivering confident and reliable performance across a wide range of applications.
EK18RF-Li Stand-up Rider Forklift Main Features
- Load Capacity 4000 lb
- Raised Height 216″ (18ft)
- Side Shift
- Adjustable Forks 9.4-35.6″
- Fork Length 45.3“
- Hydraulic Steering
- Curtis Instrument Controller
- German AC Drive Motor
- Battery 48V/350Ah Lithium
- Solid Cushion Load Tires
- Polyurethane Drive Tires
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger 440V three-phase
- 3 Year Limited Warranty

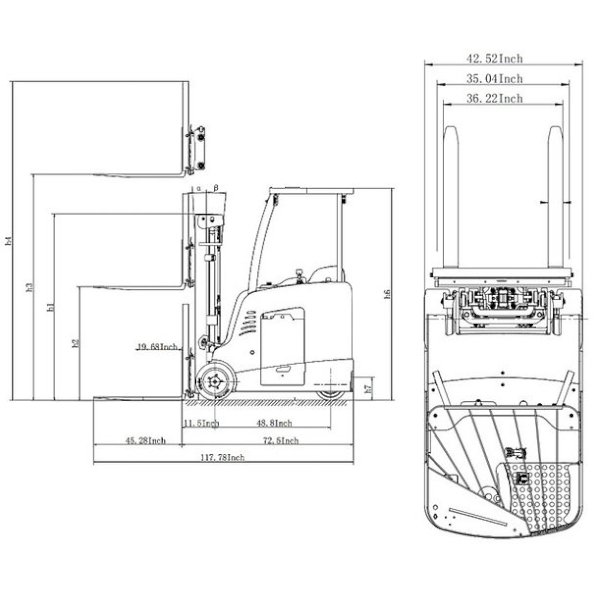

Stand-up Rider Forklift Specifications
| Specification | Unit | Value |
|---|---|---|
| Model | EK18RF-Li | |
| Power Unit | Electric | |
| Operation Type | Rider | |
| Loading Capacity | lbs | 4000 |
| Load Center | in | 24 |
| Axle Centre to Fork Face | in | 11.5 |
| Wheelbase | in | 48.8 |
| Service Weight (with battery) | lbs | 7940 |
| Wheels Type | Solid Wheel | |
| Driving Wheel Size | in | 16 7-10.5 |
| Bearing Wheel Size | in | 13.5 5.2 |
| Wheels (Front/Rear) | 1 / 2 | |
| Track Width | in | 35.04 |
| Mast/Fork Carriage Tilt (Fwd/Bwd) | 3/5 | |
| Lowered Mast Height | in | 91.77 |
| Free Lift Height | in | 61.34 |
| Lift Height | in | 216.54 |
| Extended Mast Height | in | 248.43 |
| Height of Overhead Guard | in | 90.08 |
| Height of Seat/Platform | in | 9.06 |
| Overall Length | in | 117.78 |
| Length to Fork Face | in | 72.52 |
| Overall Width | in | 42.52 / 42.13 |
| Fork Dimensions (Thick/Width/Length) | in | 1.58 / 4.72 / 45.28 |
| Width of Forks | in | 36.22 |
| Ground Clearance Under Mast | in | 2.95 |
| Min. Ground Clearance | in | 3.86 |
| Aisle Width Requirement | ft | 10.5 |
| Min. Turning Radius | in | 58.5 |
| Travel Speed (Laden/Unladen) | km/h | 12/13 |
| Lifting Speed (With/Without Load) | mm/s | 250 / 400 |
| Lowering Speed (With/Without Load) | mm/s | 240 / 258 |
| Climbing Ability (With/Without Load) | % | 6/10 |
| Service Brake | Hydraulic | |
| Drive Motor (60 min rating) | kW | 6 |
| Lift Motor (S3 15%) | kW | 7.7 |
| Battery Type | Lithium (DIN 43531/35/36 No) | |
| Battery Voltage / Capacity | V / Ah | 48V / 350Ah |
| Power Consumption (VDI) | mm | 38 18.1 29.53 |
| Type of Drive Control | AC | |
| Noise Level at Operator’s Ear | dB(A) | ≤70 |
| Steering Type | Hydraulic Steering |
