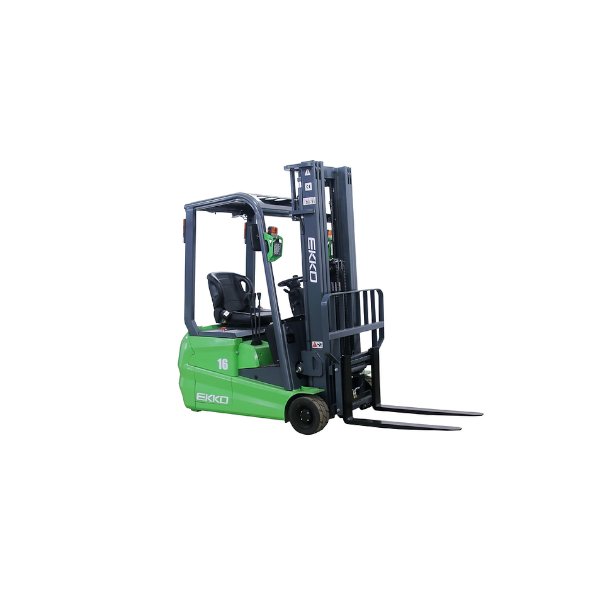

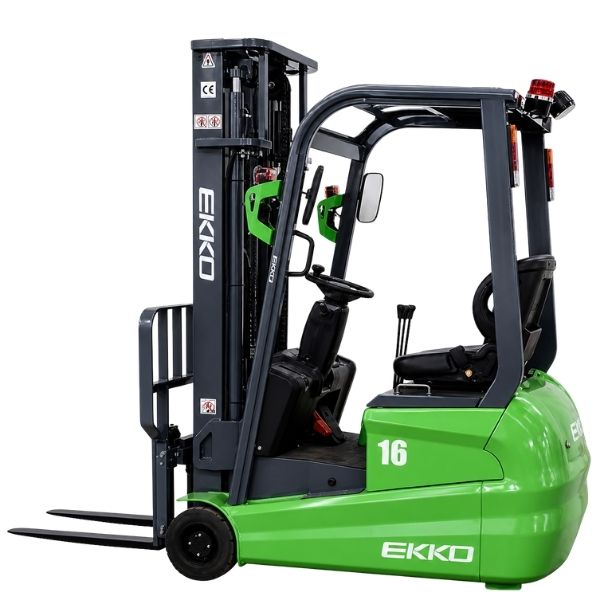

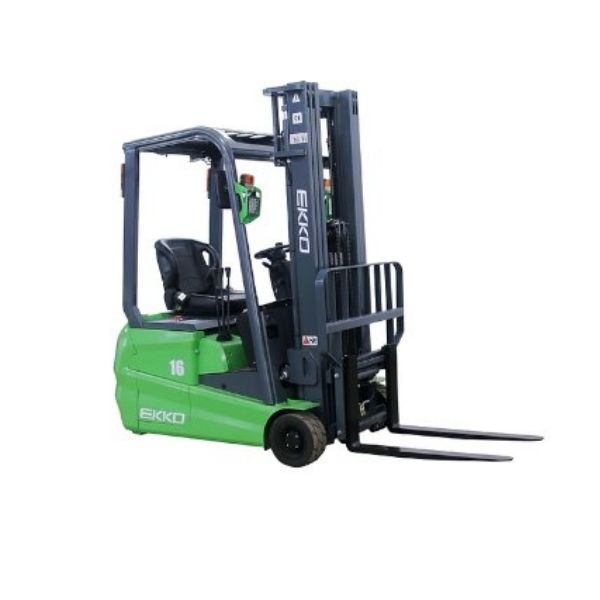

EKKO EK16A-189Li 3-Wheel Lithium Forklift
The EKKO EK16A-189Li 3-Wheel Lithium Forklift is designed for efficiency in small aisles, tight spaces, and budget-conscious operations. Perfect for indoor use on flat surfaces, it excels in environments such as loading docks, stock rooms, manufacturing floors, and warehouses.
Crafted from high-quality steel and built with durable components, the EK16A-189Li features robust drive systems that can handle directional changes, impacts, and heavy use with ease. Whether you’re loading and unloading trucks or navigating narrow storage areas, this lithium-powered forklift delivers reliable performance and long-lasting strength across all applications.
EK16A-189Li 3-Wheel Lithium Forklift Main Features
- Load Capacity: 3,500 lbs
- Raised Height: 189″ (15.75 ft)
- Free Lift: 31.5″
- Fork Length: 42.1″
- Adjustable Forks: 7.9″ – 26″
- 24V AC Drive Motor
- 3.3 kW Lift Motor
- Zapi®Controller
- Cushion Tires
- Hydraulic Power Steering (HPS)
- Steel Construction with Robotic Welding
- Charger Included
- Battery Included
- 3-Year Limited Warranty
3-Wheel Lithium Forklift Specifications
| Specification | Unit | Value |
|---|---|---|
| Model | EK16A-189Li | |
| Drive Type | Lithium Forklift | |
| Type of Operation | Rider | |
| Load Capacity | lbs | 3500 |
| Load Center Distance | in | 24 |
| Service Weight | lbs | 4650 |
| Wheel Base | in | 49.2 |
| Lifting Height | in | 189 |
| Free Lifting Height | in | 31.5 |
| Lowered Mast Height | in | 81.3 |
| Side Shifting Forks | Yes | |
| Overall Length | in | 65 |
| Overall Width | in | 42.1 |
| Fork Size (Thick/Width/Length) | in | 1.4 / 4 / 42.1 |
| Fork Adjust Width | in | 7.9 – 26 |
| Turning Radius | in | 58.9 |
| Gradient Performance (Laden/Unladen) | % | 6/10 |
| Lift Speed (Laden/Unladen) | in/s | 4.71 / 10.2 |
| Lowering Speed (Laden/Unladen) | in/s | 11.8 / 15.7 |
| Charger | V / A | 24 / 50 |
| Driving Motor | AC | |
| Lifting Motor | kW | 3.3 |
| Tilt (Forward/Backward) | 3/6/2025 | |
| Battery | V / Ah | 24 / 200 (Lithium) |
