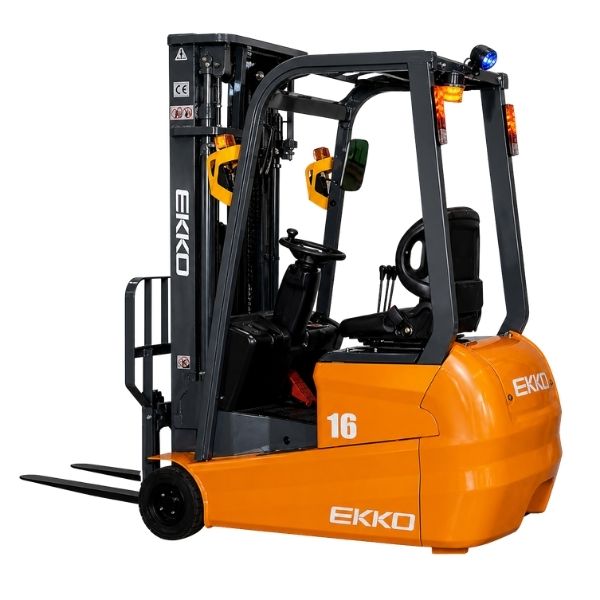

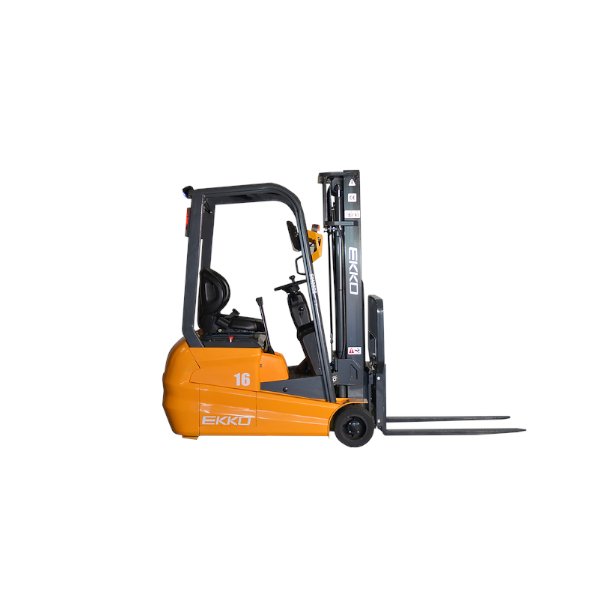

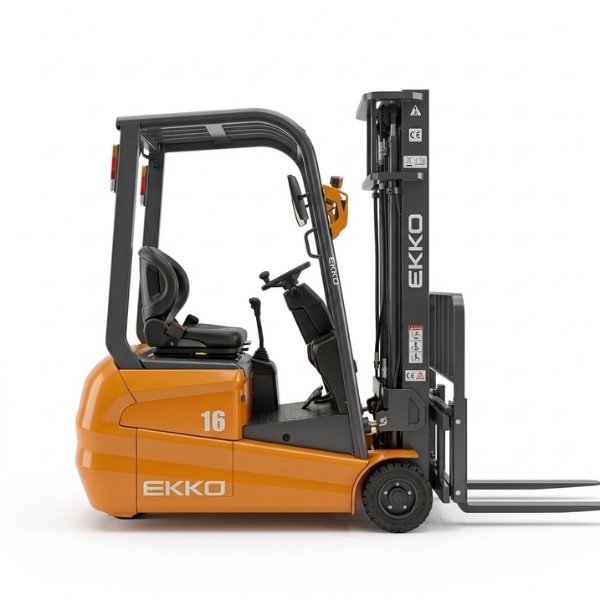

EKKO EK16A-138 3 Wheel Electric Forklift
The EKKO EK16A-138 3 Wheel Electric Forklift is designed for efficiency in small aisles, confined spaces, and cost-effective operations. Ideal for loading and unloading trucks, maneuvering through loading docks, stock rooms, manufacturing floors, and warehouses, this forklift delivers reliable performance in tight indoor environments.
Built from high-quality steel and equipped with durable components, the EK16A-138 features robust drive systems capable of handling frequent usage, impacts, directional changes, and flat indoor terrains. Recommended for indoor use on smooth surfaces, this compact and agile forklift offers dependable handling and productivity with confidence and assurance in every application.
EK16A-138 3 Wheel Electric Forklift Main Features
- Load Capacity 3500 lb
- Raised Height 138″ (11.5ft)
- Free Lift 34.4″

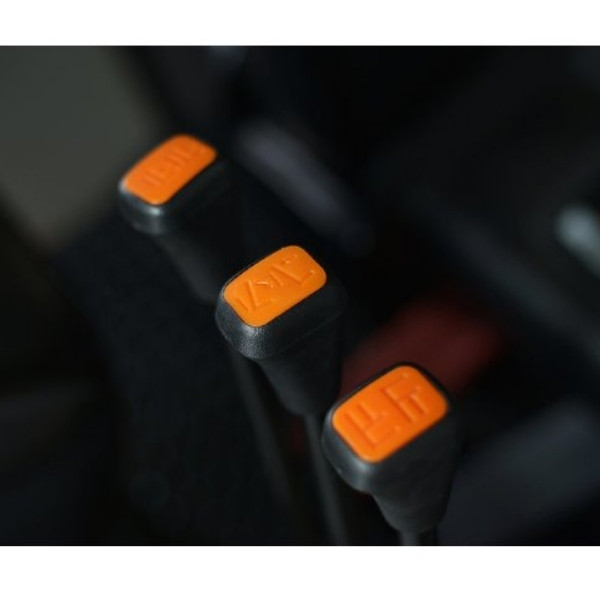

- Side Shift
- Adjustable Forks 7.9-26″
- Fork Length 42.1″
- Zapi Controller
- Tilt 3/6 Degree
- 24V AC Drive Motor
- 3.3 kw Lift Motor
- Cushion Tires
- HPS (Hydraulic Power Steering)
- Steel Construction
- Robotic Welding
- Charger Included
- 24V/320AH Battery Included
3 Wheel Lithium Forklift Specifications
| Specification | Unit | Value |
|---|---|---|
| Model | EK16A-138 | |
| Lift | Electric | |
| Drive | Electric | |
| Load Capacity | lbs | 3500 |
| Load Center Distance | in | 20 |
| Wheel Base | in | 49.2 |
| Lifting Height | in | 138 |
| Free Lifting Height | in | 34.4 |
| Lowered Mast Height | in | 86.6 |
| Mast/Fork Carriage Tilt (Forward/Backward) | 3/6 | |
| Side Shifting Forks | 3-way valve | |
| Overall Length | in | 107.1 |
| Overall Width | in | 42.1 |
| Fork Size (Thick/Width/Length) | in | 1.4 / 4 / 42.1 |
| Fork Adjust Width | in | 7.9 – 26 |
| Turning Radius | in | 58.9 |
| Max Gradient Performance (Laden/Unladen) | % | 6/10 |
| Lift Speed (Laden/Unladen) | in/s | 4.71 / 10.2 |
| Lowering Speed (Laden/Unladen) | in/s | 11.8 / 15.7 |
| Charger | V / A | 24 / 50 |
| Driving Motor | AC | |
| Lifting Motor | kW | 3.3 |
| Battery Voltage | V / Ah | 24 / 320 |
| Service Weight | lbs | 5020 |
