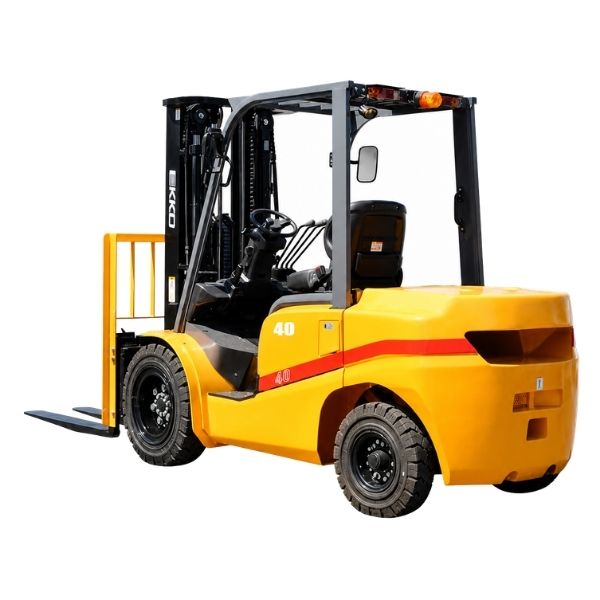

EKKO EK30D Diesel Forklift
The EKKO EK30D Diesel Forklift is engineered to meet all your material handling needs in warehousing, logistics, and distribution environments. Built with high durability and superior performance in mind, a reliable Mitsubishi 4EG engine powers this forklift, meeting Tier 4 EPA compliance standards. Combining robust construction with competitive pricing, the EK30D offers exceptional value for businesses seeking efficiency and dependability in their operations.
EKKO EK30D Diesel Forklift Main Features
- The operating space is enlarged and features a heightened overhead guard, utilizing a large arc-shaped front leg.
- The multifunctional suspended seat enhances driver support, reduces vibration, and evenly distributes the driver’s weight.

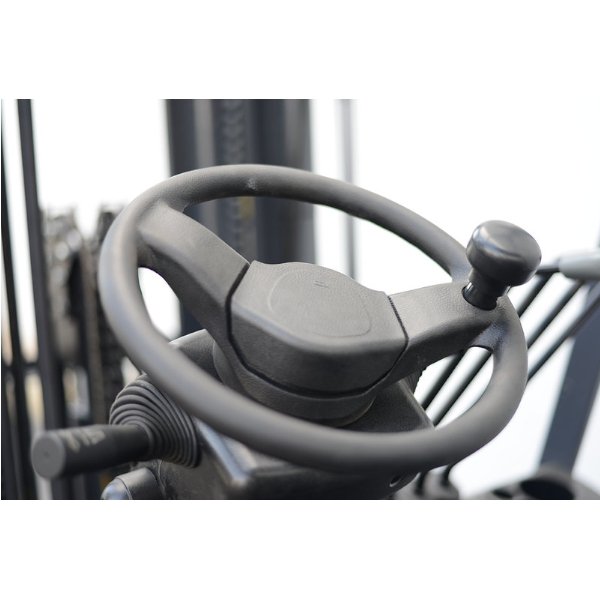

- The steering wheel adjusting mechanism is positioned in the appropriate location, allowing for easy adjustment.
- By using an impedance-composed muffler, this truck reduces the level of sound output.
- Cascade® Side Shift
- Shimadzu® 4-Way Valve (Pre-Plumbed)
EK30D Diesel Forklift Specifications
| Specification | Unit | Value |
|---|---|---|
| Model | EK30D | |
| Drive type | DIESEL | |
| Type of operation | DIESEL | |
| Load Capacity | LBS | 6,000 |
| Load Center | in | 24 |
| Lift height | in | 185 |
| Wheelbase | in | 66.9 |
| Service Weight | LBS | 10,108 |
| Tire material | Solid Pneumatic Tire | |
| Wheel | 28×9-15-12PR/6.50-10-10PR | |
| Service Brake | Hydraulic Floor Pedal | |
| Overall width | in | 48.2 |
| Overall length with forks | in | 151 |
| Overall length without forks | in | 106 |
| Min ground clearance (mast) | in | 4.7 |
| Max traveling speed (loaded/unloaded) | mph | 11 / 12.1 |
| Mast Overall height | in | 86.2 |
| Free lifting height | in | 37.9 |
| Overall Height with forks lifted | in | 234 |
| Fork Size | in | 42 x 4.9 x 1.7 |
| Battery | V / Ah | 12/80 |
| Engine Model | Mitsubishi 4EG | |
| Engine rated power | HP / rpm | Diesel 49 / 2250 |
