Abaco Self-Locking Dolly

$629.40$663.15

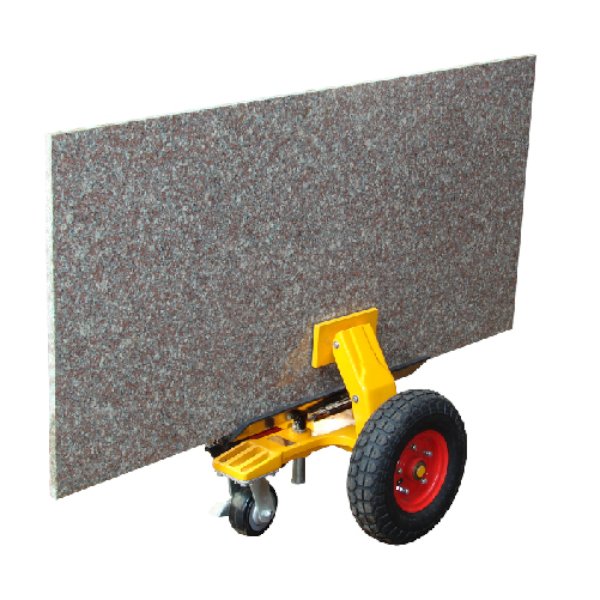

Abaco Self-Locking Dolly is a Heavy Duty trolley with two pneumatic tires wheels 13 3/4″ x 4″ (350mm x 100mm) in diameter or optional pressurized rubber types and self-locking jaws. It is an all terrain trolley

Clear

Abaco Self-Locking Dolly

Abaco Self-Locking Dolly is a Heavy Duty trolley with two pneumatic tires wheels 13 3/4″ x 4″ (350mm x 100mm) in diameter or optional pressurized rubber types and self-locking jaws. It is an all terrain trolley.

The rubber is vulcanized to the bottom and sides of the dolly to avoid chipping the edges of finished work pieces. They are designed with self-locking jaws for maneuvering stone slabs around the shop, warehouse, or work site.

The self- locking jaws’ clamping strength is proportional to the weight of the slab, therefore the heavier the slab, the larger the clamping force will be.

Among the Abaco Self-Locking Dolly main technical specifications, we find:

SKULength Inches (mm)Width Inches (mm)Height Inches (mm)Grip Range Inches (mm)Net Weight Pounds (kg)W.L.L. Pounds (kg)
SLT13M223 3/4 (600)20 1/2 (520)18 1/2 (470)3/8 – 4 (10 – 100)73 (33)880 (400)
SLT13M319 1/4 (490)20 1/2 (520)18 1/2 (470)3/8 – 4 (10 – 100)63.8 (29)880 (400)
SLT13M419 1/4 (490)19 5/8 (500)17 7/8 (455)3/8 – 4 (10 – 100)68.2 (31)880 (400)

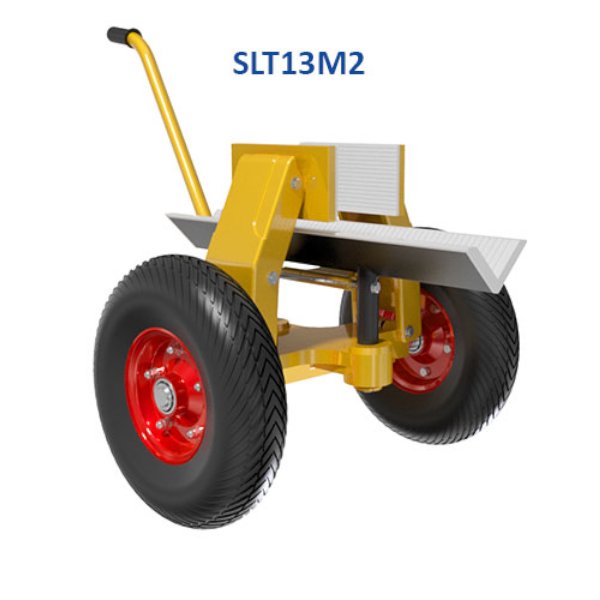

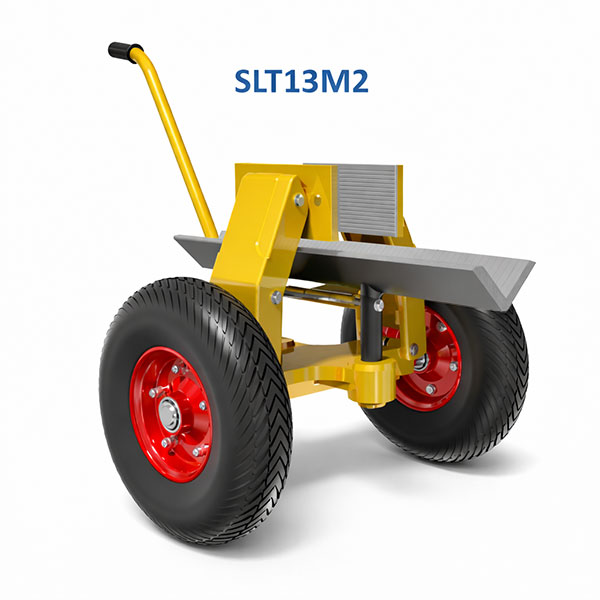

[info]M2 has Pneumatic Tires and a Third Wheel
M3 has Pneumatic Tires and a Kick Stand
M4 has Solid Rubber Tires and a Kick Stand[/info]

Weight64 lbs
Dimensions21 × 22 × 20 in
Select Self-Locking Dollie Type

SLT13M4 Solid Rubber Tires, SLT13M3 Pneumatic Tires, SLT13M2 Pneumatic Tires and Caster
