Aardwolf Pump for EOSS

Aardwolf Pump for EOSS

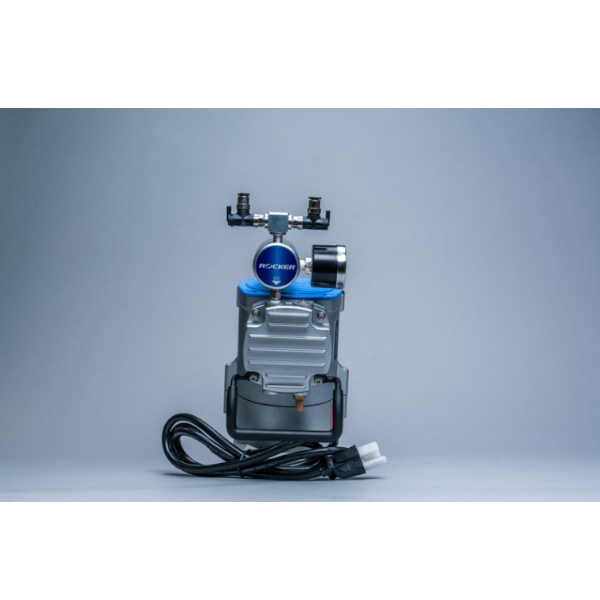

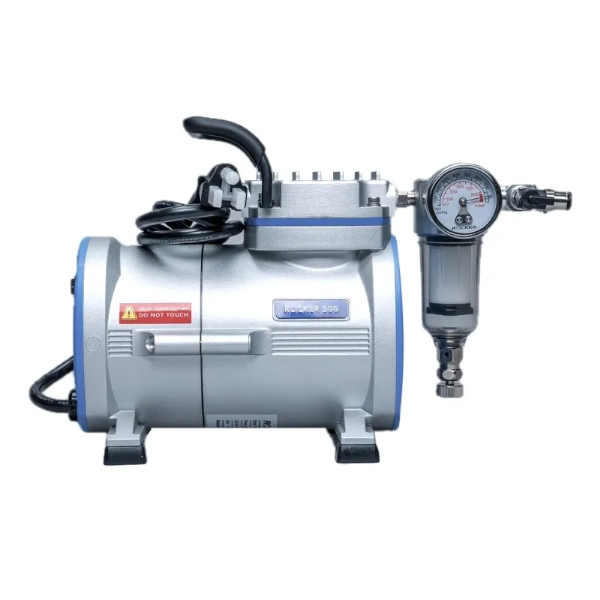

Aardwolf Pump for EOSS is a replacement electric-operated vacuum pump designed for the Aardwolf Electric Joint Setter, an advanced tool used to close gaps and pull together two slabs in stone and glass applications with non-porous surfaces. The pump delivers a maximum vacuum of -630 mm Hg and a maximum flow of 23 l/min, helping maintain an equal vacuum in both pads throughout the joint-setting process for secure, consistent slab alignment. The Electric Joint Setter features a light, compact design, quick operation via the roller nut, two vacuum bases aligned on precision steel guide axles, and four leveling knobs to keep joints flush.

Powered by 220V/50Hz, the pump operates at 1,750 RPM with a 1/8 HP motor and a 50 dB noise level. The system also includes an integrated exhaust valve for vacuum release and two 230 × 190 mm (9″ × 7.5″) vacuum bases. The Aardwolf Electric Joint Setter is sold in a set consisting of two pairs of Joint Setters and an electric-powered vacuum pump.

Main Features

• Replacement electric-operated vacuum pump for the Aardwolf EOSS Electric Joint Setter.
• Maximum vacuum: -630 mm Hg.
• Maximum flow: 23 l/min.
• Powered by 220V/50Hz.
• 1,750 RPM motor rotation.
• 1/8 HP motor.
• 50 dB noise level.
• Supports equal vacuum in both vacuum pads during operation.
• Integrated exhaust valve for vacuum release.
• Designed for stone and glass applications with non-porous surfaces.

Specifications
