Aardwolf Slab Rack Kit

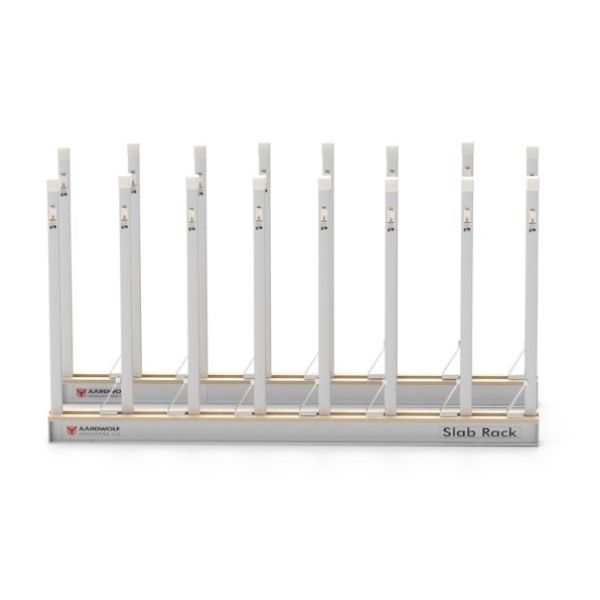

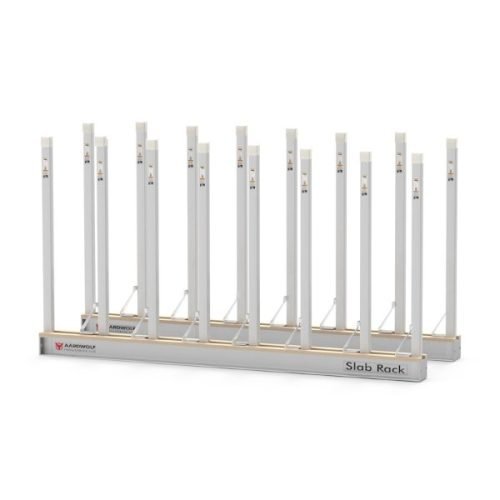

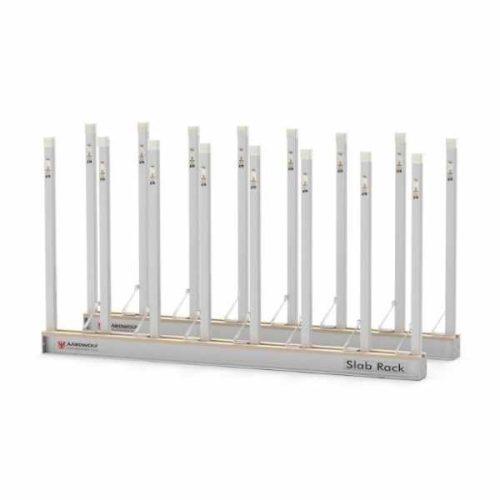

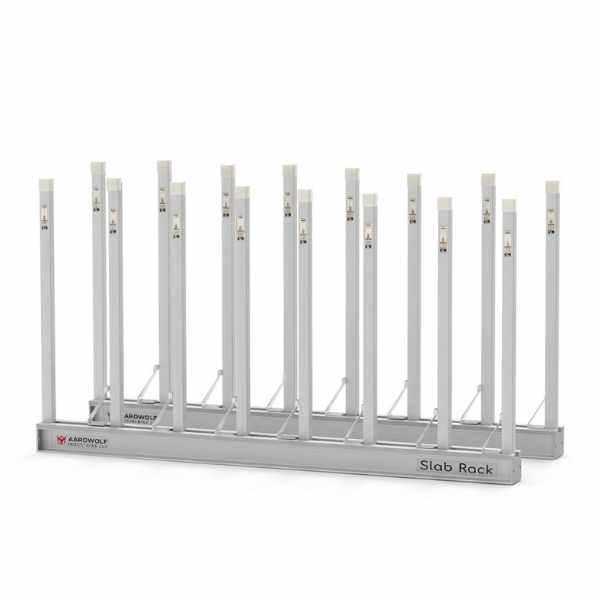

The Aardwolf Slab Rack Kit includes a Slab Rack ASR01, consisting of a pair of galvanized steel rails 9’10” long and galvanized square steel tube posts, plus 16 poles ASR10, 70″ high. The square posts can be positioned anywhere along the rack. All posts are manufactured from square tube steel with a minimum yield strength of 345Mpa, ensuring safety for the vertical storage of slab bundles.
Slab Rack Kit Main Features
Among the features of this marvelous Slab Rack, we find:

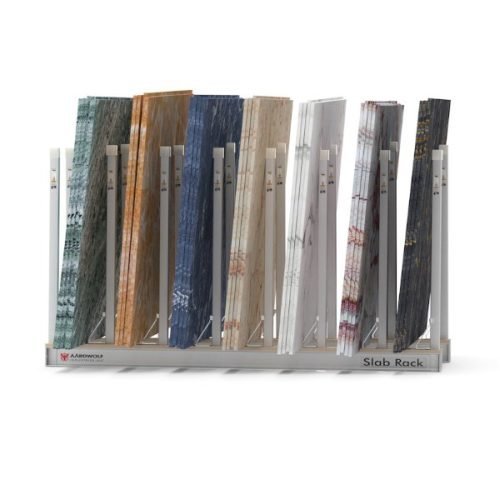

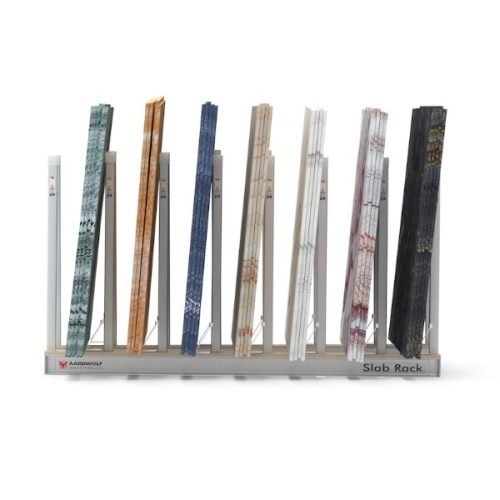

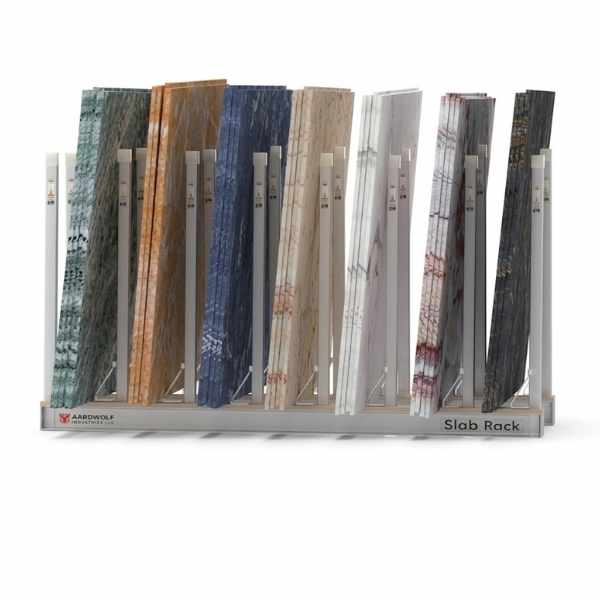

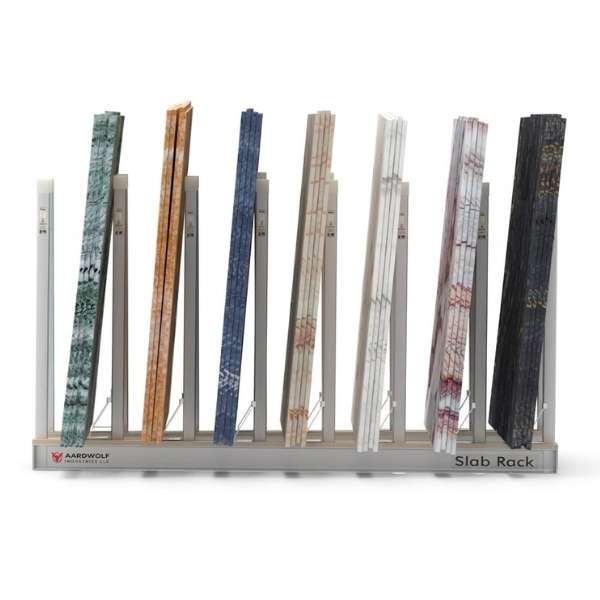

- The maximum number of marble or granite slabs that can be safely stored per bay at a 4° lean depends on the slab thickness and dimensions.
- Aardwolf has developed a simple calculator for users to calculate the slab storage capacity.
- Post is also available in 47 1/4″ and 55″ height.
The fabrication of Aardwolf Slab & Bundle Racks
Aardwolf Slab Rack ASR01 Technical Specifications:
| Feature | Metric (mm-kg) | Imperial (inch-lb) |
|---|---|---|
| Galvanized steel rail | 2979x164x165 | 117.3”x6.4”x6.5” |
| Rack height | 165 | 6.5” |
| Square hole | 52 | 2” |
| Increment | 57 | 2.2” |
| Square tube post | 50 | 2” |
| Posts wall thickness | 5 | 0.2” |
| Square rubber post | 60 | 2.4” |
| Rectangular tube post | 50×25 | 2”x1” |
| Timber battens per rail | 50×25 | 2”x1” |
| Net weight | 78/PCS | 171 |
| Gross weight | 78.3 | 172 |
| Packaging dimension | 2980x165x165 | 117.3”x6.5”x6.5′ |
Aardwolf Slab Rack Pole ASR10 Technical Specifications:
| Feature | Metric (mm-kg) | Imperial (inch-lb) |
|---|---|---|
| Yield strength | 345 MPA | – |
| Wall thickness | 5 mm | 0.2″ |
| Net weight | 12.4 kg | 26.5 lb |
| Gross weight | 12.7 kg | 28 lb |
| Post dimension | 50x50x1800 mm | 2″x2″x70.8″ |
Working Load Limit
You can use the following calculator to determine the Post Storage Capacity.
Calculate Post Storage Capacity
(If your screen is small, you can open the calculator on a new page by clicking here)
Warning: Do not use the Aardwolf Slab Rack Storage Calculator to calculate the storage capacity of competitors’ posts as they may use posts with a different profile and steel of lower yield strength.
