Aardwolf Slab Rack Kit

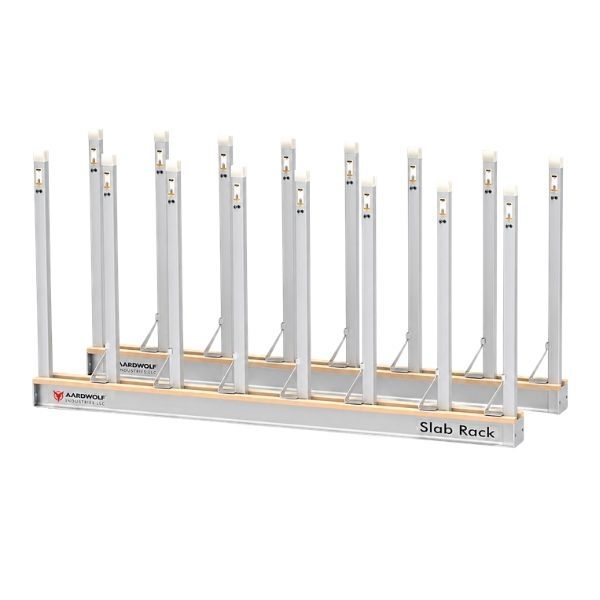

The Aardwolf Slab Rack Kit includes a Slab Rack ASR01, which consists of a pair of galvanized steel rails 9’10” long, together with galvanized square steel tube posts, plus 16 poles ASR08, 55″ high. The square posts can be positioned anywhere along with the rack. All posts are manufactured from square tube steel with a minimum yield strength of 345Mpa, ensuring safety for the vertical storage of slab bundles.
Aardwolf Slab Rack Kit main Features
Among the features of this wonderful Slab Rack, we find:
- The maximum number of marble or granite slabs that can be safely stored per bay at a 4° lean depends on the slab thickness and dimensions.
- Aardwolf has developed a simple calculator specifically for the users to calculate the slab storage capacity.

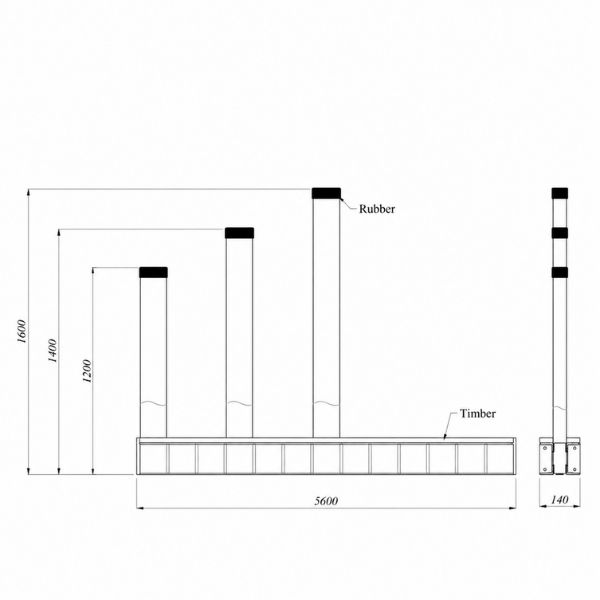

- Post also available in 47 1/4″ and 63″ height.
The fabrication of Aardwolf Slab & Bundle Racks
Aardwolf Slab Rack ASR01 Technical Specifications:
| Feature | Metric (mm-kg) | Imperial (inch-lb) |
|---|---|---|
| Galvanized steel rail | 2979x164x165 | 117.3”x6.4”x6.5” |
| Rack height | 165 | 6.5” |
| Square hole | 52 | 2” |
| Increment | 57 | 2.2” |
| Square tube post | 50 | 2” |
| Posts wall thickness | 5 | 0.2” |
| Square rubber post | 60 | 2.4” |
| Rectangular tube post | 50×25 | 2”x1” |
| Timber battens per rail | 50×25 | 2”x1” |
| Net weight | 78/PCS | 171 |
| Gross weight | 78.3 | 172 |
| Packaging dimension | 2980x165x165 | 117.3”x6.5”x6.5′ |
Aardwolf Slab Rack Pole ASR08 Technical Specifications:
| Feature | Metric (mm-kg) | Imperial (inch-lb) |
|---|---|---|
| Yield strength | 345Mpa | – |
| Wall thickness | 5 | 0.2” |
| Net weight | 9.8 | 21.6″ |
| Gross weight | 10 | 22″ |
| Post dimension | 50 x 50 x 1,400 | 2″ x 2″ x 55.1″ |
Working Load Limit
You can use the following calculator to determine the Post Storage Capacity.
Calculate Post Storage Capacity
(If your screen is small, you can open the calculator on a new page by clicking here)
Warning: Do not use the Aardwolf Slab Rack Storage Calculator to calculate the storage capacity of competitors’ posts as they may use posts with a different profile and steel of lower yield strength.
