Aardwolf Bundle Rack Kit

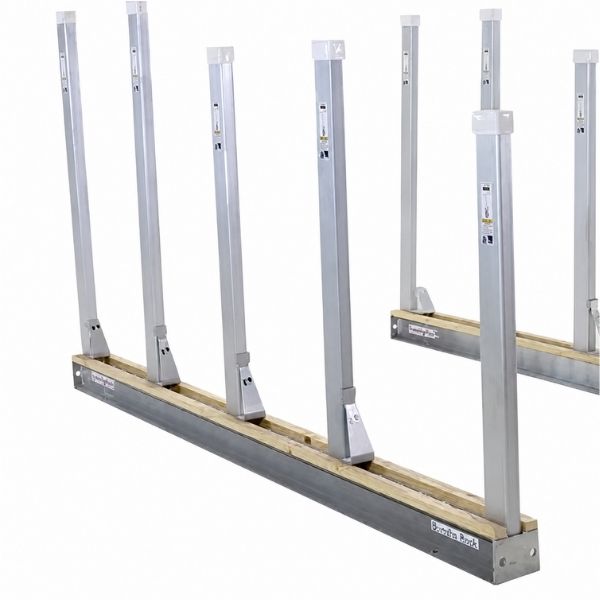

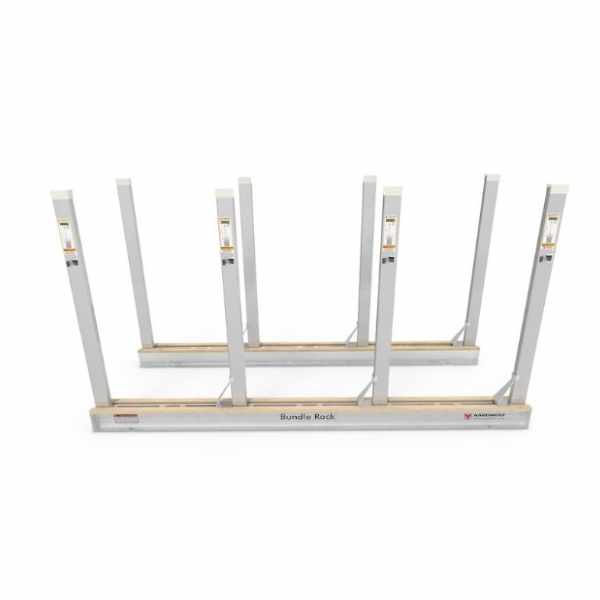

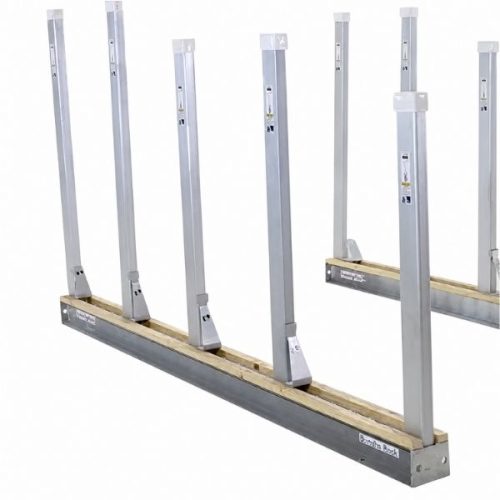

With this kit, you will get all you need to build your Bundle Rack: the Aardwolf Bundle Rack ABR01, which consists of a pair of galvanized steel rails 3m or 9’10” long, plus 8 Bundle Rack Poles ABR07, 55″ High. The rectangular poles can be positioned anywhere along with the rack. All posts are manufactured from rectangular tube steel with a minimum yield strength of 345Mpa, with 5mm wall thickness, ensuring safety for the vertical storage of slab bundles.
Aardwolf Bundle Rack Kit Main Features
Among the features of this wonderful Bundle Rack, we find:
- The maximum number of marble or granite slabs that can be safely stored per bay at a 4° lean depends on the slab thickness and dimensions
- Aardwolf has developed a simple calculator specifically to calculate the slab storage capacity, which you can access from the bottom of the page
- Beyond the 8 includes Poles, there are other options, like 47″, and 63“.
The fabrication of Aardwolf Slab & Bundle Racks
Aardwolf Bundle Rack ABR01 Technical Specifications:
| Feature | Metric (mm-kg) | Imperial (inch-lb) |
|---|---|---|
| Galvanized steel rail | 2925x164x165 | 115.1”x6.4”x6.5” |
| Rack height | 165 | 6.5” |
| Rectangular hole | 101.5×52 | 4×2” |
| Increment | 111.5 | 4.4” |
| Rectangular tube post | 100×50 | 3.9”x2” |
| Posts wall thickness | 5 | 0.2” |
| Rectangular rubber post caps | 100×50 | 3.9”x2” |
| Timber battens per rail | 50×25 | 2”x1” |
| Net weight | 77.7/PCS | 171 |
| Gross weight | 78 | 171 |
| Packaging dimension | 2925x165x165 | 115”x6.5”x6.5” |
Heavy Duty Post ABR07 Technical Specifications:
| Feature | Metric (mm-kg) | Imperial (inch-lb) |
|---|---|---|
| Wall thickness | 5 | 0.2” |
| Yield strength | 345Mpa | – |
| Net weight | 14.7 | 32.4 |
| Gross weight | 14.8 | 32.6 |
| Post dimension | 100x50x1,400 | 3.9”x2”x55.1” |
Working Load Limit
You can use the following calculator to determine the Post Storage Capacity.
Calculate Post Storage Capacity
(If your screen is small, you can open the calculator in a new page by clicking here)
Warning: Do not use the Aardwolf Slab Rack Storage Calculator to calculate the storage capacity of competitors’ posts as they may use posts with a different profile and steel of lower yield strength.
