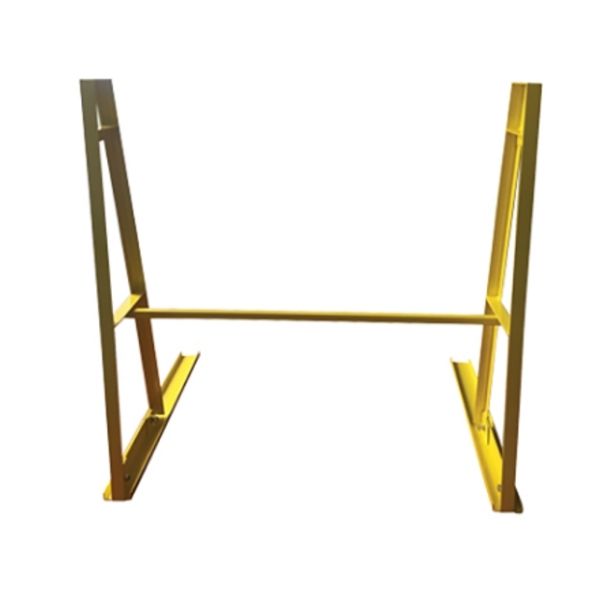

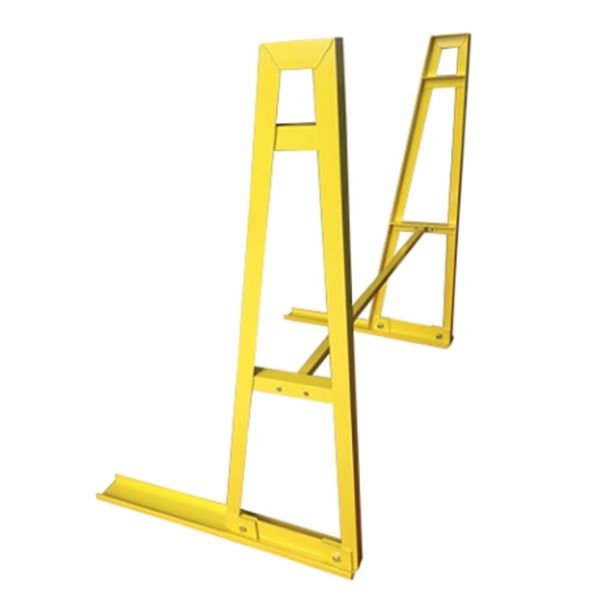

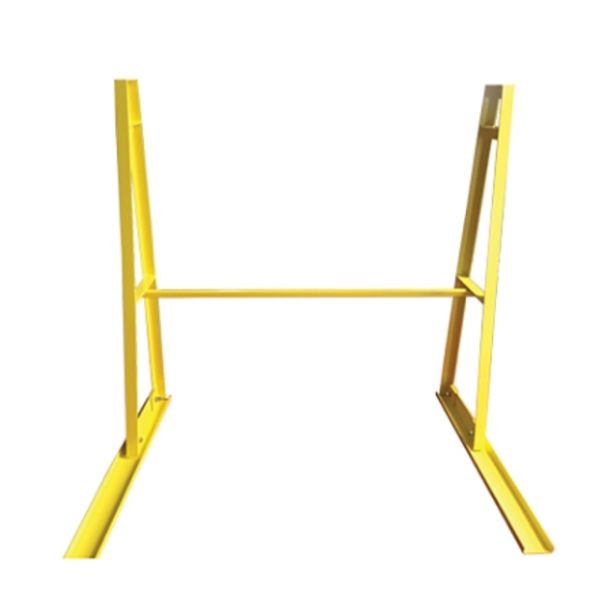

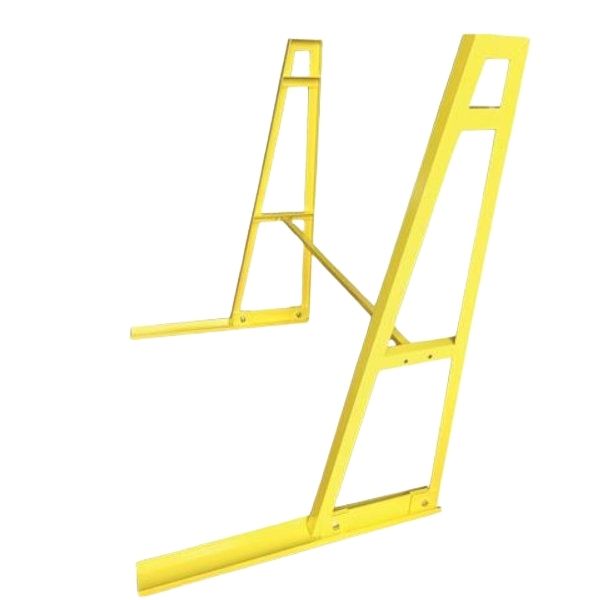

Weha Single Sided A-Frame
Weha Single-Sided A-Frame with Crossbar is made to support granite, marble, engineered stone, quartz, quartzite, and all other sheet materials. Its Storage Racks are made to hold full bundles of both 2cm and 3 cm material. It Storage Racks are made to be placed against a wall near saws, Jib Cranes, work areas to maximize space and add convenience to workflow.
With the Single-Sided A-Frame Storage Rack placed against the wall, full-size slabs can be stored without touching the wall at the top. It has a spread of 6 ⅝”. This allows heights up to 87″ before the stone would touch the wall. The inside diameter of the C channel is 4¼” ” wide. This allows the wood to be placed inside the C frame if preferred. The Weha Single-Sided A-Frame Storage Racks come with a 60″ crossbar that mounts to each A-frame for stability.
You might also want to take a look at our other Racks And A-Frames by Weha.
Technical Specifications
| Property | Value |
|---|---|
| Crossbar spread after mounted to A-Frames | 60″ |
| The total length of the base | 40″ |
| Total height | 59 ½” |
| Spread at top of A-frame | 6 ⅝ “ |
| Total height of slab storage | 87″ |
| Maximum storage length per side | 20 ½” |
| Inside width of storage A-Frame base | 4 ¼” |
