Aardwolf A-Frame Plus SAF03

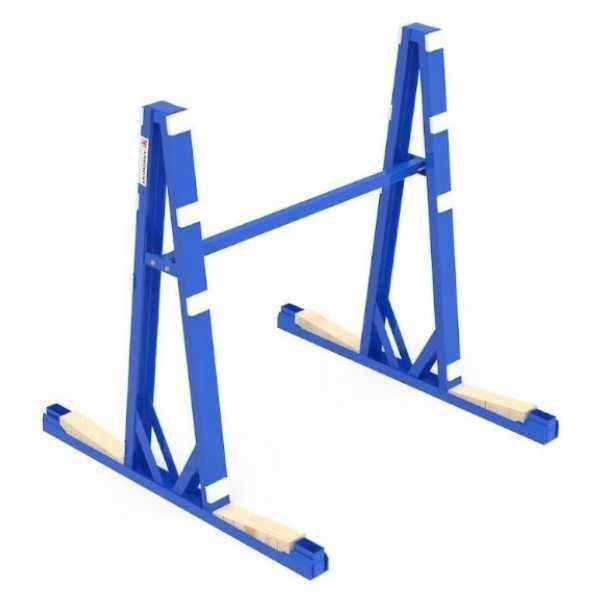

Aardwolf A-Frame Plus SAF03 is designed to store granite, stone, marble, and other types of slabs. This A-frame can support up to 12,000 pounds and comes stocked with rubber pads to protect your valuable stones. It includes two A-frame sections, a cross member, and all necessary hardware. The middle support bar connects each A-frame end piece. You might also want to take a look into the extensive line of Aardwolf Frames.
A-Frame Plus SAF03 main Features
Among the features of this A-Frame, we find:

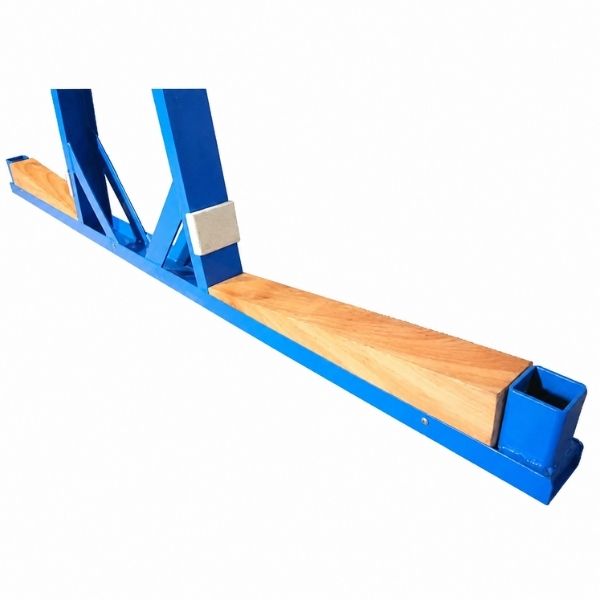

- Wooden gluts in the base channel
- Rubber pads on the face of the vertical frame
- Store slabs on both sides
- It has a Capacity for 12,000 lbs
This Aardwolf A-Frame Plus SAF03 is a basic but very useful A-Frame, a tool that belongs to every Granite Shop. It is very durable and it is built using the highest quality materials. It will last over any similar product in the market.

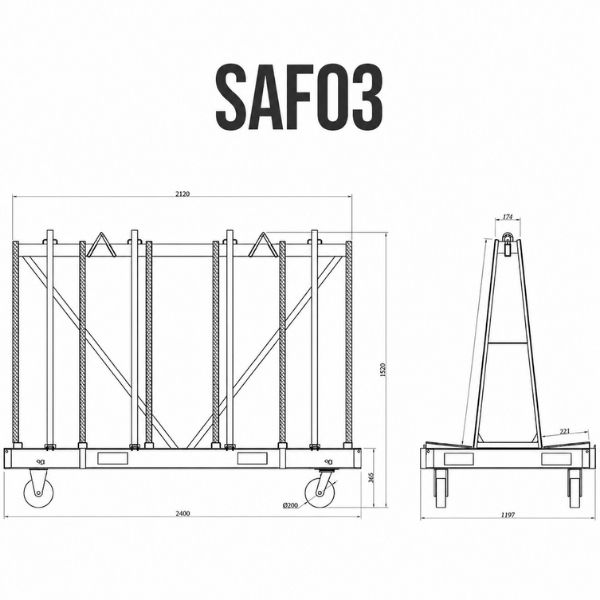

SAF03 Technical Specifications:
| Feature | Metric (mm-kg) | Imperial (inch-lb) |
|---|---|---|
| Option: 1 type of safety post | Slab rack strong post: 50 x 50 x 5 – 1,200 High | Slab rack strong post: 2″ x 2″ x 0.2″ – 47.2″ High |
| Constructed | Channel: 100 | 4” |
| Angle steel: 50 | 2” | |
| Width of slab storage base area on each side | 557 | 21.9” |
| Working load limit | 5500 | 12,000 |
| Net weight | 102.5 | 226 |
| Gross weight | 103 | 227 |
| Package dimension | 1,840 x 230 x 1,830 | 72.4″ x 9″ x 72″ |
