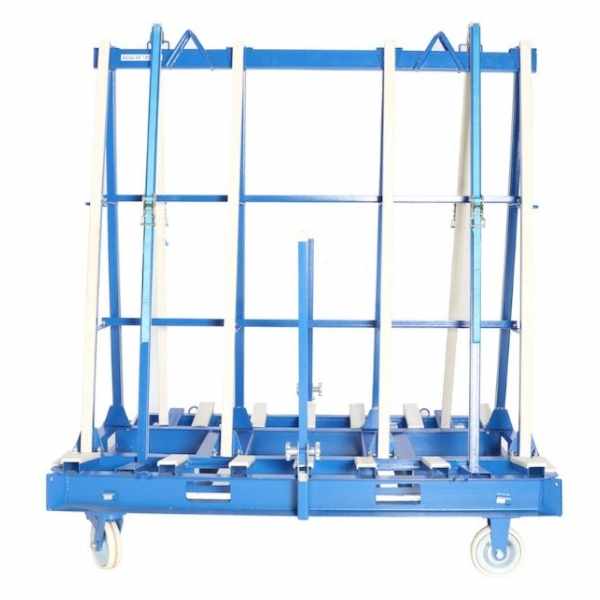

Aardwolf A-Frame 1850QP

$1,849.99

Aardwolf A-Frame 1850QP is designed for delivering heavy sheets of glass and stone to construction sites where a strong, heavy frame is needed to lift the complete load and frame together onto building sites

Aardwolf A-Frame 1850QP

Aardwolf A-Frame 1850QP is designed for delivering heavy sheets of glass and stone to construction sites where a strong, heavy frame is needed to lift the complete load and frame together onto building sites. The fully loaded frame can easily be moved around the floors on different levels of construction sites.

You might also want to take a look into the extensive line of Aardwolf Frames or Aardwolf Transport Frames.

A-Frame 1850QP main Features

Among the features of this A-Frame, we find:

  • Sturdy and safe structure, designed to eliminate any risk of slabs tipping over.
  • Load bearing surfaces are topped with rubber to prevent scratches and damage to goods being transported.
  • It contains two lifting eyes at the top frame for lifting frames on and off trucks with a crane.
  • Has four lifting points at the corner of the frame base for lifting loaded frames on and off trucks and onto building sites.
  • Handles are located at the end of “A” frames.
  • Wheels with brakes to ensure safety in operation.
  • Aardwolf A-Frame 1850QP has four locking bars per frame mounted in slotted holes on the bottom.
  • Powder-coated finish ensures an aesthetic feature as well as the durability of the product.

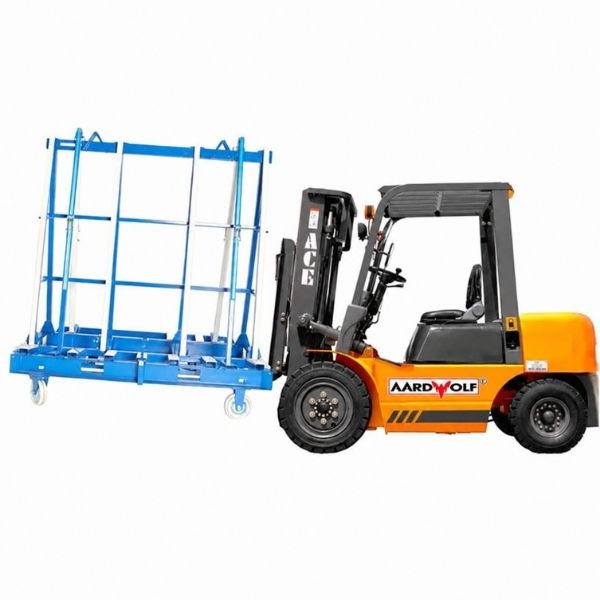

Aardwolf A-Frame 1850QP is a very versatile A-Frame that can be used not only for storing slabs on the shop, but also for transporting the finished pieces into the construction site, and it can be loaded onto truck by using a forklift or a crane. So, it represents a very wise addition to your set of tools.

See the Transport Frame in action

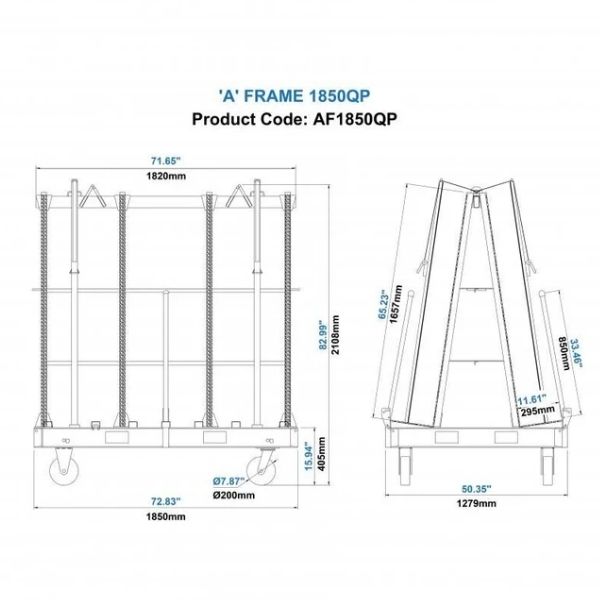

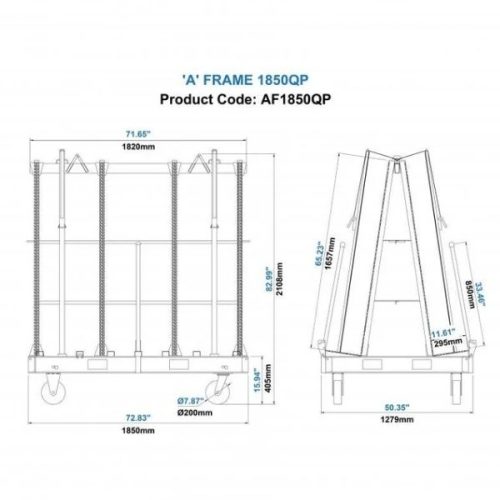

1850QP Technical Specifications

FeatureMetric (mm-kg)Imperial (inch-lb)
Width of slab storage base area on each side29511.6”
Working load limitFork End: 1,1002,425
Fork Side: 2,5005,511
Eyelet: 2,5005,511
Bow-Shackles:2,5005,511
Wheels: 2,5005,511
Stationary: 4,0008,818
Net weight246542
Gross weight252556
Packaging dimension1,850 x 1,300 x 36072.8″ x 51.2″ x 14.2″‘
Weight556 lbs
Dimensions72.8 × 51.2 × 14.2 in
