GROVES Truck Mounted A-Frame


24,000 lb. total capacity. Holds up to 12,000 lbs. per side. Six mounting plates used for bolting to truck or trailer. Bottom U-channel is 4″ wide with 2″ side ledges and is designed to hold wood 4 x 4. Galvanized finish for long-lasting durability

GROVES Truck Mounted A-Frame

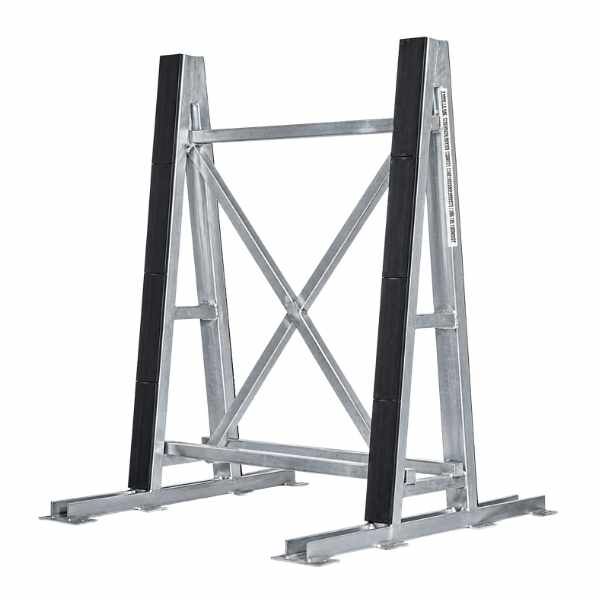

The GROVES Truck Mounted A-Frame is essential for efficient and secure material transport. Engineered with practicality and durability in mind, this A-Frame boasts cross and horizontal braces that bolt together, facilitating reduced shipping costs without compromising on structural integrity. A durable galvanized finish ensures long-lasting performance even in demanding conditions. Equipped with eight mounting plates, it offers versatile installation options for secure attachment to trucks or trailers. The generous ledge depth of 18″ accommodates various loads. At the same time, rubber-lined uprights provide added protection. The bottom U-channel, measuring 4″ wide with 2″ side ledges, is ingeniously designed to hold 4×4 wood, providing sturdy support for the load (timber supplied by the customer). With a maximum total weight capacity of 24,000 lbs. (12,000 lbs. per side evenly distributed), this Truck Mounted A-Frame guarantees reliable performance for heavy-duty transport tasks, making it an indispensable asset for any operation.

GROVES Truck Mounted A-Frame Main Features

  • Durable galvanized finish.

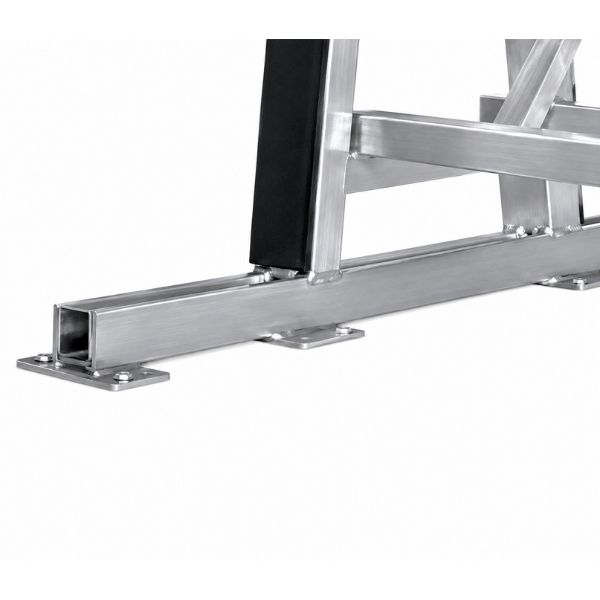

  • Eight mounting plates used for securing to truck or trailer.
  • Ledge depth: 18″.
  • Rubber-lined uprights.
  • Cross and horizontal braces bolt together for reduced shipping costs.
  • Bottom U-channel is 4″ wide with 2″ side ledges and is designed to hold 4 x 4 wood to support load (customer furnishes the wood).
  • Maximum total weight capacity is 24,000 lbs. (12,000 lbs. per side evenly distributed).
  • Dimensions: 60″ Long x 48″ Wide x 78″ High
  • Weight: 530 Lbs


Weight530 lbs
Dimensions60 × 48 × 78 in


Select Option

4 Slots Rack + (10) SP-72 + (2) BR-5, 9 Slots Rack + (20) SP-72 + (4) BR-5, Single Rail BR-5 – 11" W x 5.5" H 60" L, Post SP-60 – 2" X 60"
