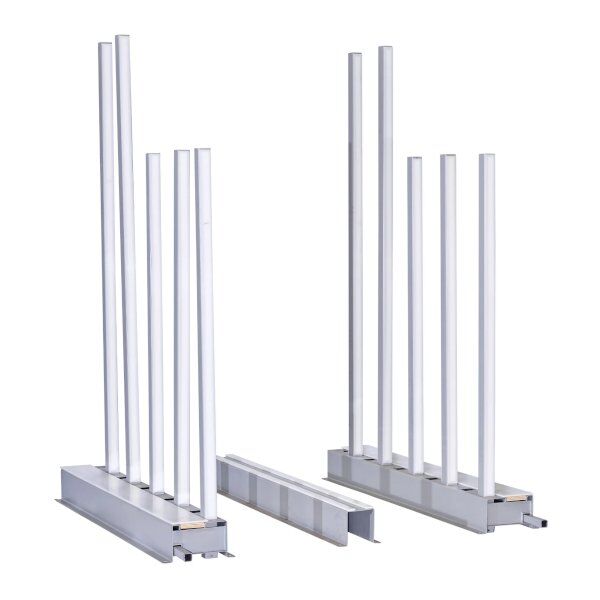

GROVES Multi-Purpose Glass Storage System

$818.00$14,456.00

The GROVES Center Rail for Multi-Purpose Storage Rack is a robust and versatile solution designed to optimize storage and protection for various materials in your workshop or warehouse. With its heavy-duty powder-coated finish, this center rail ensures durability and longevity and can withstand the rigors of daily use.

GROVES Multi-Purpose Glass Storage System

The GROVES Center Rail for Multi-Purpose Storage Rack is a robust and versatile solution designed to optimize storage and protection for various materials in your workshop or warehouse. With its heavy-duty powder-coated finish, this center rail ensures durability and longevity and can withstand the rigors of daily use. The rails are ingeniously designed with slots to hold 2 x 4’s, providing added protection for stored products and the finish on the rails (2 x 4’s not included), with the option to mount Easy Slide, a low-friction material for extra protection. The center rail, equipped with Easy Slide, supports glass when sliding individual lives in and out of the rack, ensuring smooth and safe handling. Furthermore, the outside rails feature 2″ square holes spaced 4″ apart, reinforced with a steel plate for added strength and stability. Complete with 2″ square tube posts and rubber post caps to separate glass, along with an 11″ connector tube for easy assembly, the GROVES Center Rail for Multi-Purpose Storage Rack offers a comprehensive solution for efficient and secure material storage. With its innovative design and patented features (Patent # 7143901), this storage rack is a must-have for any workspace requiring versatile and reliable storage capabilities.

GROVES Multi-Purpose Glass Storage System Main Features

  • Heavy-duty powder-coated finish
  • Rails are designed with slots to hold 2 x 4’s, which protect the stored product and the finish on the rails (2 x 4s not included). Optional
  • Easy Slide (made of low friction material) can be mounted to the 2 x 4’s for extra protection
  • Center rail with easy slide must be used to support the glass when sliding individual lives in and out of the rack
  • Outside rails are built with 2″ square holes spaced 4″ apart. A steel plate with identical holes is welded and boxed inside the rails, 1″ up from the bottom
  • 2″ square tube posts and 2″ square rubber post caps to separate glass
  • Complete with an 11″ connector tube for butting rails together in a straight line for the desired length
  • Patent # 7143901

Suggested wood-case packages

Part No.LengthOpeningsParts In PackageWeight lbs.
4pak5′42 BR-5, 6 SP-60, 4 SP-80276
9pak10′94 BR-5, 10 SP-60, 10 SP-80560
19pak20′198 BR-5, 16 SP-60, 16 SP-80, 8 SP-1021,192
49pak50′4920 BR-5, 24 SP-60, 36 SP-80, 40 SP-1023,184

Suggested easy-slide packages for glass packs and wood cases

Part No.LengthOpeningsParts In PackageWeight lbs.

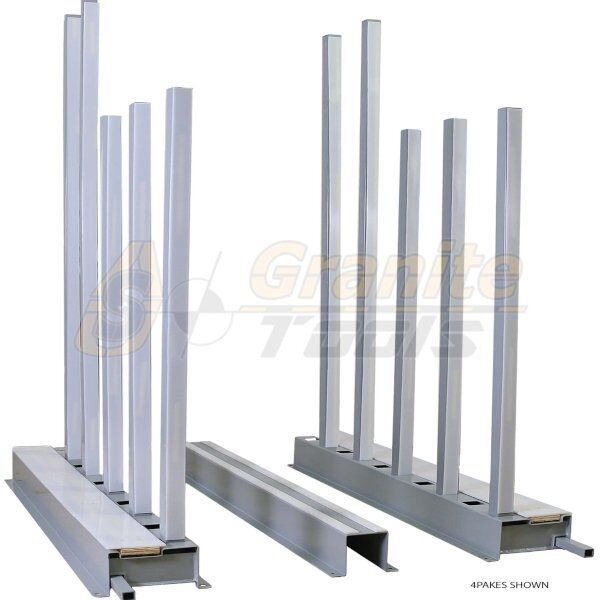

4pakES5′42 BR-5ES, 1 CR-5ES, 6 SP-60ES, 4 SP-80ES326
9pakES10′94 BR-5ES, 2 CR-5ES, 10 SP-60ES, 10 SP-80ES660
19pakES20′198 BR-5ES, 4 CR-5ES, 16 SP-60ES, 16 SP-80ES, 8 SP-102ES1,4
49pakES50′4920 BR-5ES, 10 CR-5ES, 24 SP-60ES, 36 SP-80ES, 40 SP-102ES4,125

Safety Warning

  • Use .5″ holes located on a bottom flange for securing rails to the floor
  • Maximum weight allowed per opening is 9,000 lbs. (4,500 lbs. per post)
  • Minimum of 2-degree angle when dropping a stone in between posts
  • When assembled, the overall height of the posts is 5.5″ less than listed (EXAMPLE: 60″ post will be 54.5″ above the top of the outside rail)
WeightN/A
DimensionsN/A
Brand

Groves

Select Bundle

19pak, 19pakES, 49pak, 49pakES, 4pak, 4pakES, 9pak, 9pakES
