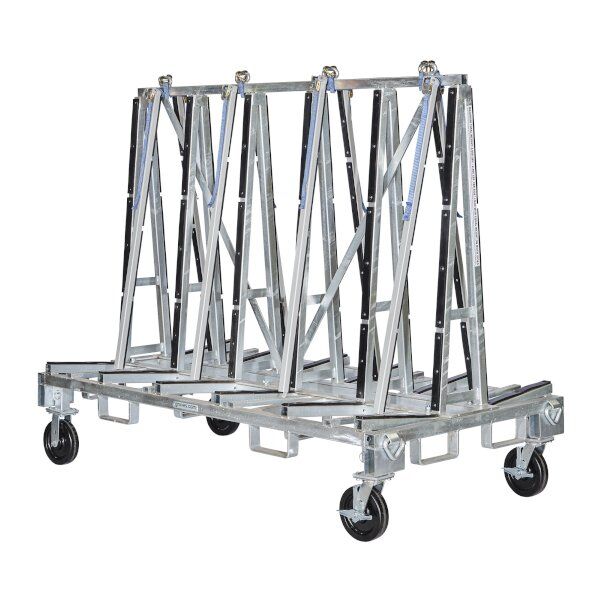

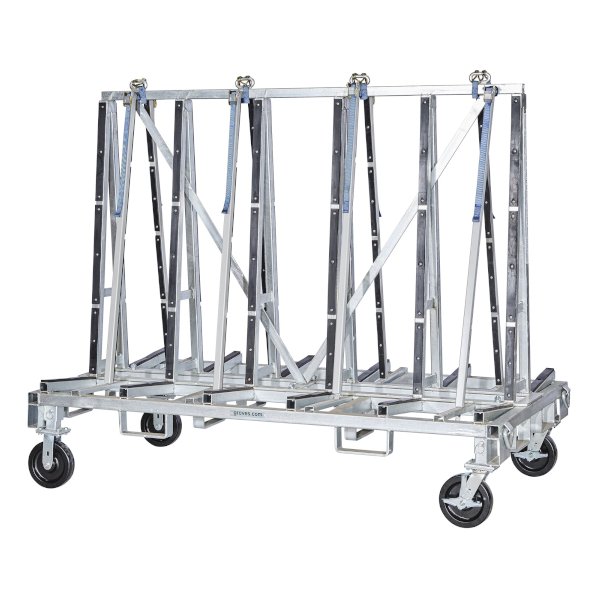

GROVES Heavy-Duty Transport Rack


Designed for transporting and Storing Product in Granite Shops or on the job. Forklift hoops mounted on sides. Bottom pads and uprights have full length rubber strips. Quick release mounting pins change the transport rack from mobile to stationary in less than a minute. Hot dip galvanized

GROVES Heavy-Duty Transport Rack Main Features

  • Hot dip galvanized finish.

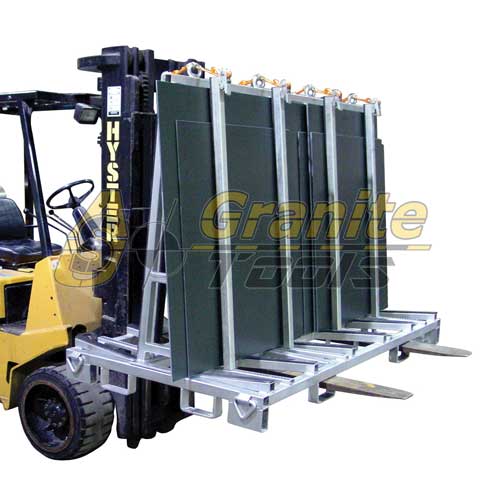

  • Fork pockets are mounted on the sides and ends for loading flexibility.
  • Hold-down bars have riveted rubber strips the entire length of the bar.
  • The bottom pads and uprights have riveted rubber strips.
  • Quick-release mounting pins change rack from mobile to stationary in seconds (Optional caster kit: (4) 8” roller bearing wheels; Two swivel casters with brakes and two rigid).
  • Maximum total weight capacity is 4,000 lbs. (2,000 lbs. per side evenly distributed).
  • Hoisting loops are rated at 1,000 lbs. each (4,000 lbs. maximum total weight capacity).

Specifications GROVES Heavy-Duty Transport Rack

SKULengthWidthLoad HeightHeightWith CastersWeight
TR448282″44″58″58″69″540 lbs.

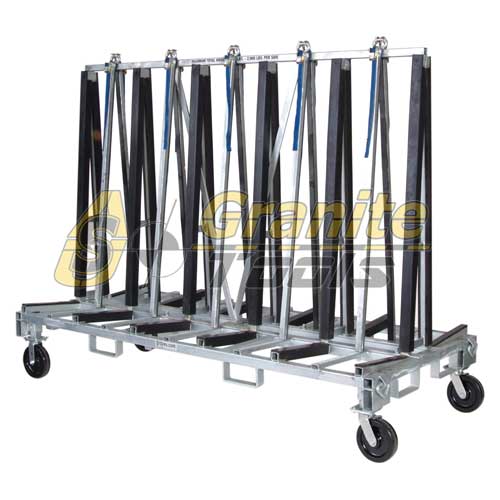

TR449698.5″44″66″70″81″620 lbs.
Weight308 lbs
Dimensions64 × 43 × 62 in
Select Groves Transport Rack or Spare Part

TR4482 82" L x 44" W x 48" H, TR4496 96" L x 44" W x 60" H, GROVES Hold Down Bar For TR4482 48", GROVES Hold Down Bar For TR4496 60", GROVES CK-4 Caster Kit
