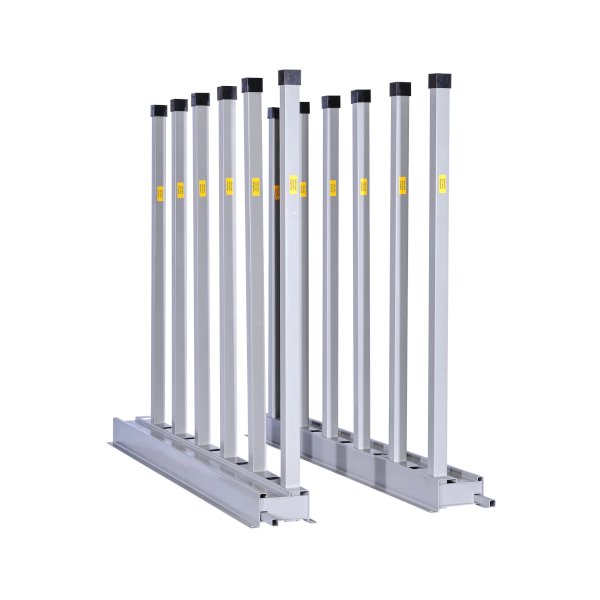

GROVES Heavy-Duty Bundle Rack – Long 90″


Stores bundles or slabs up to 9,000 lbs. between posts. Outside Rails designed with slots to hold 2×4’s. Hot dip galvanized finish on the rails and the 2.5” square tube posts are coated with a Galvanized Finish

GROVES GROVES Heavy-Duty Bundle Rack – Long 90″

GROVES 9,000 Lb. Bundle Rack allows the easy Storage of your Finished Products (Kitchen Countertops, Vanity Tops), Cutoffs, remnants, or Slab pieces. It comes bundled with 3 or 6 openings, but you can also assemble your desired solution using the Parts (Rails and Posts).

GROVES Heavy-Duty Bundle Rack – Long 90″ Main Features

  • Heavy-duty powder-coated finish

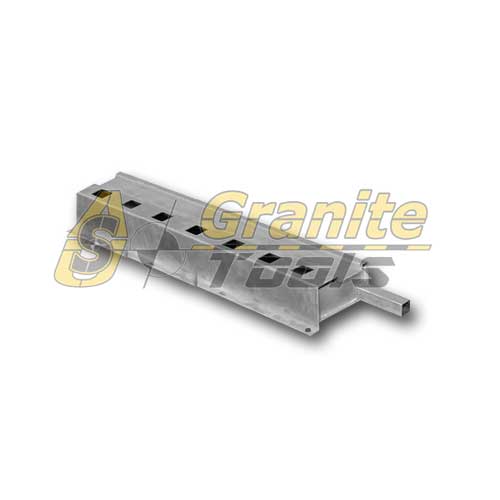

  • Rails built with 2.5″ square holes spaced 5″ apart. A steal plate with identical holes is welded and boxed inside the rail, 1″ up from the bottom.
  • 2.5″ square tube posts and 2.5″ square rubber post caps to separate bundles and slabs
  • It must have a 12” overhang on each side
  • 90″ Rails are designed with slots to hold 2 x 4’s, which protect the slab edges and the finish on the rails (2 x 4s not included)

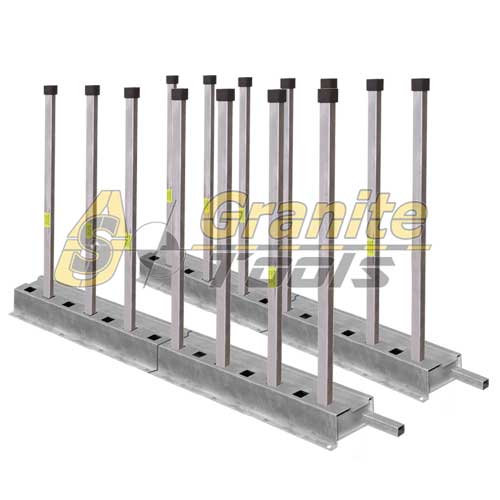

  • Complete with an 11″ connector tube for butting rails together in a straight line for the desired length
  • Use .5″ holes located on the bottom flange for securing rails to the floor
  • Maximum weight allowed per opening is 9,000 lbs. (4,500 lb. per post)
  • Minimum of 2-degree angle when dropping a stone in between posts
  • When assembled, the overall height of the posts is 5.5” less than listed (EXAMPLE: 72” post will be 66.5” above the top of the rail)
  • PATENT #: 7143901


Part No.LengthOpeningsParts In PackageWeight lbs.
5-H72907.5′52 BR2.5-90, 12 SP-72558
11-H729015’114 BR2.5-90, 24 SP-721,116
23-H729030’238 BR2.5-90, 48 SP-722,232
35-H729045’3512 BR2.5-90, 72 SP-723,348
47-H729060’4716 BR2.5-90, 96 SP-724,464
59-H729075’5920 BR2.5-90, 120 SP-725,84


Weight1095 lbs
Dimensions96 × 44 × 99 in
Select Bundle

11-H7290, 23-H7290, 35-H7290, 47-H7290, 5-H7290, 59-H7290
