GROVES Bundle Rack (With 60” Posts)

$758.00$7,580.00

Stores bundles or slabs up to 6,000 lbs. between posts. Outside Rails designed with slots to hold 2×4’s. Hot dip galvanized finish on the rails and the 2” square tube posts are coated with a galvanized finish

GROVES Bundle Rack (With 60” Posts)

GROVES 6,000 Lb. Bundle Rack allows the easy Storage of your Finished Products (Kitchen Countertops, Vanity Tops), Cutoffs, remnants, or Slab pieces. It comes bundled with 4 or 9 Openings, but you can also assemble your desired solution using the Parts (Rails and Posts).

NOTE: When assembled, the overall height of the posts is 5.5” less than listed (EXAMPLE: 60” post will be 54.5” above the top of the rail)

GROVES Bundle Rack (With 60” Posts) Main Features

  • Heavy-duty powder-coated finish.
  • Post height options available (40″, 60″ or 80″)
  • Complete with an 11” connector tube for butting rails together in a straight line for the desired length
  • Rails built with 2” square holes spaced 4” apart (10 holes). A steal plate with identical holes is welded and boxed inside the rail, 1” up from the bottom
  • 2” square tube posts and 2” square rubber post caps to separate bundles and slabs
  • Rails designed with slots to hold 2 x 4’s which protect the slab edges and the finish on the rails (2 x 4’s not included)
  • Maximum weight allowed per opening is 9,000 lbs. (4,500 lb. per post)
  • Minimum of 2-degree angle when dropping a stone in between posts
  • Inspect posts each time used
  • Patent # 7143901

SUGGESTED PACKAGES FOR BUNDLES OR SLABS USING 60” POSTS

Part No.LengthOpeningsParts In PackageWeight lbs.

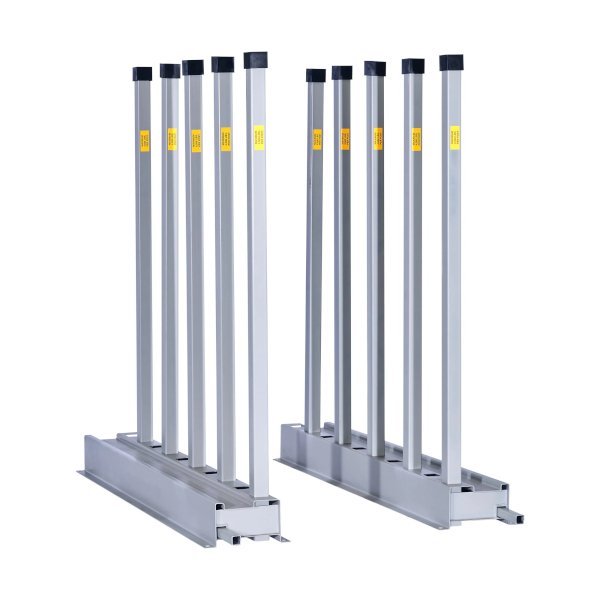

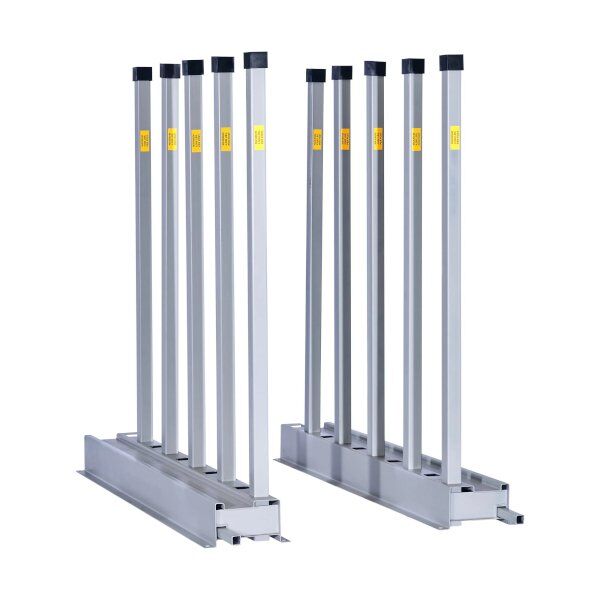

4-W605’42 BR-5, 10 SP-60260
9-W6010’94 BR-5, 20 SP-60520
19-W6020’198 BR-5, 40 SP-601,04
49-W6050’4920 BR-5, 100 SP-602,6
Weight1095 lbs
Dimensions96 × 44 × 99 in
Brand

Groves

Select Bundle

19-W60, 4-W60, 49-W60, 9-W60
