ABACO A-Frames TAF-060 & TAF-060H
  • ABACO A-Frames TAF-060 & TAF-060H
  • ABACO A-Frames TAF-060H

ABACO A-Frames TAF-060 & TAF-060H

$424.62 – $681.54

TAF060 its an standard  A-frame with only one point of union between A-frames pairs.
TAF060H its a professional A-frame with different point of union between A-frames pairs given more stability and security for the Slabs.

SKU: N/A Category: Tags: ,

ABACO A-Frames TAF-060 & TAF-060H

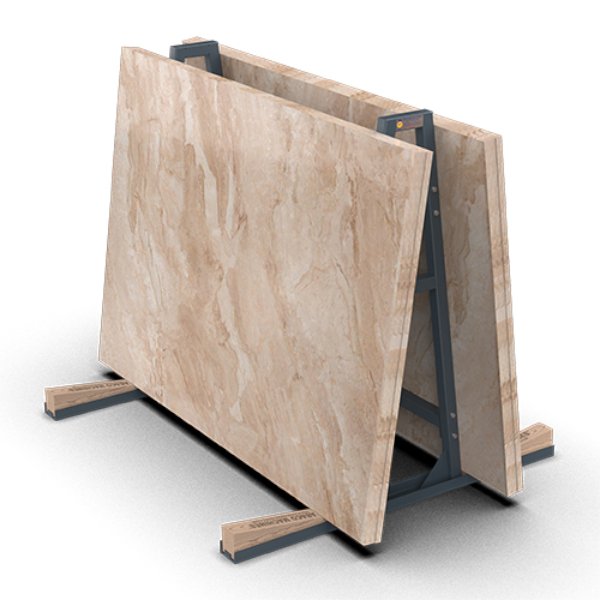

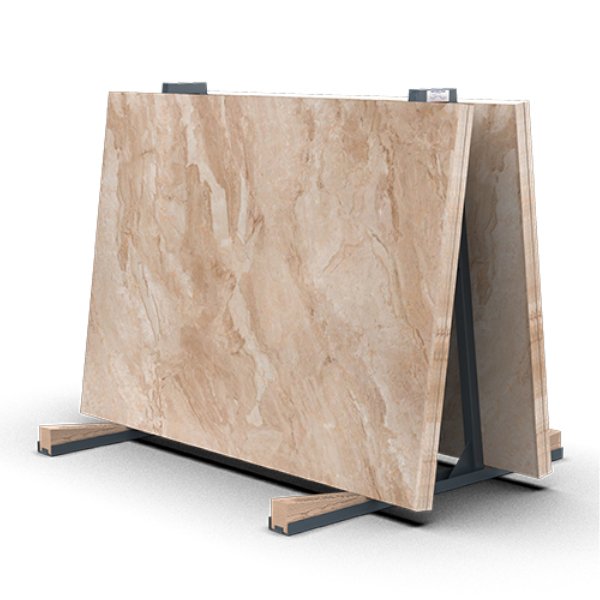

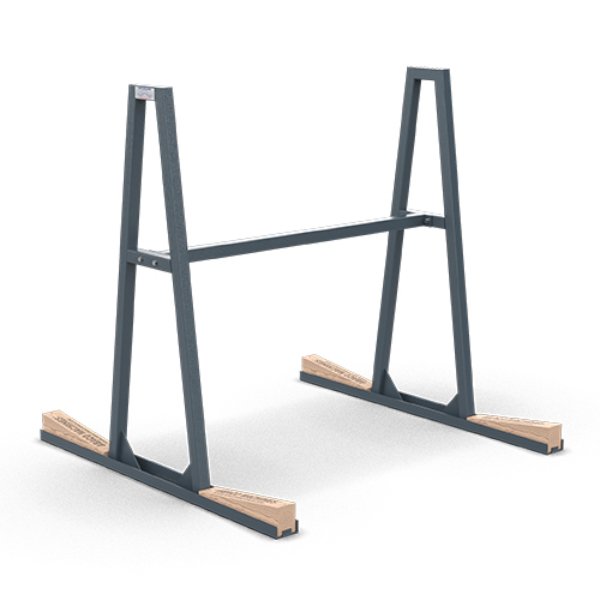

The Abaco Truck A-Frame is constructed from two Standard A-Frames joined by a cross bar, extending the overall length to five feet.

This design provides storage capacity of 12000 pounds (5500kg) per side.

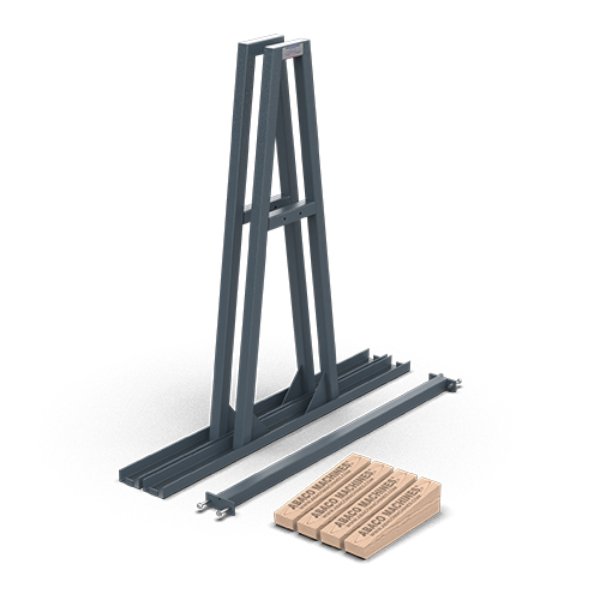

It comes with angled timber blocks to protect materials and is designed for picking up slabs and moving them from one factory to another.

ABACO A-Frames TAF-060 & TAF-060H Technical Specifications

ModelLength In(mm)Width In(mm)Height In(mm)Net Weight Pounds (kg)W.L.L.Pounds (kg)
TAF06060 (1524)60 (1524)60 (1524)132 (60)12,000(5500) Per Side
24,000(11,000) Per Pair
TAF060H60 (1524)60 (1524)60 (1524)165 (75)12,000(5500) Per Side
24,000(11,000) Per Pair

Notes about ABACO A-Frames TAF-060 & TAF-060H

  1. SQUARE STEEL TUBING: 2 x 2 x 1/8 inches (50 x 50 x 3mm)
  2. STRENGTHENING PLATE : 5 7/8 x 5 7/8  x 1/4 inches (150 x 150 x 6mm)
  3. INCLUDES TIMBER BLOCKS TO PROTECT MATERIAL AND IMPROVE STABILITY: 18 x 1/8  x 4 3/8 inches(460 x 80 x 110mm)
WeightN/A
DimensionsN/A
Select Abaco a Frame

TAF060 60 × 60 × 60, TAF060H 60 × 60 × 60 Reinforced

Brand

Abaco
