Sale!

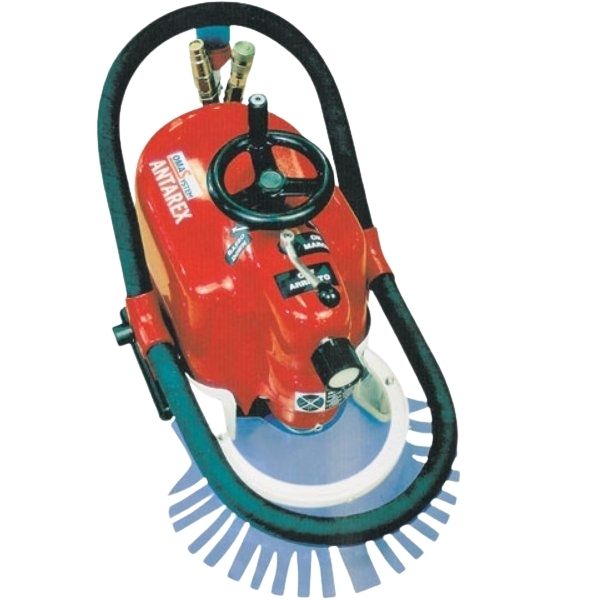

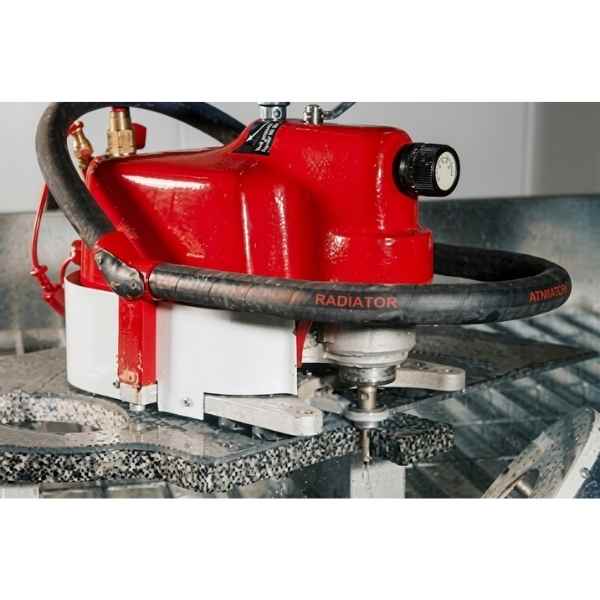

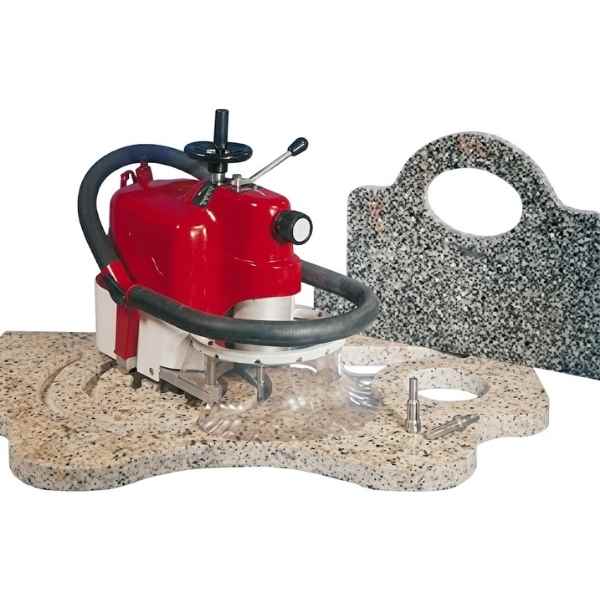

Oma Antarex Bowl Cutting Machine

$4,969.99

Oma Antarex Bowl Cutting Machine for Granite, Marble, Engineered Stone, and Quartz Counter Tops. runs at a solid 4 HP, stronger than the most popular radial arm machines

SKU: 8003 Category:

Frequently Bought Together

Oma Antarex Bowl Cutting Machine + Oma Hydraulic Pump + Oma Antarex Finger Bit Diamond Cutter
Price for all three: $7,244.97

Oma Antarex Bowl Cutting Machine

Oma Antarex Bowl Cutting Machine for Granite, Marble, Engineered Stone, and Quartz Counter Tops.

You might also want to take a look at our other Stone Routers by Weha.

Product Features

The main features of this product are:

  • The Oma Antarex bowl cutting router runs at a solid 4 HP, stronger than the most popular radial arm machines.
  • The Antarex can cut out any size hole as well as any countertop shape configuration at any length. If you can template it, the Oma Antarex bowl cutter can cut it out.
  • Built with aircraft Aluminum and stainless steel construction with fiberglass covers (not plastic) the Oma Antarex is a router that will provide many many years of fabrication work.
  • The Antarex rides on16 nylon rollers supported by spheres of stainless steel. This can easily sit on top of the template.
  • This compact and lightweight bowl cutter make it easier to use, has less user fatigue, and is easy to move from one workstation to another.
  • Comes with an Extra Complete Spindle Assembly.
  • Powered by the Oma 4 HP hydraulic power unit which provides power by means of hydraulic fluid to the router.
  • No electricity at the head of the machine. Zero chance of electric shock to the operator.
  • Eliminates all-electric motor vibration that electric motors will create.
  • The hydraulic pump (or the 3-Phase one)provides so much power to the spindle that it becomes practically impossible to slow the machine down, even on 6cm profiling.
  • The same hydraulic pump runs the Oma CP99 router, as well as the Galaxy hand saw.
  • The hydraulic pump allows the Oma Antarex itself to be much lighter and more compact.

Why buy a granite radial arm machine that takes up such a large floor space just to cut out bowls? What is the best way to cut granite sinks or marble vanity tops out?

The Oma Antarex Bowl Cutting machine will cut out a sink bowl or vanity bowl in granite, marble, engineered stone in half the time a radial arm machine will.

At 44,000 RPM, the Oma Granite Bowl Cutter runs at 4 times the speed of radial arm machines. Radial Arm machines use 20mm diameter diamond tips that require many passes around and around the sink template to cut out the bowl or vanity. The Oma Antarex Bowl Cutter uses a ⅜” (10mm) diamond finger bit that requires only 1 pass in 2cm and 3cm stone.

The Antarex granite bowl cut-out system takes up virtually no footprint in the shop. While radial arm machines require approximately 48 square feet, just for the machine, the Antarex is completely mobile. No need to even have a dedicated work table. Using the same workbench used to polish the bowl and edges, simply cut the bowl out on the existing table and then polish without ever having to move the stone from the workbench.

To set up a radial arm machine, the radial arm machine must be delivered on a flatbed, then used with the forklift to set the saw. Then level the machine and some even bolt it to the floor. The Antarex machine ships LTL common carrier. Take it out of the box, wire it 220 single or 3-phases, fill the unit with oil, screw in the diamond bit, set your template, and start cutting out the bowl. Save hours of time from delivery to working.

How does the Antarex Bowl Cutter work with templates?

The same way all radial arm machines do. There is a non-moving template guide that rides against the sink template.

How does the Antarex Granite and Stone Bowl Cutter compare verse a Radial Arm Machine?

Radial Arm Machines cost between $19,000-$30,000. Plus flatbed delivery. The Oma Antarex Bowl Cutting System consists of the Router and Hydraulic Pump. If you include the diamond bit, the cost is Less than $7,500.00, including delivery!

Rather than providing only an external loc line that can be accidentally hit and the bit run dry, Oma exclusively provides center water feed through the spindle and bit. This keeps everything in the machine: bearings, spindles, hydraulic oil, etc, running cool for extra longevity. Additionally, it eliminates the possibility of the bit running dry. It also ensures the bit will never clog.

Average processing time per average cut out:

MinutesFeetsWorking Surface
332 cm marble
433 cm marble
¾32 cm granite

Compare OMA to Popular Radial Arm Machines

SpecificationsAntarexFab KingWizard
HP4HP3HP5HP
Power220 Single or 3-Phase220 Single Phase220 3-Phase
RPM44,0003300-10,0003,500-9,950
Weight35 lbs1520 lbs2700 lbs
Dimensions20″ x 12″ x 16″141″ x 44″ x 71″138″ x 28″ x 68″
MobileYesNoNo
Leveling RequiredNoYesYes
Center Water FeedYesYesYes
Warranty1 Year1 Year1 Year
ShippingLTLFlat BedFlat Bed
Estimated Cost$7,500$19,900$27,500

Demonstration video



Technical Specifications

PropertyValue
Dimensions20″ x 12″ x 16″
Weight35 lbs

Oma Antarex Bowl Cutting Machine Product Manual

pdf image Product Manual

Weight35 lbs
Dimensions20 × 12 × 16 in
