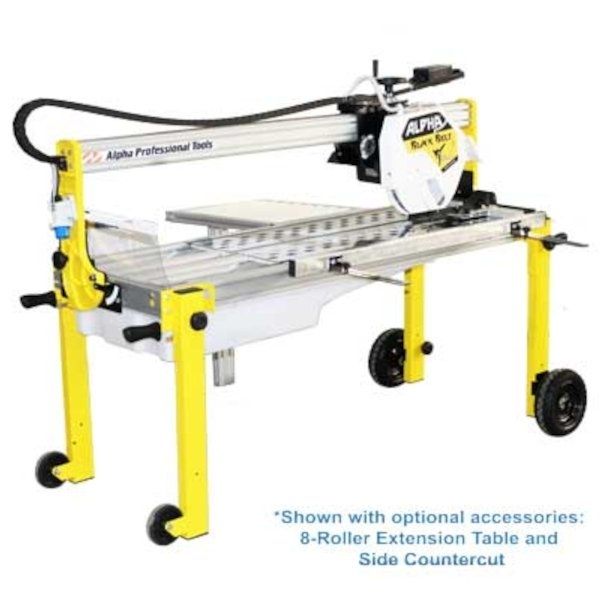

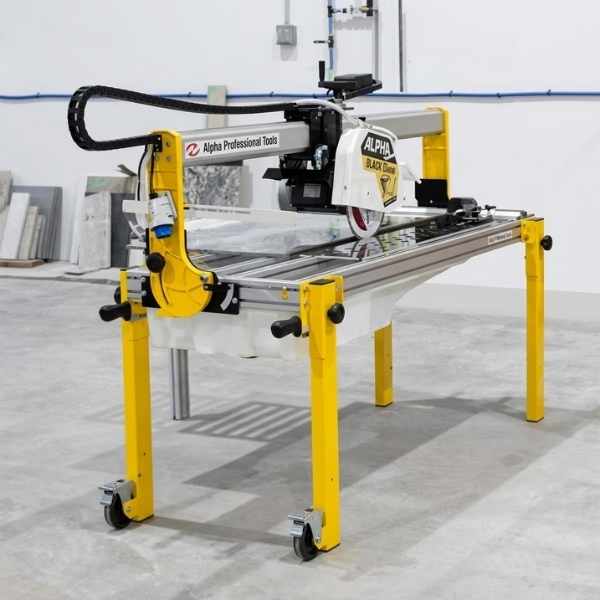

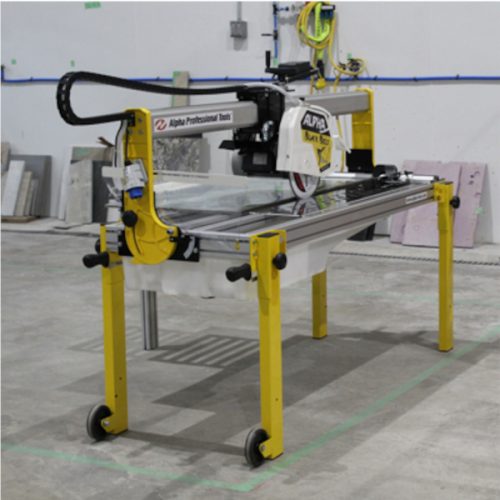

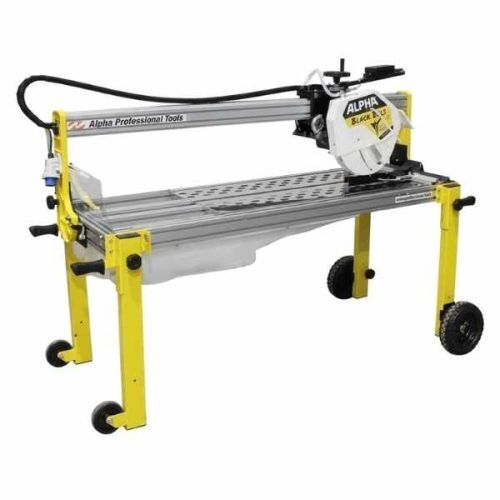

Alpha Black Belt Rail Saw BBS-014
The Alpha Black Belt Rail Saw BBS-014 is a heavy-duty rail saw engineered for tile installers, stone fabricators, and hardscape contractors who demand precision and durability. Featuring a rugged aluminum table chassis for stable operation, it ensures accurate and consistent cuts. Its maintenance-free magnetic-induction water pump delivers ample water to both sides of the blade, maximizing performance and extending blade life. Powered by a robust 230V, 13.5A single-phase, 3HP (2.2kW) motor running at 2,800 RPM with a direct drive shaft, this reliable saw is compatible with both 12” and 14” blades, making it ideal for a wide range of demanding cutting applications.
Black Belt Rail Saw BBS-014 Main Features
- Heavy Duty Rail Saw, Ideal For Tile Installers, Stone Fabricators And Hardscape Contractors
- Rugged Aluminum Table Chassis For Stable Operation With A Long Life
- Equipped With 230V – 13.5amp Single Phase, 3HP (2.2KW), 2,800 RPM Motor With Direct Drive Shaft
- Supports 12” & 14” Blades With 1” And 60mm Arbors
- Cut Up To 4” Deep In A Single Pass, 5” With Step Cut
- The Cutting Head’s Mechanical Vertical Tilting System Allows For Cutting Depth Adjustment
- Stainless Steel Head Rails And Adjustable Armored Ball Bearings For Smooth And Precision Movement

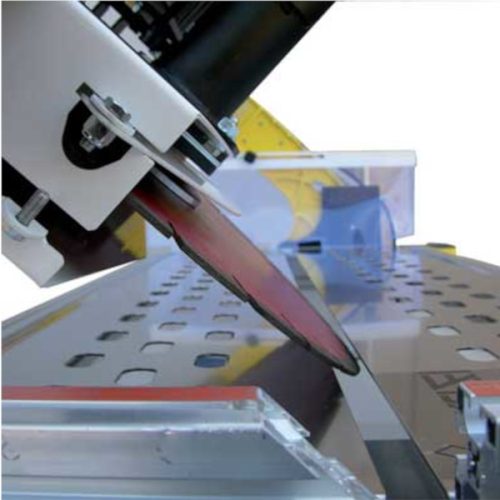

- Cutting System’s Side Tilt Capability Eases Up To 45 Degree Cut (Ideal For Miter Cuts)
- Extremely Reliable, Maintenance Free Magnetic-Induction Water Pump Delivers Ample Water To Both Sides Of Blade
- Retractable Legs Include A Fall-Protection Device
- Table Handles And Heavy-Duty Wheels Make Easy Transportation
- Front, Back And Bilateral Blade Guards Minimize Exposure Of Blade For Safety And Reduce Water Splash
- Rip Cut Up To 51″ (130cm) and Diagonal Cut Up To 33″ (84cm)
- Maximum Load 485lbs (220kgs)
- Total Weight 213lbs (105kg)
- One Year Tool Warranty*
Alpha Black Belt Rail Saw BBS-014 Specifications
| Feature |
Value |
| Model |
BBS-014 |
| Rating |
230Volts |
| Frequency |
Single-phase AC, 60Hz |
| Amperage |
13.5A |
| Power |
1200W |
| Max. RPM |
2,800 RPM |
| Max. HP |
3.0 HP (2.2KW) |
| Weight |
231 lbs (105 kgs) |
| Arbor |
1″ (25.4mm) & 60mm |
| Cutting Disc Diameter |
12″ / 14″ (300mm / 350mm) |
| Max. Cutting Depth |
5″ (125mm) |
| Max. Cutting Length |
51″ (130cm) |
| Cord |
13.1ft (4m) Single Phase |
| Plug Type |
16A 250V ~ 2P+T |
| Part No. |
Maximum RPM |
Type |
Arbor(s) |
Recommended For |
Description |
| BBS-01 |
4,280 |
2.2KW – 3HP |
1″, 60mm |
Wet Cutting |
Black Belt Rail Saw 230V |

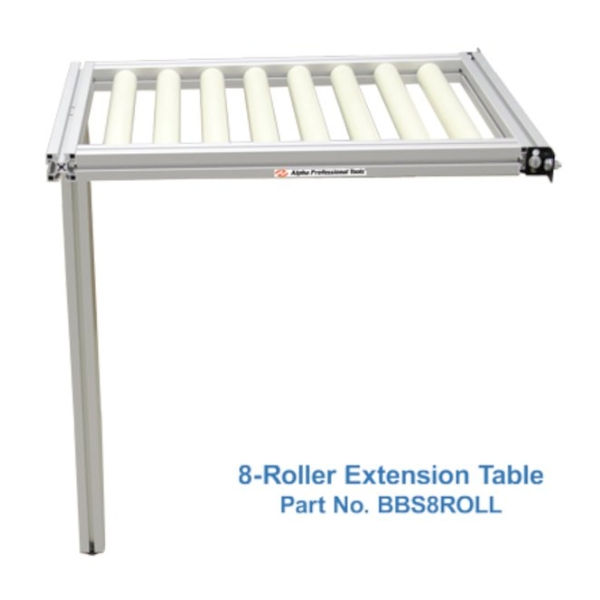

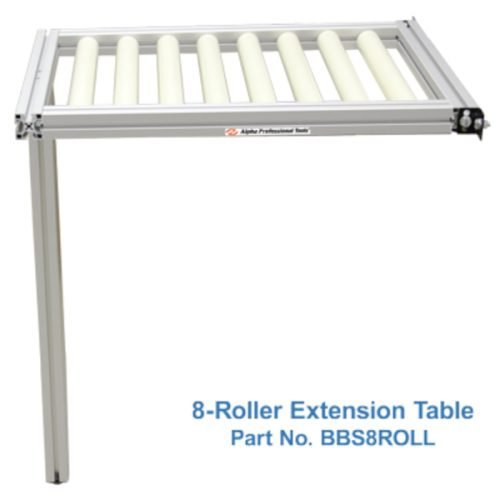

| BBS8ROLL |
|
|
|
Widening the Work Surface |
8-Roller Side Table |

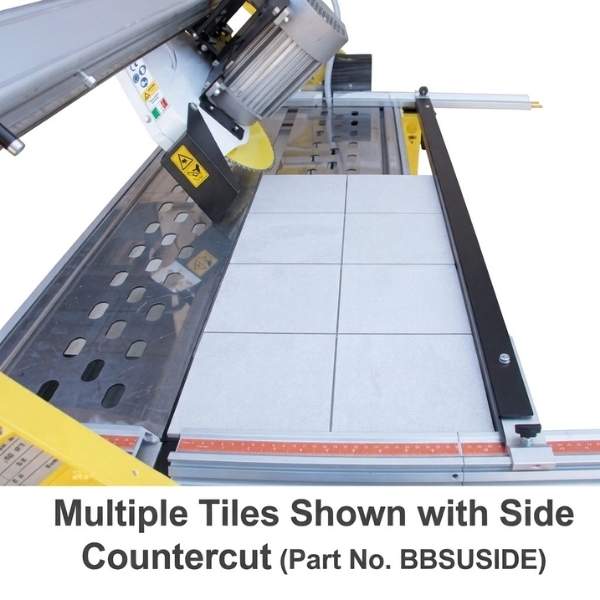

| BBSUSIDE |
|
|
|
Holding Multiple Tiles in Place |

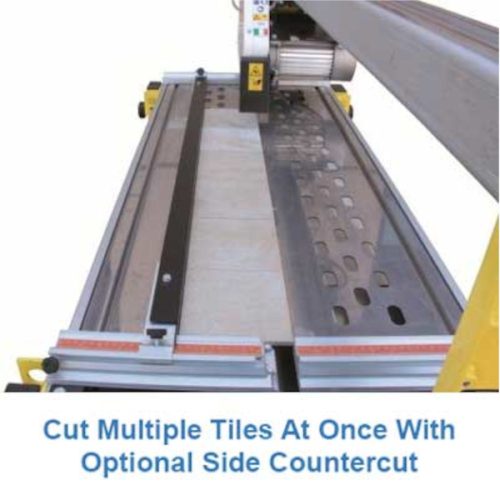

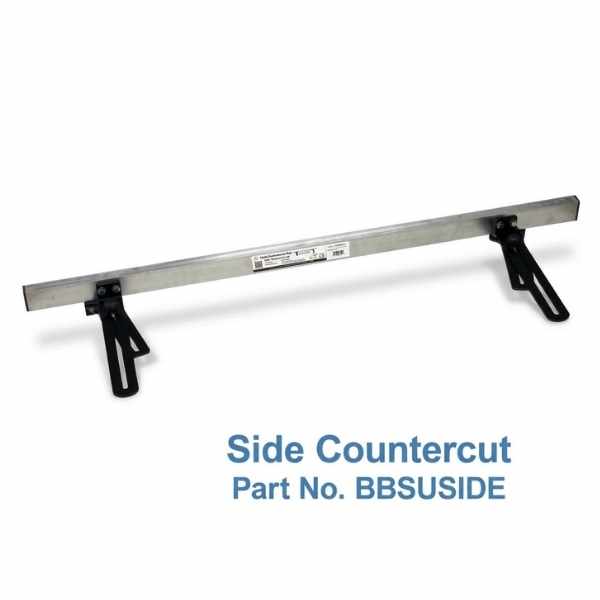

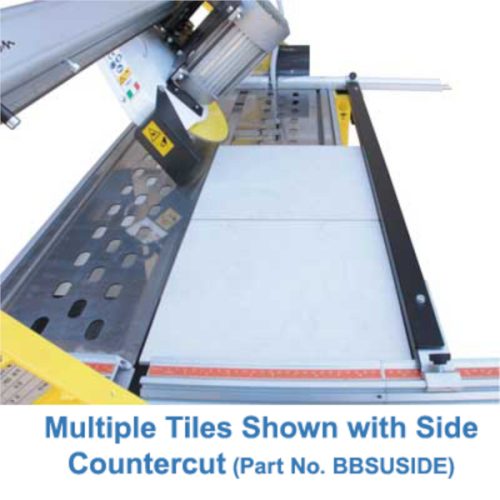

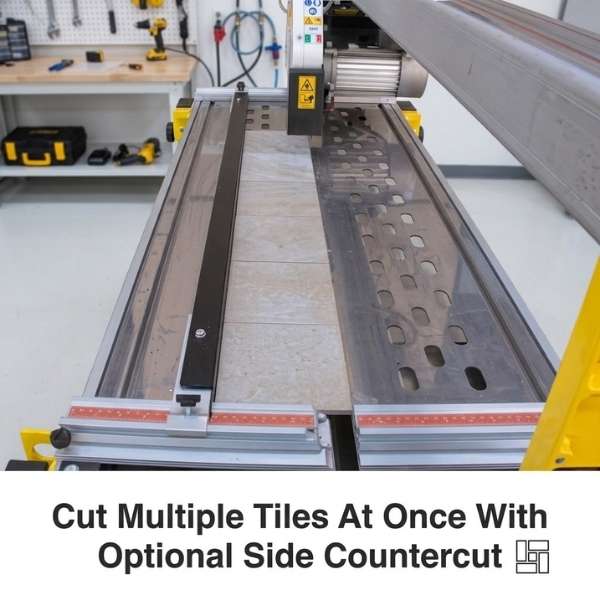

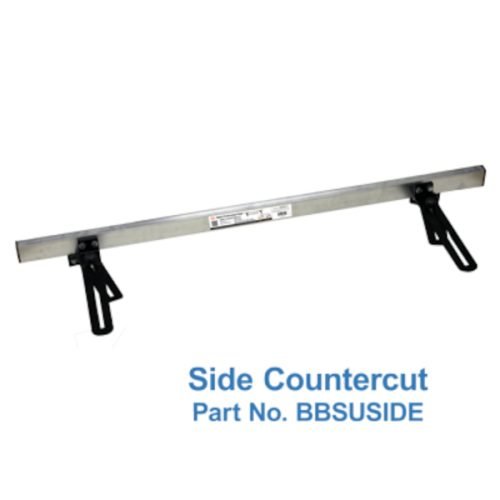

Side Countercut |
Equipment Included
| Item |
Quantity |
| BBS-014 Standard Accessories |
1 |

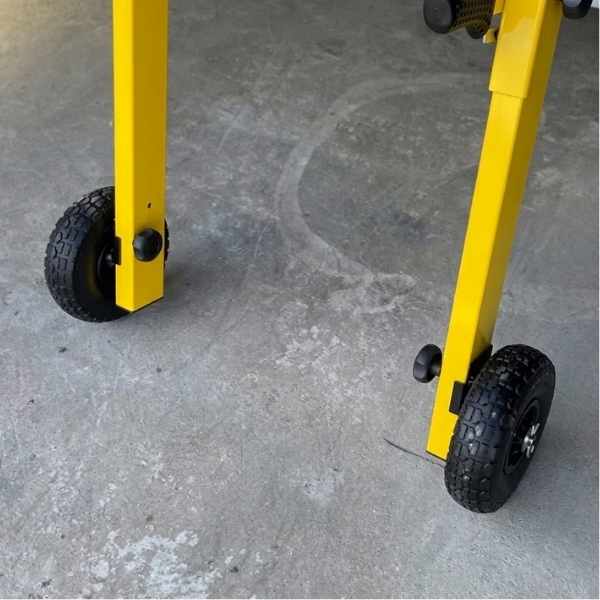

| BBS14WHL Fat Tire Set |
1 |
Black Belt Rail Saw BBS-014 Related Documents
Additional Information
| PartNo |
UPC Code |
Pkg. Weight (lbs) |
Package Dimensions |
Commodity Code |
Country Of Origin |
| BBS-014 |
749173621482 |
254.00 |
81in x 32in x 43in |
8464.10.0100 |
Italy |
| BBS8ROLL |
749173621512 |
25.00 |
30in x 30in x 7in |
8466.91.5000 |
Italy |
| BBSUSIDE |
749173621529 |
7.00 |
49in x 5in x 5in |
8466.91.5000 |
Italy |
