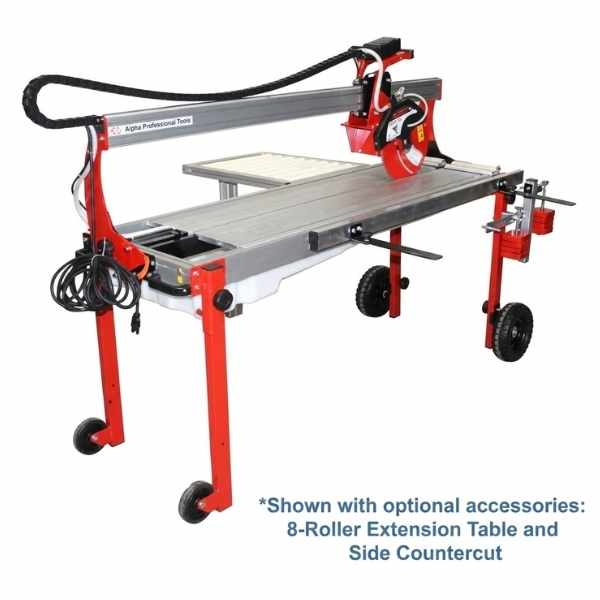

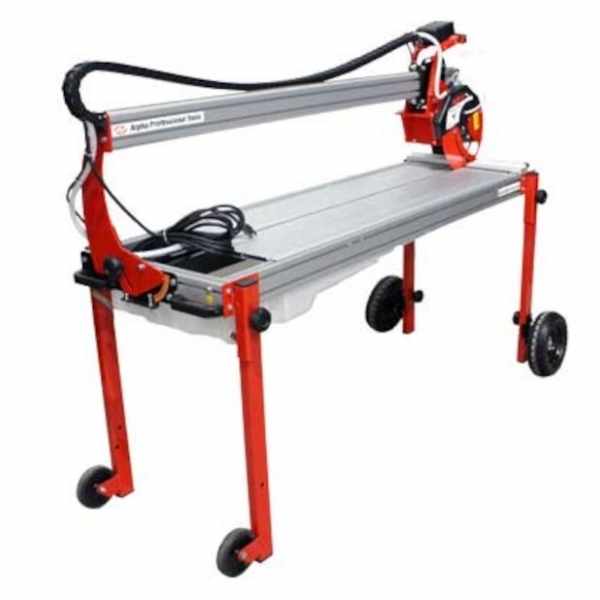

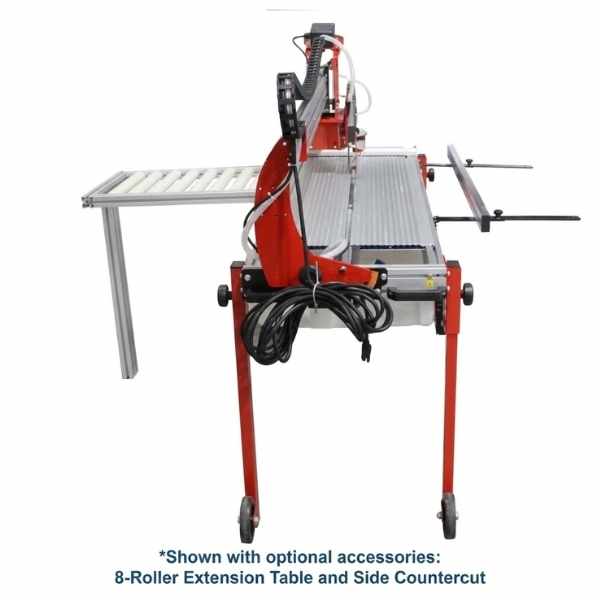

Alpha Black Belt Rail Saw BBS-012
The Alpha Black Belt Rail Saw BBS-012 is a professional-grade rail saw designed for precision cutting of ceramics, porcelain, glass panels, and other materials. Built with a rugged aluminum table chassis for maximum stability, it ensures smooth and accurate operation. The maintenance-free magnetic-induction water pump delivers ample water to both sides of the blade, enhancing cutting performance and blade life. Powered by a reliable 115V-60Hz, 9.6A, 2HP (1.5kW) motor running at 2,800 RPM with a direct drive shaft, this versatile saw is compatible with both 10” and 12” blades for a wide range of cutting applications.
Black Belt Rail Saw BBS-012 Main Features
- Professional Quality Rail Saw, Ideal For Cutting Ceramics, Porcelain, Glass Panel And Other Materials
- Rugged Aluminum Table Chassis For Stable Operation With A Long Life
- Equipped With A 115V-60HZ, 9.6AMP, 2HP (1.5KW), 2,800 RPM Motor With Direct Drive Shaft
- Supports 10” & 12” Blades With 1” And 60mm Arbors
- It Can Cut Up To 2-1/4” Deep In A Single Pass, 3-3/8” With Step Cut
- The Cutting Head’s Mechanical Vertical Tilting System Allows For Cutting Depth Adjustment
- Stainless Steel Head Rails And Adjustable Armored Ball Bearings For Smooth And Precision Movement
- Cutting System’s Side Tilt Capability Eases Up To 45 Degree Cut (Ideal For Miter Cuts)
- Extremely Reliable, Maintenance Free Magnetic-Induction Water Pump Delivers Ample Water To Both Sides Of Blade
- Retractable Legs Include A Fall-Protection Device
- Table Handles And Heavy-Duty Wheels Make For Easy Transportation
- Front, Back And Bilateral Blade Guards Minimize Exposure Of Blade For Safety And Reduces Water Splash
- Rip Cut Up To 51″ (130cm) and Diagonal Cut Up To 33″ (84cm)
- Maximum Load 400lbs (180kgs)
- Total Weight 128lbs (58kg)
- One Year Tool Warranty*
Alpha Black Belt Rail Saw BBS-012 Specifications
| Feature |
Value |
| Model |
BBS-012 |
| Rating |
115Volts |
| Frequency |
Single-phase AC, 60Hz |
| Amperage |
9.6A |
| Power |
1200W |
| Max. RPM |
2,800 RPM |
| Max. HP |
2.0 HP (1.5KW) |
| Weight |
128 lbs (58 kgs) |
| Arbor |
1″ (25.4mm) & 60mm |
| Cutting Disc Diameter |
10″ / 12″ (250mm / 300mm) |
| Max. Cutting Depth |
2-1/4” Single Pass, 3-3/8” Step Cut |
| Max. Cutting Length |
Straight 51″ (130cm), Diagonal 33″ (84cm) |
| Cord |
16.4ft (5m) Single Phase |
| Plug Type |
16A 120V ~ 2P+T |
| Part No. |
Maximum RPM |
Type |
Arbor(s) |
Recommended For |
Description |
| BBS-012 |
22,800 |
1.5KW – 2HP |
1″, 60mm |
Wet Cutting |
Black Belt Rail Saw 115V |

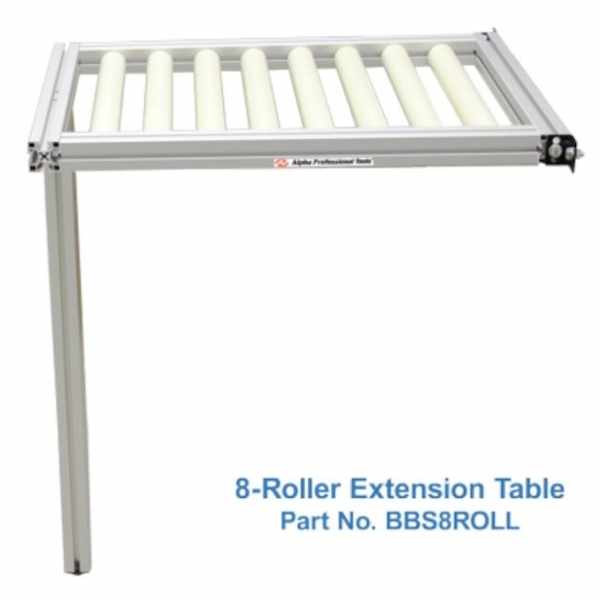

| BBS8ROLL |
|
|
|
Widening the Work Surface |
8-Roller Side Table |

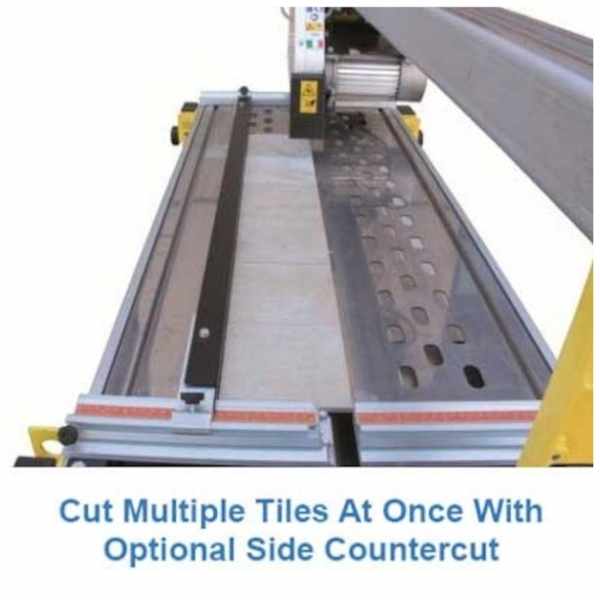

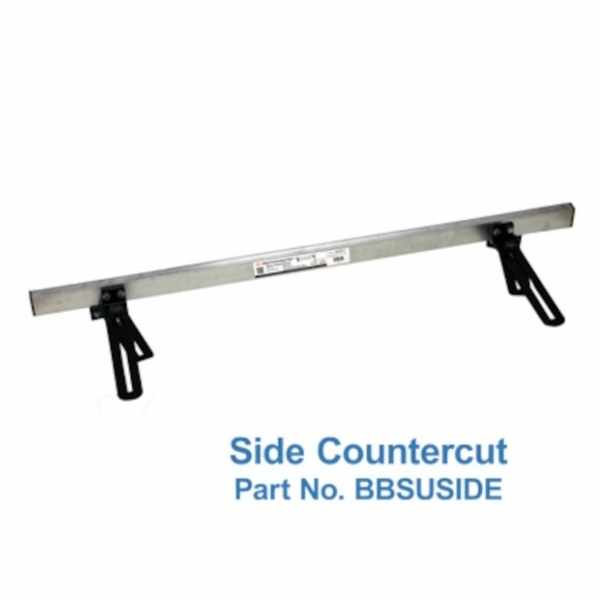

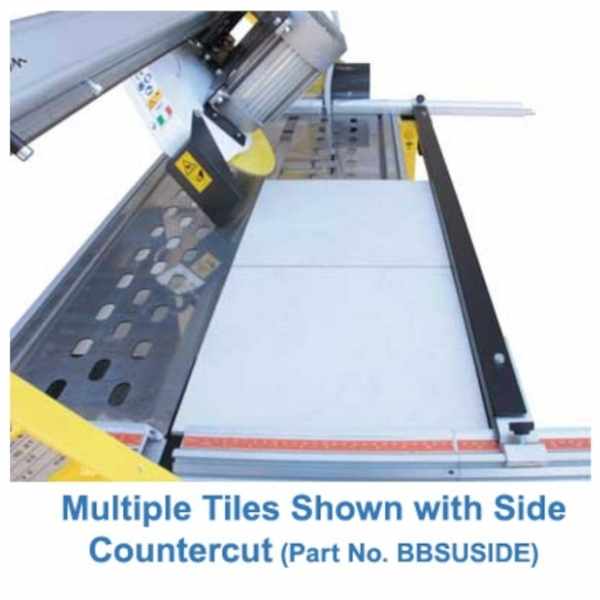

| BBSUSIDE |
|
|
|
Holding Multiple Tiles in Place |
Side Countercut |
Equipment Included
| Item |
Quantity |
| BBS-012 Standard Accessories |
1 |
| BBS12WHL Fat Tire Set |
1 |
Black Belt Rail Saw BBS-012 Related Documents
Additional Information
| PartNo |
UPC Code |
Pkg. Weight (lbs) |
Package Dimensions |
Commodity Code |
Country Of Origin |
| BBS-012 |
749173621475 |
155.00 |
73in x 28in x 42in |
8464.10.0100 |
Italy |
| BBS8ROLL |
749173621512 |
25.00 |
30in x 30in x 7in |
8466.91.5000 |
Italy |
| BBSUSIDE |
749173621529 |
7.00 |
49in x 5in x 5in |
8466.91.5000 |
Italy |
