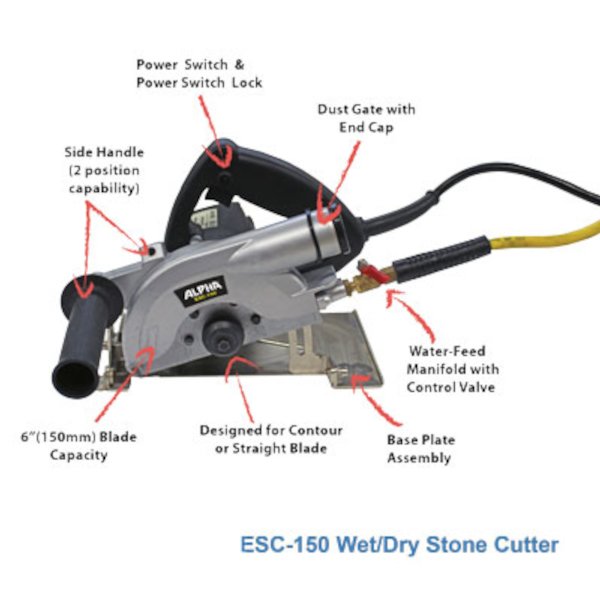

Alpha ESC-150 Miter Cutting Kit
Alpha ESC-150 Miter Cutting Kit brings precision and efficiency to miter cutting applications with a powerful and portable solution. At its core is the ESC-150 Electric Stone Cutter, equipped with a robust motor capable of cutting 1-1/4” (3cm) stone slabs in a single pass.
The kit includes two Carriage Assemblies (ASC-6CSM) that fit seamlessly on the included Guide Rails, providing versatility for both straight and miter cuts. It also comes with two Eclipse II blades (DEE006) and Surface Protection Tape, ensuring clean and accurate results. With three included templates, the system allows quick setup for left-side, right-side, and straight cutting, eliminating the time-consuming adjustments typically required.
Whether used in a dual setup for cutting perfect V-joints ready for lamination or a single setup with simple repositioning, the Alpha ESC-150 Miter Cutting Kit delivers reliable, factory-quality miter cuts with ease.
ESC-150 Miter Cutting Kit Main Features
- One System for Straight, Curve and Miter Cuts
- Precise Miter Cuts for Laminated Waterfall Edge, Book Matching, Pool Copings, Step-Treads, Risers and Wall & Pillar Caps
- Miter Cut 3/4” (2cm) Material with Ease
- For Use On Granite, Quartz Surfaces, Marble, Limestone, Concrete & Sintered Slabs and Porcelain Slabs/Pavers
- One-Time Easy Setup on the Guide Rail Allows for Two Different Miter Cut Positions for Lamination Prep
- Save Time and Increase Shop Productivity

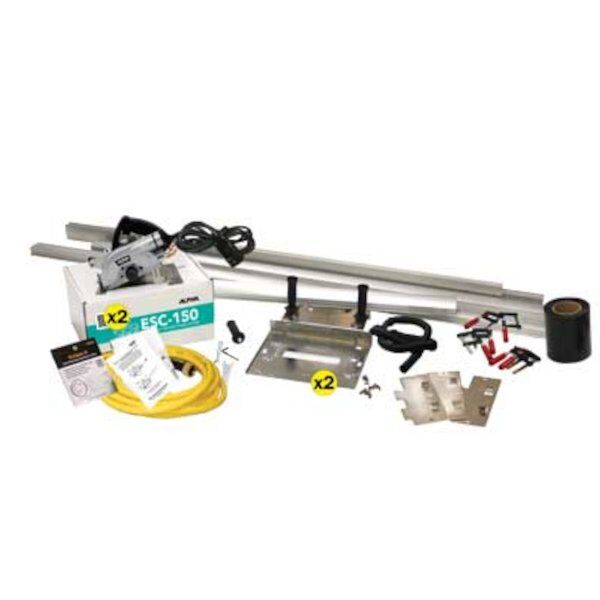

- Kit Contains: 2-ESC-150 Stone Cutters, 2-6″ Eclipse II Blades, 2-6” Carriage Assemblies, Guide Rail Set (4′, 7′, 12′ / 1.2m, 2.1m, 3.6m) & Surface Protection Tape
- One Year Tool Warranty*
Alpha ESC-150 Miter Cutting Kit Videos
ESC-150 Introduction
Making A Laminated Apron by Miter Cutting
How to Make A Laminated Edge using Porcelain Paver Tile
ESC-150 Miter Cutting Kit Specifications
| Feature | Value |
|---|---|
| Model | 5480-5150 (ESC-150) / 5480-5152 (ESC-250) |
| Rating | 110/220 Volts |
| Amperage | 11.2A / 5.5A |
| Power | 1200W |
| No Load Speed (min-1) | 10,000 RPM |
| Weight | 11.30 lbs (5.12 kgs) (Tool Only) |
| Arbor | 7/8″ (22.23mm) |
| Cutting Disc Diameter | 6″ (150mm) |
| Max. Cutting Depth | 2″ (50.88mm) |
| Cord | 15ft (4.5m) Single Phase |
| Plug Type | A (110V) / C (220V) |
| Item | Quantity |
|---|---|
| ESC-150 Wet/Dry Stone Cutter | 2 |
| ESC-150 Standard Accessories | 2 |
| 6″ Eclipse II Blade (DEE006) | 2 |
| 6” Carriage Assembly (ASC-6CSM) | 2 |
| Guide Rail 4′ (1.2m) (ASC-GR04) | 1 |
| Guide Rail 7′ (2.1m) (ASC-GR07) | 1 |
| Guide Rail 12′ (3.6m) (ASC-GR12) | 1 |
| Surface Protection Tape (BAB0650) | 1 |
| Part No. | Description |
|---|---|
| 5480-5150 | ESC-150 Miter Cutting Kit |
| 5480-5152 | ESC-250 Miter Cutting Kit |
Alpha ESC-150 Miter Cutting Kit Related Documents
| Document Type | Link |
|---|---|
| Manual | ESC-150/250 Manual v0721 |
| Parts-Schematic | ESC-150/250 Parts/Schematic v0121 |
| Flyer | ESC-150/ESC-250 Miter Cutting Kit flyer |
| Flyer | ESC-150/ESC-250 flyer |
| Flyer | ESC-150/ESC-250 Countertop Trim Kit flyer |
| Other | Warranty Information |
Additional Information
| PartNo | UPC Code | Pkg. Weight (lbs) | Package Dimensions | Commodity Code | Country Of Origin |
|---|---|---|---|---|---|
| 5480-5150 | 749173661709 | 148.00 | Box1-40lbs, 17in x 13in x 18in; Box2-36lbs, 20in x 16in x 8in; Box3-14lbs, 56in x 4in x 4in; Box4-22lbs, 93in x 5in x 5in; Box5-36lbs, 80in x 5in x 5in | See Individuals | See Individuals |
| 5480-5152 | 749173661716 | 148.00 | Box1-40lbs, 17in x 13in x 18in; Box2-36lbs, 20in x 16in x 8in; Box3-14lbs, 56in x 4in x 4in; Box4-22lbs, 93in x 5in x 5in; Box5-36lbs, 80in x 5in x 5in | See Individuals | See Individuals |
| ASC-GR07 | 749173450792 | 20.35 | 92in x 2in x 4in | 8466.91.0190 | China |
| DEE006 | 749173460500 | 0.40 | 7in x 6.5in x 0.25in | 8202.91.0000 | Japan |
| ASC-6CSM | 749173621444 | 15.50 | 18in x 14in x 3in | 8467.99.1000 | China |
| ASC-GR04 | 749173450785 | 14.05 | 6in x 4in x 4in | 8466.91.0190 | China |
| ASC-GRKIT | 749173450815 | 67.50 | 92in x 7.5in x 3.5in | 8466.91.0190 | China |
| ASC-GR12 | 749173450808 | 34.70 | 79.5in x 3.5in x 3.5in | 8466.91.0190 | China |
| BAB0650 | 749173541018 | 2.40 | 5.5in x 5.5in x 6.25in | 3919.10.2055 | Japan |
Frequently Asked Questions
What is the warranty on the ESC-150?
One year warranty (See manual for details)
How can I get the parts list and schematic for the ESC-150?
Visit our website at www.alpha-tools.com or call at 800-648-7229.
Can I use ASC-5CSM Universal Carriage System I already own?
No you cannot use the ASC-5CSM Universal Carriage System due to the fact it is designed for ESC-125 which is a 5” stone cutter. Alpha® offers an ASC-6CSM which is compatible with ESC-150 and PSC-150.
What kind of cutting table do you recommend for ESC-150 Miter Cutting Kit?
It is dependent on your shop environment and the size of material you are working with. One of the most important points is to stabilize the material while you are cutting in order to get the best results. Alpha® recommends using a Styrofoam sheet that is larger than your material to support entire slab. Styrofoam provides a good support for entire surface and dampens the vibration during the cutting. When you are cutting as dry application, blade should be encapsulated in the Styrofoam so that the dust will not breach out from the bottom of the slab.
What is different between the Omega Diamond Miter Master System and the Alpha® Miter Cutting Kit?
The Omega system uses two units of 7” Makita angle grinders which draws 15 amp each and the 5” Makita angle grinder draws 12 amp each. The two units are connected and cut together so that you may need to connect with two different circuit breakers. The Alpha® Miter Cutting Kit can be used not only for a miter cut, but also for plunge cut and straight cut using the carriage. Since you can remove the ESC-150 from the carriage, you can use it for many other applications including curve cutting by free hand operation. The Omega system must enter from the side of stone and when the grinder is removed from the carriage, it is just an angle grinder. The Alpha® Miter Cutting Kit uses powerful electric stone cutter that requires less maintenance as compared with the electric angle grinder.
Does the Alpha® Eclipse II blade that is included in the kit cut sintered slabs and large format porcelain panels?
Alpha® recommends the Eclipse II blade for Quartzite, Granite and Engineered Stone/Quartz-Surfaces. If you are cutting large format porcelain panels, Alpha® recommends the Libero blade for the best performance as well as the Katana blade as an alternative
Does Alpha® offer Pneumatic Miter Cutting Kit?
Yes. Alpha® offers Pneumatic version of Miter Cutting Kit that comes with PSC-150 Pneumatic Stone Cutter instead of the ESC-150 Electric Wet/Dry Stone Cutter.
