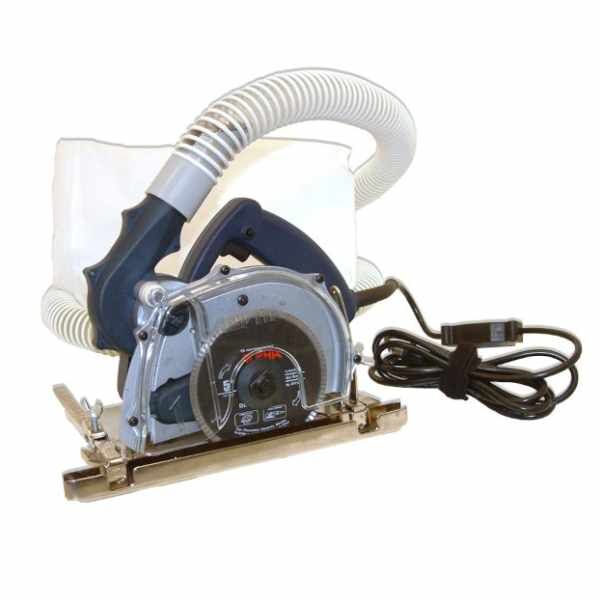

Alpha ECC-125 Ecocutter
The Alpha ECC-125 Ecocutter is a powerful, stand-alone dry cutting solution designed for professionals who demand clean and efficient results. Originally launched as part of the Ecocutter Dry Tile Cutting System, this portable tool is now available on its own, delivering the same trusted performance in a more versatile package.
Equipped with a built-in impeller, the ECC-125 generates airflow that captures dust at the source and directs it into the included dust bag—effectively reducing harmful airborne particles during dry cutting. Whether you’re working in a workshop or out in the field, the Alpha ECC-125 Ecocutter is an excellent choice for safe, mess-free tile cutting when paired with the proper accessories.
ECC-125 Ecocutter Main Features
- Virtually Dust-Free
- Portable Cutting System
- Accurate Cutting Performance
- Eliminates Downtime
- Built-In Breaker Assembly

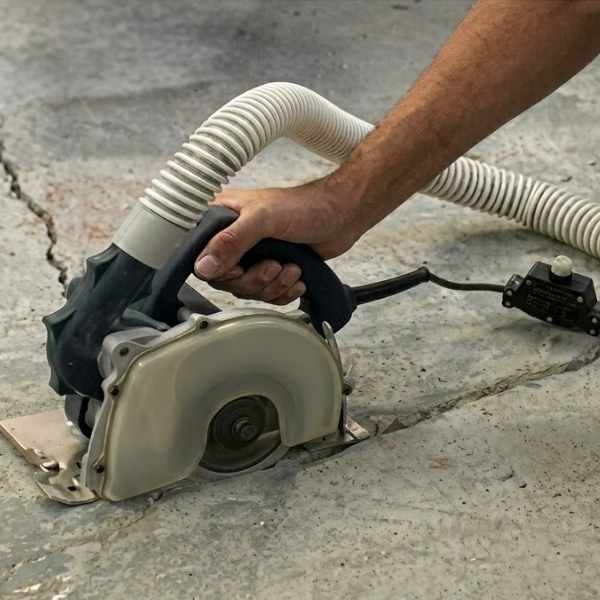

- Great for Grout Removal, Crack Chasing and Concrete Profiling
- One Year Tool Warranty*
Alpha ECC-125 videos
Ecocutter w/Katana on Large Thin Panels
Ecocutter w/Hot-Rod for Grout Removal
How to work on Porcelain Paver Tiles
ECC-125 Ecocutter Technical Specifications
| Feature | Value |
|---|---|
| Model | ECC-125 |
| Rating | 110 Volts |
| Amperage | 11.2A |
| Power | 1200W |
| No Load Speed (min-1) | 12,000 RPM |
| Weight | 9.5 lbs (4.3 kgs) |
| Arbor | 7/8″ (22.23mm) |
| Cutting Disc Diameter | 5″ (125mm) |
| Max. Cutting Depth | 1-1/8″ (29mm) |
| Part No. | Size | Maximum RPM | Type | Arbor(s) | Recommended For | For Use On | Description |
|---|---|---|---|---|---|---|---|
| ECC-125 | 5″ | 12,000 | 110V | 7/8″ (22.23mm) | Virtually Dust-free Cutting | Tile | Ecocutter |

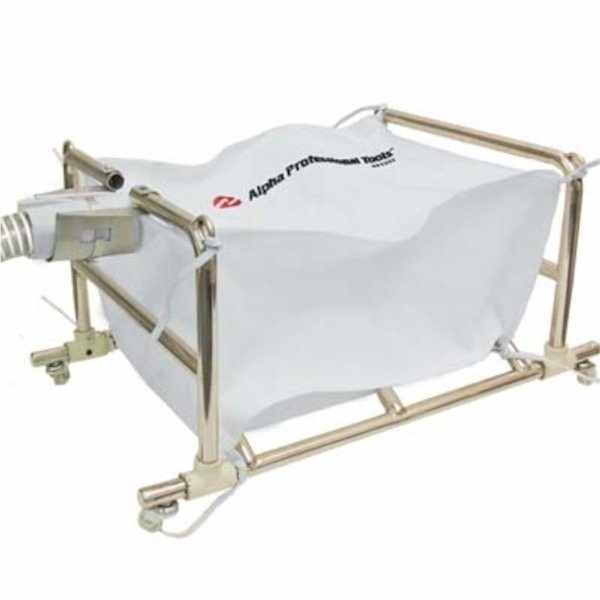

| 1335441 | 7″ x 13-1/2″ x 12″ | Dust Bag Carriage | Dust Bag w/strap |
Equipment Included
| Item | Quantity |
|---|---|
| Dust Hose | 1 |
| Dust Gate | 1 |
| Side Handle | 1 |
| Hexagon Ring Spanner | 1 |
| Wrench | 1 |
| Dust Bag | 1 |
| TT Ruler | 1 |
| Hook & Loop Strap | 2 |
Alpha ECC-125 Ecocutter Related Documents
| Document Type | Link |
|---|---|
| Manual | ECC-125 |
| Parts-Schematic | ECC-125 Parts/Schematic |
| Flyer | Grout Removal System flyer |
| Other | Warranty Information |
Additional Information
| PartNo | UPC Code | Pkg. Weight (lbs) | Package Dimensions | Commodity Code | Country Of Origin |
|---|---|---|---|---|---|
| ECC-125 | 749173660016 | 14.90 | 16in x 12in x 14in | 8467.22.0020 | China |
Frequently Asked Questions
What can I do if my ECC-125/225 breaks down and I need to complete the job immediately?
First check the belts and carbon brushes, if they appear worn out, replace them with genuine Alpha parts and test the ECC-125/225 before attempting to resume cutting. If the problem still persists, contact the Tool Repair Department at Alpha Professional Tools® at 800-648-7229 ext 281 to speak to a service technician.
There are two felt strips supplied with my ECC-125/225, what are they used for?
These two felt strips can be attached to the bottom of the base plate to prevent any possible scratching of the material when using the ECC-125/225 without the table and stand. Without these felt strips, the base plate would slide directly on the surface of the material.
Can I reuse my dust bag?
Yes. The dust bag can be emptied and re-used. However; you may need to eventually reorder a new bag.
How can I get the parts list and schematic for the ECC-125/225?
Visit website at www.alpha-tools.com or call at 800-648-7229.
What is the metal attachment that comes with the tool used for?
This item is called the Guide Ruler or TT Ruler Guide. It is designed to enhance the cutting performance of the ECC-125/225 by providing a guide that will work against the straight edge of the stone or a rail of some type clamped to the stone surface for use without the table and stand.
What materials can be cut using the Alpha® Ecocutter?
The Alpha® Ecocutter (ECC-125 or ECC-225) choice of blade is the Alpha® Katana. This dry cutting blade is specifically designed to cut porcelain tiles, however; this blade can also cut granite, marble, engineered stone and glazed ceramic tiles.
What blade arbor size is required for use of the Alpha® ECC-125/225?
The arbor size required is 7/8”.
What is the RPM of the ECC-125/225?
The RPM of the ECC-125/225 is: 12,000.
What is the largest size blade that the ECC-125/225 will except?
The ECC-125/225 accepts blades with a maximum diameter of 5”.
How much does the Ecocutter weigh?
The ECC-125/225 weighs 26 lbs. with the accessories.
What kind of blades can I use on my ECC-125/225?
The following can be used as dry applications: o Concrete Profiling Wheel: CPE445 o Crack Chasing Wheel: DCC478 o Eclipse: DEE005, DEE045 o Hot-Rod (Granite) HR03A+, HT03A+, HQ03A+, HW03A+ o Hot-Rod (Marble) HM03A+, HS03A+ o Katana: DPT125, DPT115 o Libero: DL05S, DL05A+ o Numero Uno: GM05S, GM05A+ o Plus: DA05S, DA05A+ o Sonic: TS05AL, TS05S o Tuck Point: TP04AP
What is the maximum thickness material the Alpha® ECC-125 can cut?
The ECC-125 has a maximum cutting depth of 2cm.
Why do you recommend running the tool for 15 seconds prior to cutting the material?
We give this recommended time to allow the dust bag to inflate and fill the tiny micro fibers within the bag so no dust will escape during the cutting application.
When I stop cutting, dust comes out near the blade, why?
Check to make sure the back flow assembly is attached correctly, so it closes once the tool is shut off. Also, the tool should be run for 15 seconds after you cut through the tile to allow the dust on the table to pass through the tool, fan and hose to the dust bag.
What is the warranty for the Ecocutter ECC-125/225?
Alpha® warrants the ECC-125/225 for a period of 180 days from the date of original retail purchase (proof of purchase is required) and it is limited to the repair or replacement of parts without charge.
What can I due to maintain my ECC-125 and keep it running like new?
Unplug the tool, remove the blade and belt covers to check and clean the belts after every 100 hours of use. Stone dust will get inside the covers and onto the belts and pulleys, this can cause the belts to wear and the pulleys to slip. The belts should be replaced when showing signs of wear. A worn or stretched belt will not be able to center itself on the pulleys and can come off or wear a hole in the belt cover. After every 300 hours of use you should check the carbon brushes. Replacement of the belts and carbon brushes on a periodic basis is the first step to any type of maintenance. If complications begin to arise during cutting, or if unusual noises occur, check the belts and pulleys. If the unit is working correctly and you still hear the noise, this could be an indication that a bearing is going. If this occurs, then we recommend that you send your tool in for repair. Our Tool Repair Department will disassemble and evaluate the tool, and provide an estimate for your approval, before repairing this tool. The sooner a tool is checked after noticing an abnormal noise, the less likely there will be a significant amount of damage.
If my ECC-125/225 breaks down, whom should I contact for repair?
You can contact the dealer where you purchased the tool or you can send it directly to Alpha® for repair. Visit website at www.alpha-tools.com or call at 800-648-7229 for more information.
