Alpha Countertop Trim Kit (ESC-125)
Alpha Countertop Trim Kit (ESC-125) is designed for professionals working with pre-fabricated countertops or custom stone installations requiring precise trimming. This second-generation kit features the advanced ESC-125 Wet/Dry Stone Cutter, combined with a durable carriage assembly and a 4’ guide rail to deliver clean, straight cuts with ease.
Crafted with high-quality construction, the components are simple to set up and operate, making the kit both reliable and efficient on the job. Ideal for cutting and trimming slabs, the Alpha Countertop Trim Kit (ESC-125) is an essential solution for contractors seeking accuracy, productivity, and professional results.
Countertop Trim Kit (ESC-125) Main Features
- Recommended for Hard Surfaces
- Eclipse II Blade has 8mm Tall Diamond Layer for a Long Life
- Perfect for your Stone Tile Application
- High-End General Purpose Turbo Blade for Stone Fabricators
- Consistent Performance without Chipping

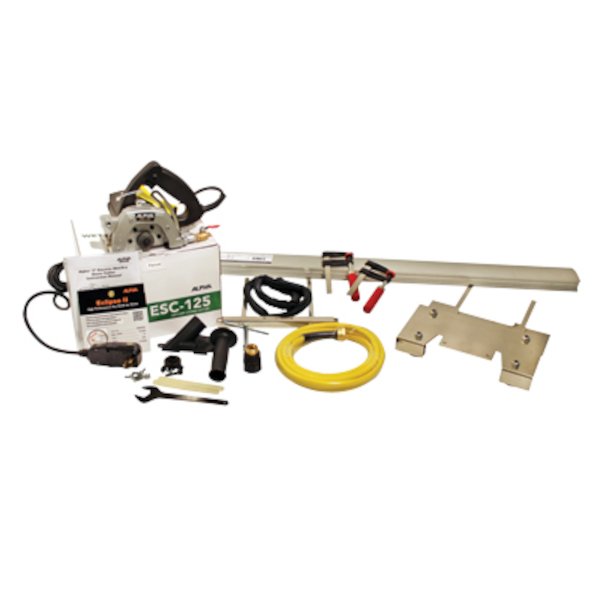

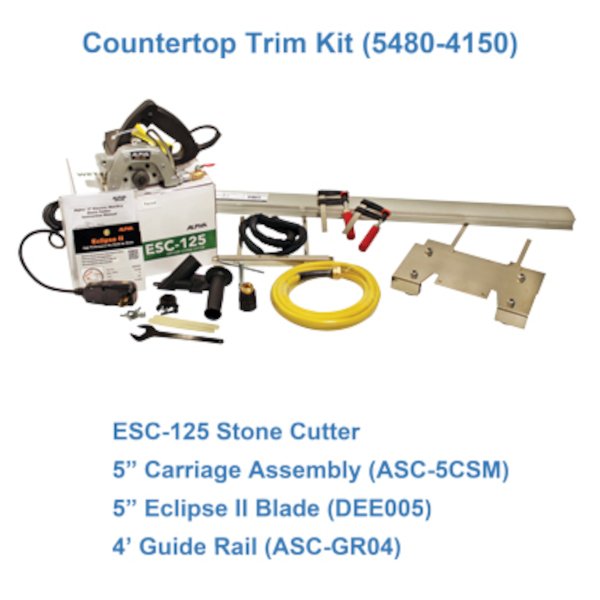

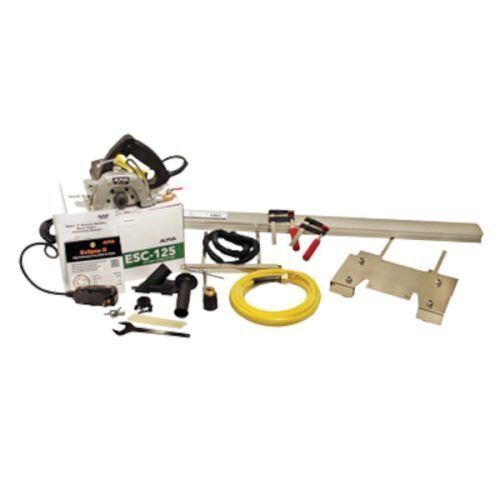

- Kit Contains: ESC-125 Stone Cutter, 5” Carriage Assembly, 5” Eclipse II Blade and 4’ Guide Rail
- One Year Tool Warranty*
Alpha Countertop Trim Kit (ESC-125) Videos
How to Trim Countertops
Best Wet and Dry Stone Cutter
Countertop Trim Kit (ESC-125) Specifications
| Feature | Value |
|---|---|
| Model | 5480-4150 (ESC-125) / 5480-4152 (ESC-225) |
| Rating | 110/220 Volts |
| Amperage | 11.2A / 5.5A |
| Power | 1200W |
| No Load Speed (min-1) | 12,000 RPM |
| Weight | 8.9 lbs (4.0 kgs) (Tool Only) |
| Arbor | 7/8″ (22.23mm) |
| Cutting Disc Diameter | 5″ (125mm) |
| Max. Cutting Depth | 1-5/8″ (41mm) |
| Cord | 15ft (4.5m) Single Phase |
| Plug Type | A (110V) / C (220V) |
| Item | Quantity |
|---|---|
| ESC-125 / ESC-225 Wet Stone Cutter | 1 |

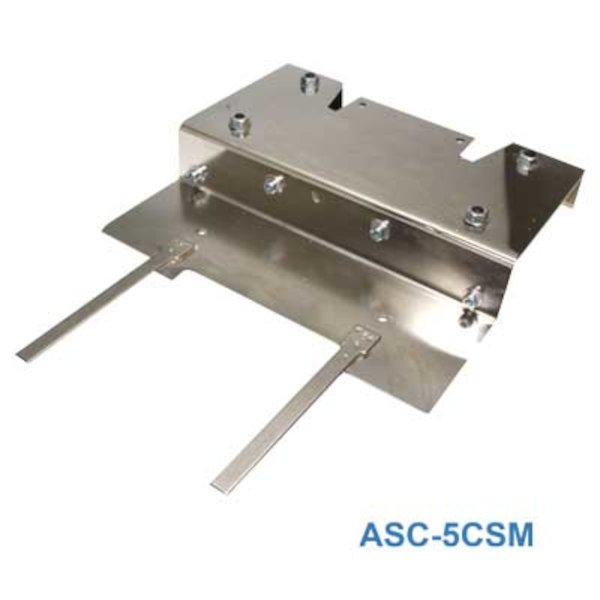

| 5” Carriage Assembly (ASC-5CSM) | 1 |
| Alpha® Eclipse II 5″ (DEE005) | 1 |
| Guide Rail 4′ (1.2m) (ASC-GR04) | 1 |
| ESC-125 / ESC-225 Standard Accessories | 1 |
| Part No. | Description |
|---|---|
| 5480-4150 | Countertop Trim Kit (ESC-125) |
| 5480-4152 | Countertop Trim Kit (ESC-225) |
Alpha Countertop Trim Kit (ESC-125) Related Documents
| Document Type | Link |
|---|---|
| Manual | VDP-700 v1 |
| Manual | WSPKIT Manual v1 |
| Flyer | WSPKIT flyer |
| Flyer | VDP-700 flyer |
| Flyer | Pool Coping Kit |
| Flyer | Edge Treatment Systems for Hardscape |
| Other | Warranty Information |
Additional Information
| PartNo | UPC Code | Pkg. Weight (lbs) | Package Dimensions | Commodity Code | Country Of Origin |
|---|---|---|---|---|---|
| 5480-4150 | 749173661563 | 33.25 | Box1-19.25lbs, 14in x 16in x 14in; Box2-14lbs, 56in x 4in x 4in | See Individuals | See Individuals |
| 5480-4152 | 749173661679 | 33.25 | Box1-19.25lbs, 14in x 16in x 14in; Box2-14lbs, 56in x 4in x 4in | See Individuals | See Individuals |
| ESC-125 | 749173621406 | 12.95 | 11.25in x 10.5in x 8in | 8467.22.0020 | China |
| ESC-225 | 749173621451 | 12.95 | 11.25in x 10.5in x 8in | 8467.22.0020 | China |
| DEE005 | 749173460494 | 0.30 | 6in x 5.5in x 0.25in | 8202.91.0000 | Japan |
| ASC-5CSM | 749173621420 | 6.30 | 15in x 13in x 4in | 8466.91.0000 | China |
| ASC-GR04 | 749173450785 | 14.05 | 6in x 4in x 4in | 8466.91.0190 | China |
Frequently Asked Questions
What is the ideal material I can cut using the ESC-125 Wet/Dry Stone Cutter?
The Alpha® ESC-125 Wet/Dry Stone Cutter is ideal for those working with granite, quartz surfaces, marble, limestone, concrete and sintered slabs.

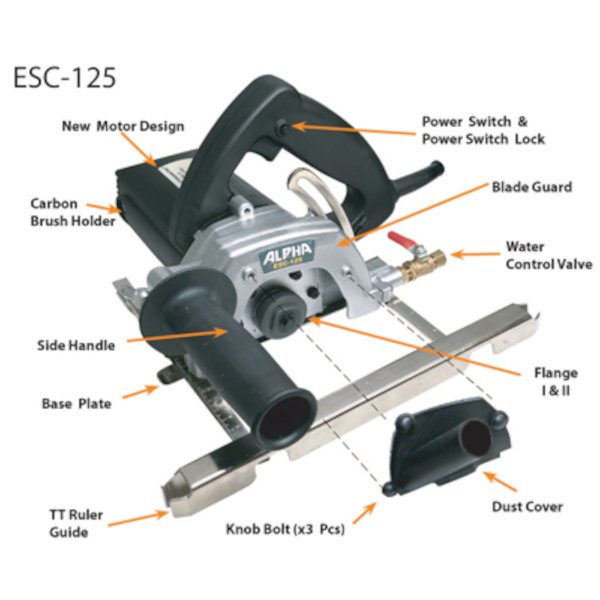

Should I use the TT Ruler Guide up or down?
It depends on your application. If you are using the edge of the slab to cut straight, you need the TT Ruler Guide facing down. If you are cutting along with the straight edge on the slab, you need the TT Ruler Guide facing up.

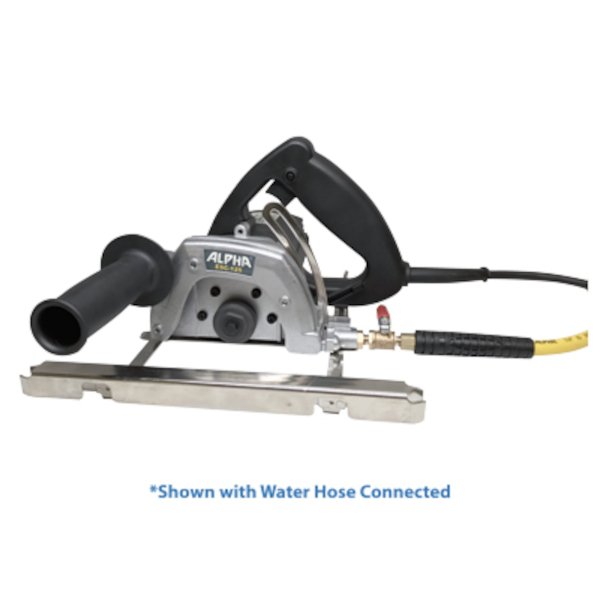

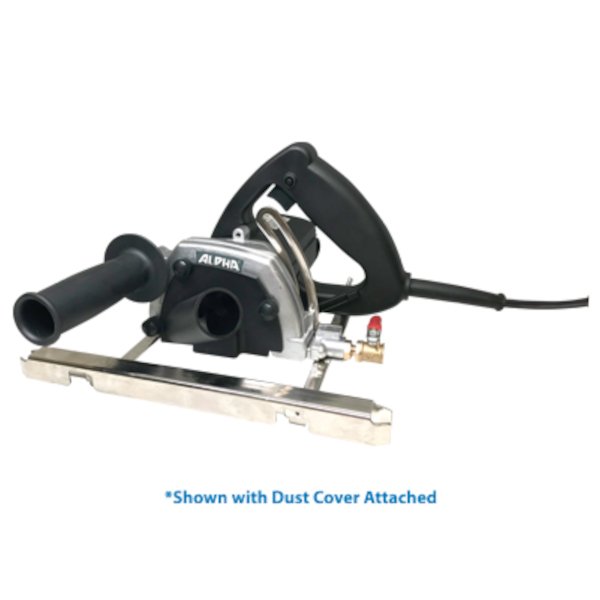

What kind of vacuum cleaner shall I use with ESC-125?
You need to use HEPA Vacuum according to OSHA’s Table 1. Please see link below for details. https://www.osha.gov/pls/oshaweb/owadisp.show_document?p_table=STANDARDS&p_id=1270
What is the warranty on the ESC-125?
One year warranty (See manual for details)
How can I get the parts list and schematic for the ESC-125?
Visit our website at www.alpha-tools.com or call at 800-648-7229.
