Alpha Pool Coping Kit
Alpha Pool Coping Kit delivers a complete solution for coping applications on 5cm (2”) thickness materials. For added versatility, Alpha® also offers an optional 6cm (2-3/8”) Profiler V, designed to create a uniform bullnose edge effortlessly when paired with the VDP-700 variable speed rotary polisher and the wet sanding/polishing kit (WSPKIT). With most paving materials featuring a honed surface, the included #80 Sandpaper ensures a matching finish on profiled edges.
This kit also comes with practical accessories such as a waterproof apron and GFCI, ensuring safe and comfortable operation. By using the Alpha Pool Coping Kit, hardscape contractors can increase profitability while avoiding the need to subcontract coping applications to stone fabricators. Simple, efficient, and turnkey, this kit streamlines the entire process from start to finish.
Pool Coping Kit Main Features
- Complete Kit For Coping Projects
- Creates A Uniform Bullnose Edge Treatment With Ease
- Use On Granite, Engineered Stone, Marble, Limestone, Concrete, Crystallized Glass/Porcelain Slabs And Porcelain Pavers
- Designed For The Polishing Professional
- VDP-700 Is Variable Speed 700-3500 RPM With Soft Start
- C-Handle And Side Handle Included For User Convenience
- Convenient Hook and Loop Backer Pad Is Extremely Flexible
- 15ft. All-Weather Water Hose With Flexibility Down To -40°F Or +140°F (-40°C Or +60°C)
- Save Money and Use Your Dry Tool Wet!
- One Year Warranty* on VDP-700
Alpha Pool Coping Kit Videos
How to Make Pool Coping
Alpha Pool Coping Kit Specifications
| Feature | Value |
|---|---|

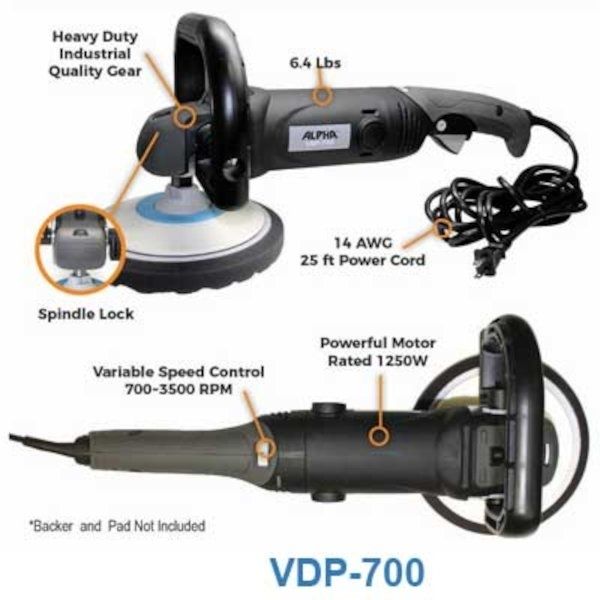

| Model | 5480-6100 (VDP-700) |
| Rating | 120 Volts |
| Amperage | 11.0A |
| Power | 1250W (Rated), 1900W (Maximum) |
| No Load Speed (Variable) | 700~3500 RPM with Soft Start |
| Weight | 6.4 lbs (2.9 kgs) |
| Spindle | 5/8″-11 |
| Power Supply | Single-phase AC, 50/60Hz |
| Plug Type | A (120V) |
| Cord | 25ft (7.6m) (14 AWG) |
| Backing Plate Size | 7” (178mm) (Maximum) |
| Polishing Disc Size | 9” (228mm) (Maximum) |

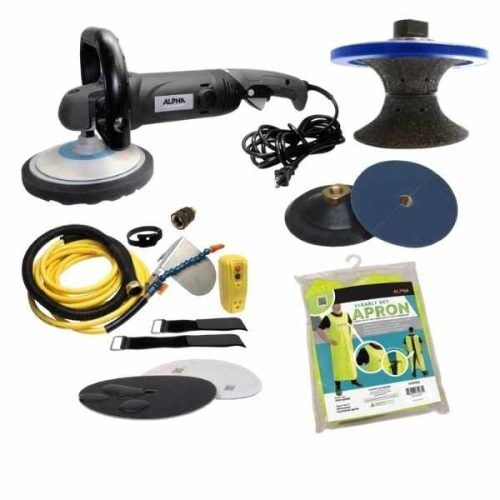

| Item | Quantity |
|---|---|
| VDP-700 Variable Speed Rotary Polisher | 1 |
| Wet Sanding/Polishing Kit (WSPKIT) | 1 |

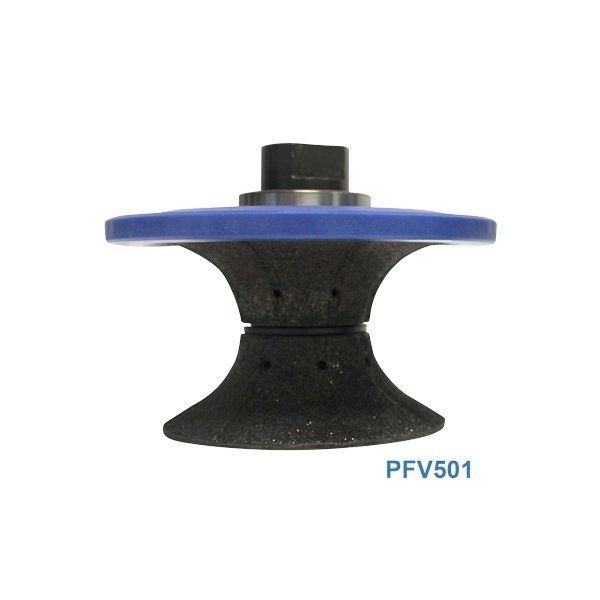

| Profiler V Full Bullnose 2″ (5cm) (PFV501) | 1 |

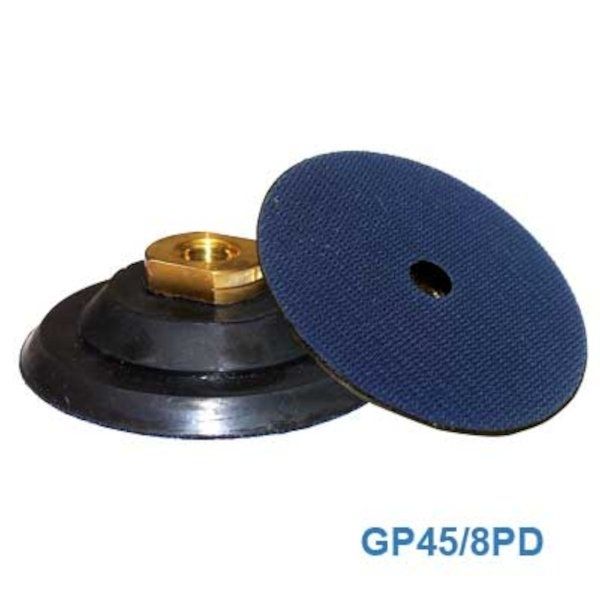

| Flexible Backer Pad 5″ (GP55/8PD) | 1 |
| Sandpaper 5″ #80 (MP50080) | 1 |

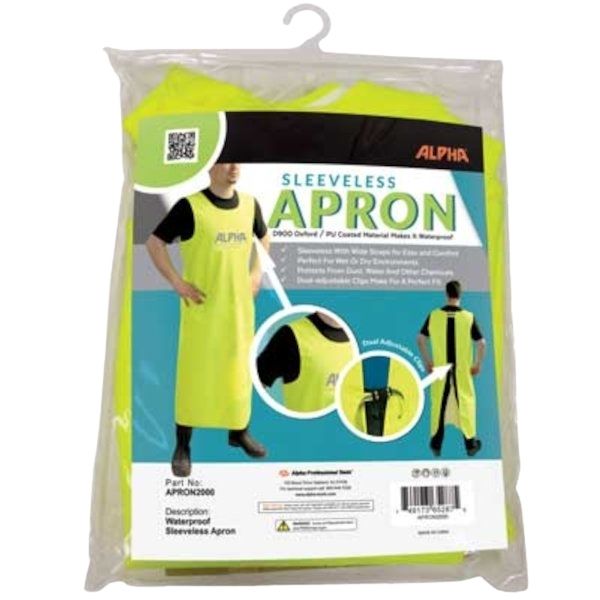

| Waterproof Apron-Sleeveless (APRON2000) | 1 |
| Part No. | Description |
|---|---|
| 5480-6100 | Pool Coping Kit |
Alpha Ecoguard CD Related Documents
| Document Type | Link |
|---|---|
| Manual | VDP-700 v1 |
| Manual | WSPKIT Manual v1 |
| Flyer | WSPKIT flyer |
| Flyer | VDP-700 flyer |
| Flyer | Pool Coping Kit |
| Flyer | Edge Treatment Systems for Hardscape |
| Other | Warranty Information |
Additional Information
| PartNo | UPC Code | Pkg. Weight (lbs) | Package Dimensions | Commodity Code | Country Of Origin |
|---|---|---|---|---|---|
| 5480-6100 | 749173661655 | 19.5 | 28in x 10.5in x 10.5in | See Individuals | See Individuals |
| VDP-700 | 749173541117 | 10.70 | 19.75in x 8in x 5.5in | 8464.20.0120 | China |
| WSPKIT | 749173462023 | 2.90 | 9.25in x 9.25in x 4in | 8202.91.0000 | China |
| PFV501 | 749173473166 | 2.60 | 5.5in x 6in x 5.25in | 6804.21.0000 | China |
| GP45/8PD | 749173520389 | 0.40 | 4.5in x 4in x 1.25in | 8466.91.0000 | Japan |
| MP50080 | 749173440144 | 1.20 | 5.25in x 5.25in x 4in | 6805.20.0000 | Japan |
| APRON2000 | 749173652875 | 1.75 | 12in x 18in x 1in | 3926.20.9010 | Vietnam |
Frequently Asked Questions
Can I use Alpha® Pool Coping Kit on hard stone such as granite pavers?
Yes you can. Due to the hardness of granite pavers, #80 sandpaper may not be the most suitable sanding media. Alpha® also offers various Ceramica flexible diamond polishing discs to expedite the process.
What is the warranty on the VDP-700?
One year warranty (See manual for details)
How can I get the parts list and schematic for the VDP-700?
Visit our website at www.alpha-tools.com or call at 800-648-7229
What is the recommended RPM for profiling and sanding?
You can use entire speed range of VDP-700 for both profiling and sanding application.
Can I use Alpha® Pool Coping Kit as a dry application?
No. If you use Alpha Profiler dry, it will build up heat and would destroy the nylon guide. Also, since we currently do not offer a dust shroud to collect dust, it will not be compliant with OSHA silica rules. Please see link below for details. https://www.osha.gov/pls/oshaweb/owadisp.show_document?p_table=STANDARDS&p_id=1270
Travertine surface has been filled with resin but the when I created the bullnose profile on the edge, pores open up on entire edge. What can I do after profiling application?
Travertine Filler is widely available from your hardscape suppliers that must be applied to desired profiled edge prior to sanding process. After filler dry completely, you can continue sanding with #80 sandpaper to complete coping process.
