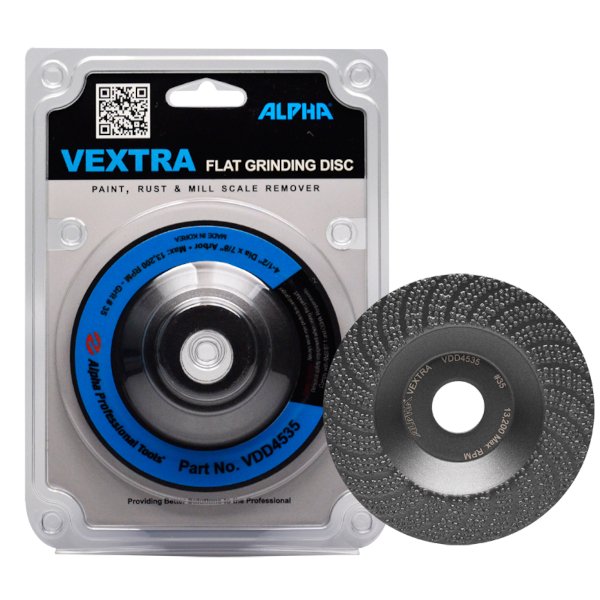

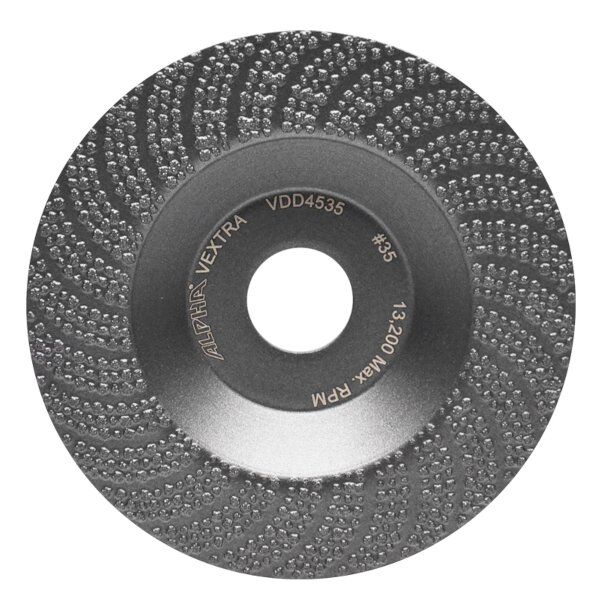

Alpha Vextra Flat Disc
Alpha Vextra Flat Disc is engineered for grinding steel, stainless steel, and non-ferrous metals in Ex ZONE environments where spark reduction is essential. Its versatility also makes it ideal for removing rust, burrs, mill scale, paint, epoxy, glues, and adhesives without clogging the grinding surface. Featuring a unique sandwich construction with rubber, this disc offers a lightweight design that reduces vibration and noise, minimizing operator fatigue.
With optimized diamond grit and layer arrangement, the Alpha Vextra Flat Disc delivers long life, consistent performance, and maximum productivity. Designed to grind flat, it improves wheel coverage and efficiency while maintaining reliable results. Beyond metals, it can also be used effectively on natural stone, engineered quartz surfaces, wood, and rubber.
Available in 4.5”, 5”, and 7” sizes, with a 7/8” arbor or 5/8”-11 zinc hub, the Alpha Vextra Flat Disc is the professional’s choice for durability, precision, and versatility.
Alpha Vextra Flat Disc Main Features

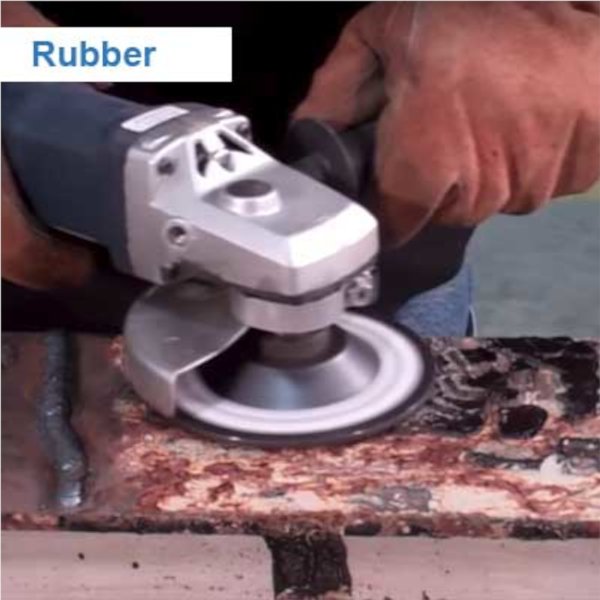

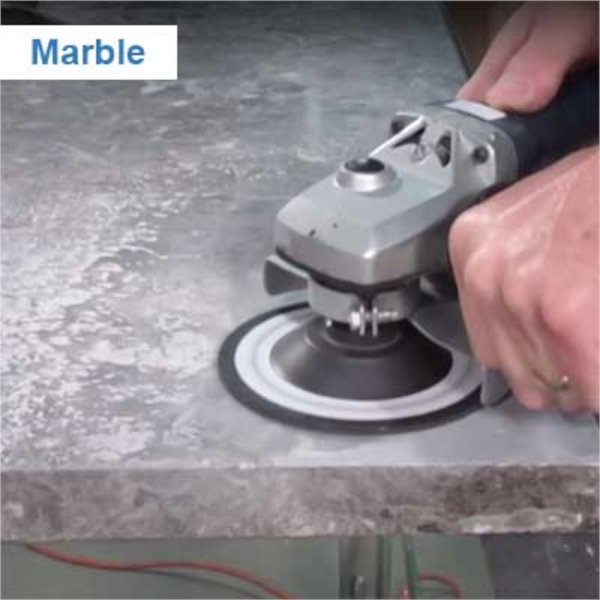

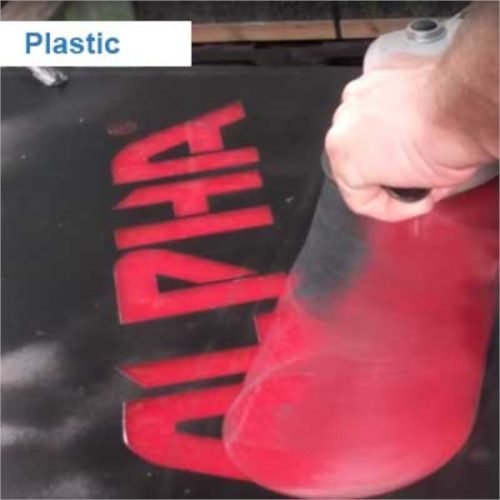

- Can Be Used On Natural Stones, Engineered Stone/Quartz Surface, Wood and Rubber

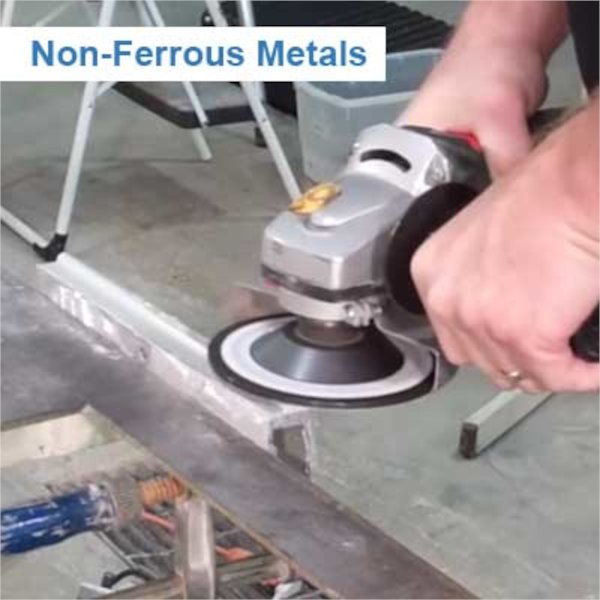

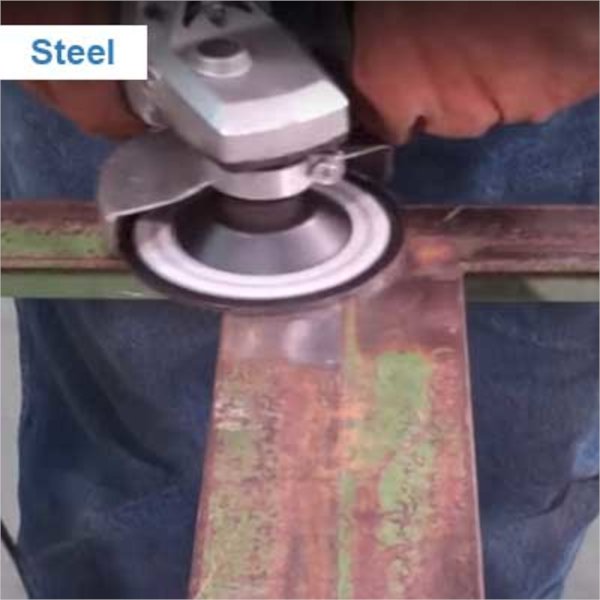

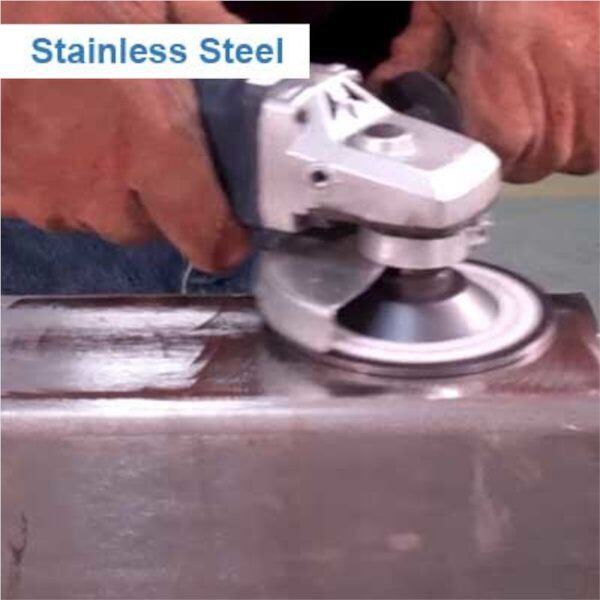

- Designed To Grind Steel, Stainless Steel and Non-Ferrous Metals

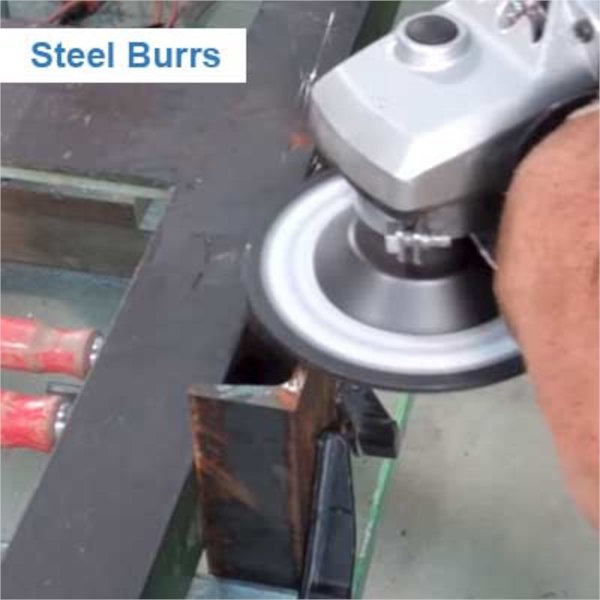

- Great for Removing Rust, Burrs, Mill Scale, Paint On Metal Surfaces Without Clogging The Grinding Surface
- Optimized Diamond Grits for Consistent Performance
- Sandwich Construction Reduces Noise and Vibration
- Available in 4-1/2”, 5” and 7” with 7/8” Arbor or with 5/8”-11 Zinc Hub
- Works Well When Eliminating Epoxy, Glues and Adhesives
- Very Aggressive and A Long Life
Alpha Vextra Flat Disc Videos
Vextra Flat Grinding Discs
Alpha Vextra Flat Disc Specifications
| Part No. | Size | Maximum RPM | Arbor(s) | Recommended For | Grit |
|---|---|---|---|---|---|
| VDD4535 | 4-1/2″ | 13,200 | 7/8″ | General Purpose | 35 |
| VDD453H | 4-1/2″ | 13,200 | 5/8″-11 | General Purpose | 35 |
| VDD4550 | 4-1/2″ | 13,200 | 7/8″ | General Purpose | 50 |
| VDD455H | 4-1/2″ | 13,200 | 5/8″-11 | General Purpose | 50 |
| VDD4580 | 4-1/2″ | 13,200 | 7/8″ | General Purpose | 80 |
| VDD458H | 4-1/2″ | 13,200 | 5/8″-11 | General Purpose | 80 |
| VDD5035 | 5″ | 12,200 | 7/8″ | General Purpose | 35 |
| VDD503H | 5″ | 12,200 | 5/8″-11 | General Purpose | 35 |
| VDD5050 | 5″ | 12,200 | 7/8″ | General Purpose | 50 |
| VDD505H | 5″ | 12,200 | 5/8″-11 | General Purpose | 50 |
| VDD5080 | 5″ | 12,200 | 7/8″ | General Purpose | 80 |
| VDD508H | 5″ | 12,200 | 5/8″-11 | General Purpose | 80 |
| VDD7035 | 7″ | 8,400 | 7/8″ | General Purpose | 35 |
| VDD703H | 7″ | 8,400 | 5/8″-11 | General Purpose | 35 |
| VDD7050 | 7″ | 8,400 | 7/8″ | General Purpose | 50 |
| VDD705H | 7″ | 8,400 | 5/8″-11 | General Purpose | 50 |
| VDD7080 | 7″ | 8,400 | 7/8″ | General Purpose | 80 |
| VDD708H | 7″ | 8,400 | 5/8″-11 | General Purpose | 80 |
Vextra Flat Disc Related Documents
| Document Type | Link |
|---|---|
| Safety Data Sheet | Diamond Metal Bonded Blades, Grinding Wheels & Core Bits |
| Flyer | Vextra Grinding Disc flyer |
Additional Information
| PartNo | UPC Code | Pkg. Weight (lbs) | Package Dimensions | Commodity Code | Country Of Origin |
|---|---|---|---|---|---|
| VDD4535 | 749173670541 | 0.50 | 8.75in x 6.25in x 1.5in | 6804.21.0000 | Korea |
| VDD453H | 749173670558 | 0.60 | 8.75in x 6.25in x 1.5in | 6804.21.0000 | Korea |
| VDD4550 | 749173670565 | 0.50 | 8.75in x 6.25in x 1.5in | 6804.21.0000 | Korea |
| VDD455H | 749173670572 | 0.60 | 8.75in x 6.25in x 1.5in | 6804.21.0000 | Korea |
| VDD4580 | 749173670664 | 0.50 | 8.75in x 6.25in x 1.5in | 6804.21.0000 | Korea |
| VDD458H | 749173670671 | 0.60 | 8.75in x 6.25in x 1.5in | 6804.21.0000 | Korea |
| VDD5035 | 749173670220 | 0.55 | 8.75in x 6.25in x 1.5in | 6804.21.0000 | Korea |
| VDD503H | 749173670237 | 0.65 | 8.75in x 6.25in x 1.5in | 6804.21.0000 | Korea |
| VDD5050 | 749173670244 | 0.55 | 8.75in x 6.25in x 1.5in | 6804.21.0000 | Korea |
| VDD505H | 749173670251 | 0.65 | 8.75in x 6.25in x 1.5in | 6804.21.0000 | Korea |
| VDD5080 | 749173670589 | 0.55 | 8.75in x 6.25in x 1.5in | 6804.21.0000 | Korea |
| VDD508H | 749173670596 | 0.65 | 8.75in x 6.25in x 1.5in | 6804.21.0000 | Korea |
| VDD7035 | 749173670602 | 1.15 | 11in x 8.5in x 1.5in | 6804.21.0000 | Korea |
| VDD703H | 749173670619 | 1.25 | 11in x 8.5in x 1.5in | 6804.21.0000 | Korea |
| VDD7050 | 749173670626 | 1.15 | 11in x 8.5in x 1.5in | 6804.21.0000 | Korea |
| VDD705H | 749173670633 | 1.25 | 11in x 8.5in x 1.5in | 6804.21.0000 | Korea |
| VDD7080 | 749173670640 | 1.15 | 11in x 8.5in x 1.5in | 6804.21.0000 | Korea |
| VDD708H | 749173670657 | 1.25 | 11in x 8.5in x 1.5in | 6804.21.0000 | Korea |
Frequently Asked Questions
How long does Vextra last compare with other abrasive products?
It depends on the application and the product as well as your definition of the end of life on a conventional abrasive since they don’t retain tool dimensions. General indication of life span is up to 50 to 60 times of the conventional abrasives.
Can I use it with water to eliminate dust?
Yes, you can use Vextra Flat Diamond Grinding Disc with water to keep dust down.
How do we eliminate dust during the application?
Alpha® offers the Ecoguard G which will retrofit on most industrial grade 4.5” and 5” grinders. You can use the HEPA vacuum in conjunction with Vextra Flat Diamond Grinding Disc and Ecoguard to enjoy a virtually dust-free grinding application. Please check the material when you use a vacuum because some metal alloy powders are combustible.
Why doesn’t Alpha® offer the square arbor for Ecogrinder?
We can provide the square arbor suitable for Ecogrinder upon request.
What kind of tool can I use with Vextra Flat Diamond Grinding Disc?
You can use Vextra Flat Diamond Grinding Disc on High-Speed Angle Grinder, Sander and Polisher. The original flange & lock nut with the wrench provided work well or you can simply get Vextra Flat Diamond Grinding Disc with disposable zinc hub with 5/8”-11 female thread so that you can spin on and off using the spindle lock.
