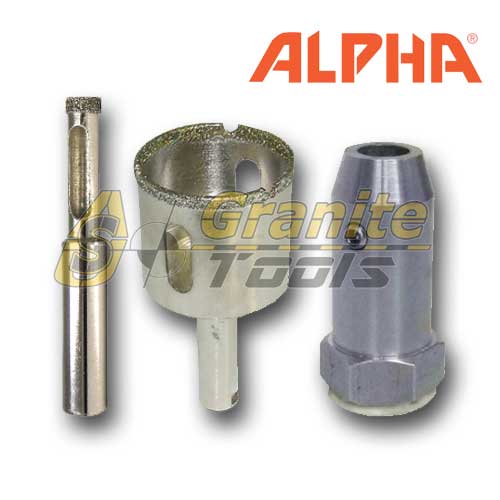

Alpha Drill Bits & Grinder Adapter

From: $15.00 From: $12.59

Alpha Drill Bits & Grinder Adapter. Premium Bit for Drilling Anchor Holes. Alpha introduces the Electroplated Wet Diamond Drill Bits for drilling holes in tile and stone for pre-installation or post-installation placement. These bits work great on Marble, Granite, Engineered Stone, Ceramic, Porcelain and Glass Tile & panels

Clear

Description

Alpha Drill Bits & Grinder Adapter

Alpha Drill Bits & Grinder Adapter. Premium Bit for Drilling Anchor Holes. Alpha introduces the Electroplated Wet Diamond Drill Bits for drilling holes in tile and stone for pre-installation or post-installation placement. Alpha Drill Bits & Grinder Adapter work great on Marble, Granite, Engineered Stone, Ceramic, Porcelain and Glass Tile & panels. They can be used on a standard 3/8” or larger drill but also fit on water-fed polishers with 5/8”-11 spindles using the Drill bit Adapter. Available in 3/16”, 1/4”, 5/16”, 3/8”, 1/2”, 1-3/8” & 1-1/2” sizes, are ideal for drilling holes for Anchors for bathroom fixtures, faucet and plumbing pipes. Electroplated drill bits are a must–have for the tile installer’s tool box.

Core drill bits have a hollow center and cut a circle in the material to create a hole. This results in a hole the size of the bit and a smaller “plug” or “core” which comes from the center.

Among the main features of Alpha Drill Bits & Grinder Adapter, we find:

  • Premium electroplated bits for drilling fastening holes, comer holes for cut-outs, pipe & faucet holes. Cut clean, smooth holes.
  • Alpha Drill Bits & Grinder Adapter are for Wet use only.
  • Alpha Drill Bits & Grinder Adapter can be used on Granite, Ceramic, Marble, Porcelain and Glass surfaces
Diamond drill bits are easy to use, however, there are many special techniques which are different from standard steel-bit drilling.  Diamond drill bit usage can also vary depending upon the type and the specific manufacturer.
Recommended Drill Speeds

DiamondSure – Bonded BitsRecommended Drill Speed (rpm)
Material         Bit Size –>1/2″1″2″3″4″
 Fiberglass1200700350250175
 Glass, Ceramic & China800500250160125
 Limestone & Marble Stone600450225130100
 Ceramic Wall Tile600450225130100
 Porcelain Wall Tile50037518012590
 Porcelain Floor Tile50037518012590
 Granite Stone40030015010075

(Not for use on Concrete or for depths beyond about 1/2″)

SPEED KILLS: Reduced drill speeds, low drill pressure and increased use of water lubrication will extend drill bit life considerably.
.
Because diamond drill bits are used to drill in extremely hard materials, it is very important to use proper drill pressure to keep from overheating the bit.  Excessive pressure is merely converted to heat energy and can burn up a bit very quickly.
.
Recommended Drill Head Pressure

MaterialDrill Head Pressure *
 Fiberglass10 to 15 lbs.
 Limestone & Marble Stone12 to 18 lbs.
 Glass, Ceramic & Porcelain China12 to 18 lbs.
 Ceramic/Porcelain Wall Tile15 to 20 lbs.
 Porcelain Floor Tile18 to 30 lbs.
 Granite Stone18 to 30 lbs.

WARNING: Drill press arm leverages hand pressure by a factor of about 6 to 8.  So 2 lbs. of hand pressure on the drill press arm will apply about 14 lbs of pressure to the drill head

Additional information

Weight0.2 lbs
Dimensions1 × 2 × 1 in
Select Dril Bit Size or Adapter

Alpha Drill Bit 1-1/2", Alpha Drill Bit 1-3/8″, Alpha Drill Bit 1/2", Alpha Drill Bit 1/4", Alpha Drill Bit 3/16", Alpha Drill Bit 3/8", Alpha Drill Bit 5/16", Alpha Grinder Adapter 3/8" to 5/8"-11

Reviews

There are no reviews yet.

Be the first to review “Alpha Drill Bits & Grinder Adapter”

SKUDescription
ABV01414Anchor Bit Vacuum Brazed 1/4", 1/4" Shank
