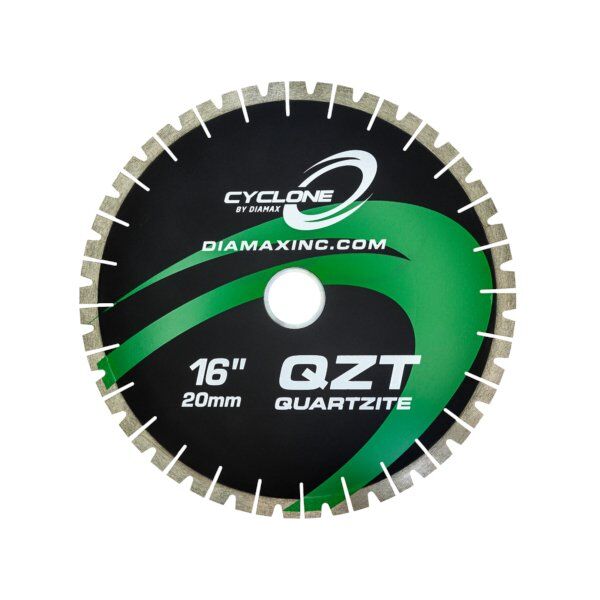

Cyclone QZT Quartzite Blade
The Cyclone QZT Quartzite Blade is for use with a Bridge Saw, and only one pass is needed! See speed and feed rates below for single-pass cutting. Segment designed to keep a square edge during miter cuts.
Cyclone is the premium line of Diamax products, a well-established company in the USA since 1996. It has gained them a superb reputation among the stone fabrication community, with a return ratio of less than 1%. You might also want to check our other Bridge Saw Blades or our extensive line of Diamond Abrasive Blades, where you might find blades for any job to need to complete.
Blade main Features
Among the many features of this Blade, we find:
- All new bond built for speed & reliability!

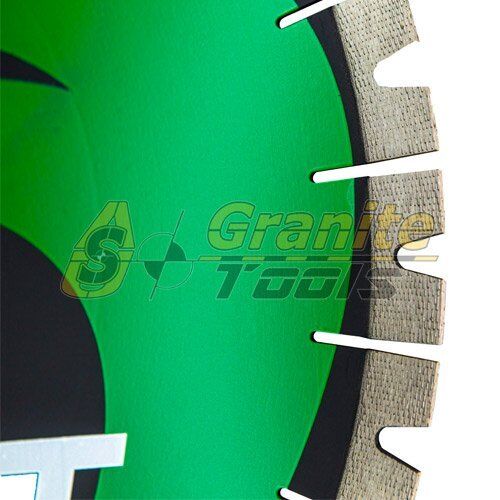

- Segment designed to keep a square edge during miter cuts.
- Best blade in the industry to reduce production bottlenecks with fast cuts and clean edges.
- Only one pass is needed! See speed and feed rates below for single-pass cutting.
Cyclone QZT Quartzite Blade Technical Specifications
| SKU | Size | Segment | Arbor | RPM | *Straight | *Miter |
|---|---|---|---|---|---|---|
| SCQ21420 | 14″ | 20mm x 3.3mm | 50/60 mm | 1,900 | 72″/min | 42″/min |
| SCQ21620 | 16″ | 20mm x 3.3mm | 50/60 mm | 1,800 | 72″/min | 42″/min |
| SCQ21820 | 18″ | 20mm x 3.3mm | 50/60 mm | 1,700 | 72″/min | 42″/min |
*Suggested feed rates. Feed rates based on single pass in quartzite.
