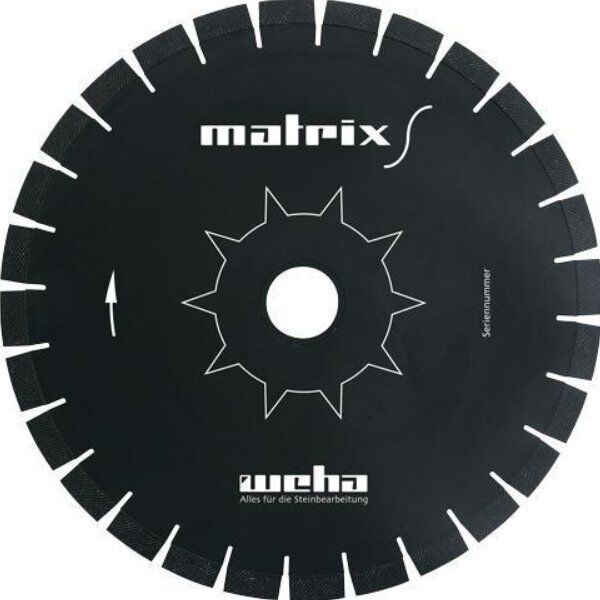

Weha Matrix S Diagonal Bridge Saw Blade

$199.99$354.99

Weha Matrix S Diagonal Bridge Saw Blade is a premium diagonal layered diamond blade designed to cut fast, clean and quiet. The Matrix Diamond Bridge Saw blades are for granite, engineered stone, quartz materials. Also great on marbles.

Clear
SKU: N/A Category:

Weha Matrix S Diagonal Bridge Saw Blade

Weha Matrix S Diagonal Bridge Saw Blade is a premium diagonal layered diamond blade designed to cut fast, clean and quiet. The Matrix Diamond Bridge Saw blades are for granite, engineered stone, quartz materials. Also great on marbles.

You might also want to take a look at our other Bridge Saw Blades by Weha.

Product Features

The main features of Matrix S Diagonal Bridge Saw Blade are:

  • This unique layered diamond is performing like no other blade on the market.
  • Super quiet.
  • Up to 18′ per minute feed rate.
  • Outstanding life.
  • Performing fantastic on both Bridge saws as well as CNC Sawjet machines.

The Matrix S runs incredibly well on Sawjets. These Blades are cutting at 10 ft per minute and faster, with super clean cuts and great life. These blades work well on Park Industries Fusion CNC Sawjet, Baca Robo Sawjet, both Northwood Robotic Sawjet, and the CNC Sawjet.

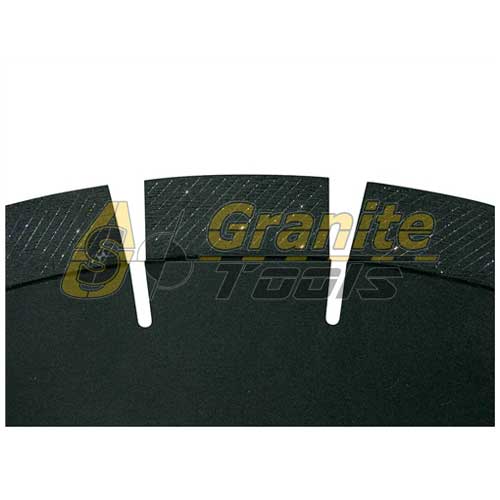

The Matrix S Diagonal Bridge Saw Blade operating parameters on a CNC Sawjet will be between 1700-1800 RPM with feed rates between 12′-18′ per minute, depending on the material. Life will be very good and the cuts will be spot-on accurate and clean. Unlike other layered blades, the Matrix S 18mm height Bridge Saw Blade diamonds are layered at a diagonal to the core. This allows 100% continuous cutting with diamonds. Other layered diamonds have a layer of diamond and a layer of filler, then another layer of diamond. Because of the continuous layer of diagonal diamonds, the Weha Matrix S Diagonal Bridge Saw Blade will last as long as other 20-25mm height blades.

Matrix S Diagonal Bridge Saw Blade CNC Sawjet and Bridge Saw Diamond Blade Parameters

PropertySawjetBridge Saw
RPM1,700 – 1,8001,700 – 1,800
Feed Rate12′-18′ per minute depending on thickness and material8′-18′ per minute depending on thickness, material, the horsepower of the saw

Demonstration videos

Watch the Blade Features, and it on a Park Bridge Saw & on a Northwood CNC machine


WeightN/A
DimensionsN/A
Brand

Weha

Select Size

12" Diameter, 14" Diameter, 16" Diameter, 18" Diameter
