Cyclone S CNC Thin Wall Core Bits

$95.87$107.91

The Cyclone S CNC Thin Wall Core Bits thin segments minimize the risk of blow-outs. They sport a feed rate of about 1″ – 2″ / minute

CAN BE USED ON

MATERIALS

USE

CNC MachineEngineered Stone, GraniteWet Only
Clear

Frequently Bought Together

Cyclone Dry/Wet Core Bit + Cyclone Contour Blade + Cyclone Pneumatic Wet Polisher MVP + Cyclone Granite Turbo Blade + Makita Wet Polisher Model PW5001C
Price for all: $966.23

Cyclone S CNC Thin Wall Core Bits

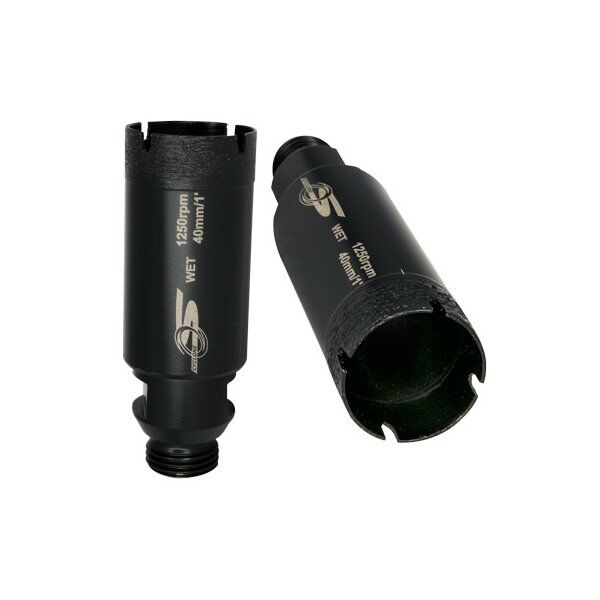

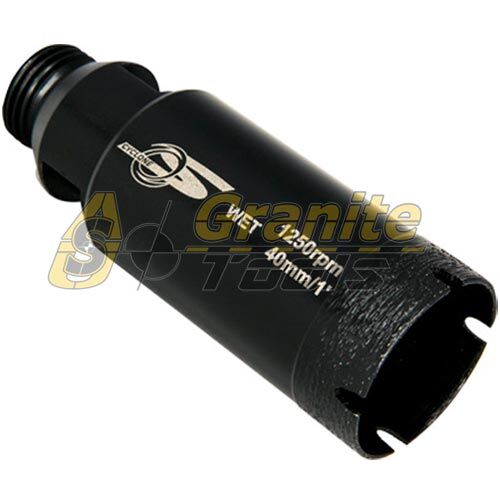

The Cyclone S CNC Thin Wall Core Bits thin segments minimize the risk of blow-outs. These bits are perfect for chip-free drilling through granite countertops, also good for working with Engineered Stone. They sport a feed rate of about 1″ – 2″ / minute and a usable length of 2 ½”. For Wet use only at a maximum of 1,250 revolutions per minute.

Cyclone is the premium line of Diamax products, a well-established company in the USA since 1996, which has gained them a superb reputation among the stone fabrication community, with a return ratio of less than 1%. You might also want to check our other CNC Tools where you will find a lot of premium tools for your job with CNC equipment and Auto Edge Machines.

Core Bit main Features

Among these Bits features, we find:

  • Core nice clean holes
  • Thin segments minimize the risk of blow-outs
  • They sport a feed rate of about 1″ – 2″ / minute
  • Wet use only
  • Ideal for working with Granite and Engineered Stone
  • 1,250 maximum RPM
  • Perfect for chip-free drilling

CNC Thin Bits Technical Specifications

SKUDIAMETERFITTINGUSABLE LENGTHMAX RPM
CDBHTW114 1 ¼” ½” gas male2 ½”1,250
CDBHTW138 1 ⅜”½” gas male2 ½”1,250
CDBHTW112 1 ½”½” gas male2 ½”1,250
Weight0.8 lbs
Dimensions5 × 2 × 2 in
Brand

Diamax

Select Size

1 ¼" Diameter, 1 ⅜" Diameter, 1 ½" Diameter, 2" Diameter
