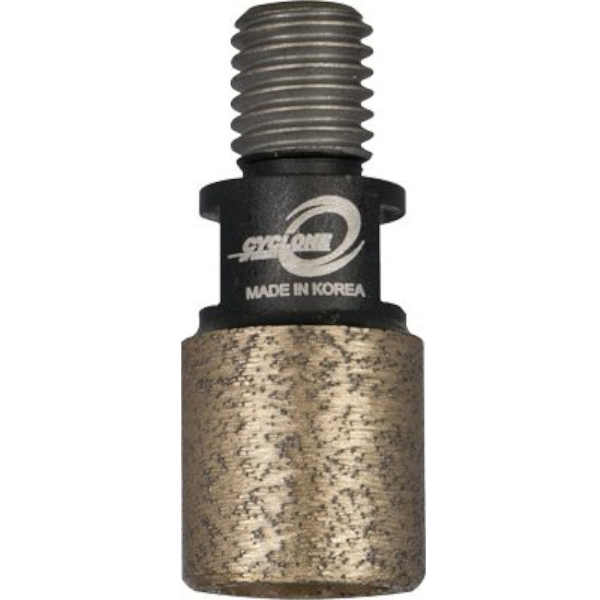

Cyclone Incremental Bits
Cyclone Incremental Bits are for use on sink cut-out machines. The tapered bits have M12 thread (½ gas male thread). The new Super Cyclone screw-on tip is taller and lasts longer for more cutouts with fewer glazing issues.
Cyclone is the premium line of Diamax products, a well-established company in the USA since 1996, which has gained them a superb reputation among the stone fabrication community, with a return ratio of less than 1%. You might also want to check our other CNC Tools where you will find a lot of premium tools for your job with CNC equipment and Auto Edge Machines.
Incremental Bit Features
Among these Bits features, we find:
- For use on sink cut-out machines
- Tapered bits have M12 thread (½ gas male thread)
- The New Super Cyclone screw-on tip is taller and lasts longer for more cutouts with fewer glazing issues
- Wet use only
Incremental Bit Technical Specifications
| SKU | SIZE | FITTING | BOND | MAX RPM | SUGGESTED FEED RATE |
|---|---|---|---|---|---|
| FBSTIP | 20mm Cyclone | M12 | Medium | 4,000 | 30″ – 40″ / PM |
| FBSTIP-S | 22mm Super Cyclone | M12 | Soft | 4,000 | 30″ – 40″ / PM |
| FBSTIP-T | Tapered 20mm Super Cyclone | M12 | Medium | 4,000 | 30″ – 40″ / PM |
| FBSTIP-RT | Reverse thread, 20mm Cyclone | M12 | Medium | 5,500 | 30″ – 40″ / PM |
Cyclone Incremental Bits Accessories
| SKU | DESCRIPTION | SHAFT LENGTH | FITTING |
|---|---|---|---|

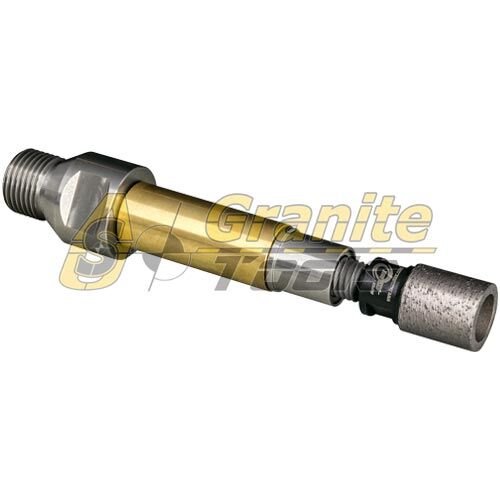

| FBSTIP-M* | Cyclone mandrel with sleeve | 70mm | M12 female – ½ gas male |
| FBSM-RT* | Reverse thread Super Cyclone mandrel | 70mm | M12 female – ½ gas male |
| FBSM35* | Super Cyclone Mandrel Thread (short) | 35mm | M12 female – ½ gas male |
| FBSM-RT25* | Reverse thread Super Cyclone mandrel (short) | 25mm | M12 female – ½ gas male |
*You will find these accessories as part of the Ultra Incremental Bit.
